Edwards E2M5 Rotary Vacuum Pump (3.9cfm)

Edwards E2M5 Rotary Vacuum Pump (3.9cfm)

Available quantity:1

orCall 1-514-464-6144

Description

The Edwards E2M5 dual stage rotary vane mechanical vacuum pump offers an excellent ultimate pumping speed and has superior vapor handling capabilities, while operating quietly. They are very reliable and have accessories to match any application. Applications include use with refrigeration dehydration, brake line evacuation, epoxy degassing, sterilization, mass spectrometry, vacuum ovens, lasers, backing combinations, thin film coating, vacuum distillation, freeze drying, space research and other vacuum processes. The Edwards E2M5 vacuum pump has a pumping speed displacement at 60Hz of 3.9 CFM and an ultimate pressure of 7.5 x 10 -4 Torr.

NOTE: Return policy / warranty does not cover misuse and/or exposure to contaminants.


** SEE LINKS TO BROCHURE AND MANUAL FOR MORE INFORMATION

Specifications

ManufacturerEdwards High Vacuum Intl
ModelE2M5
ConditionUsed
Serial Number20852
MPNDoes not apply
Condition DescriptionREBUILT - IN GOOD WORKING ORDER
Number of stagesDual Stage
Maximum flow rate3.9 cfm
Ultimate Pressure7.5 x 10 -4 Torr

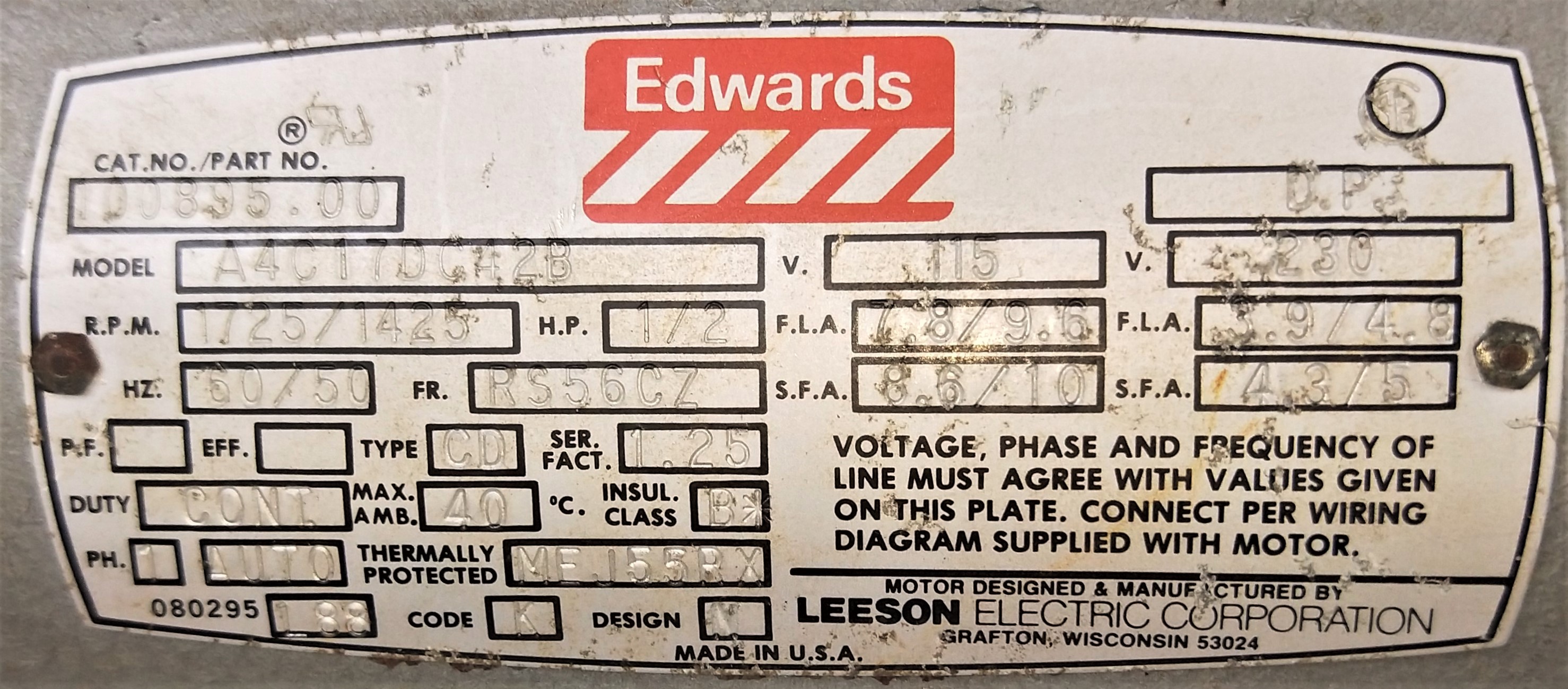

Electrical Requirements115/230V, 50/60hZ, 9.6/4.8A, 1 phase
Electrical Certification / ApprovalCSA
Dimensions20"L x 7"W x 11"H
Weight (lbs)51
Country/region of manufactureUnited Kingdom
Custom LabelJ1
