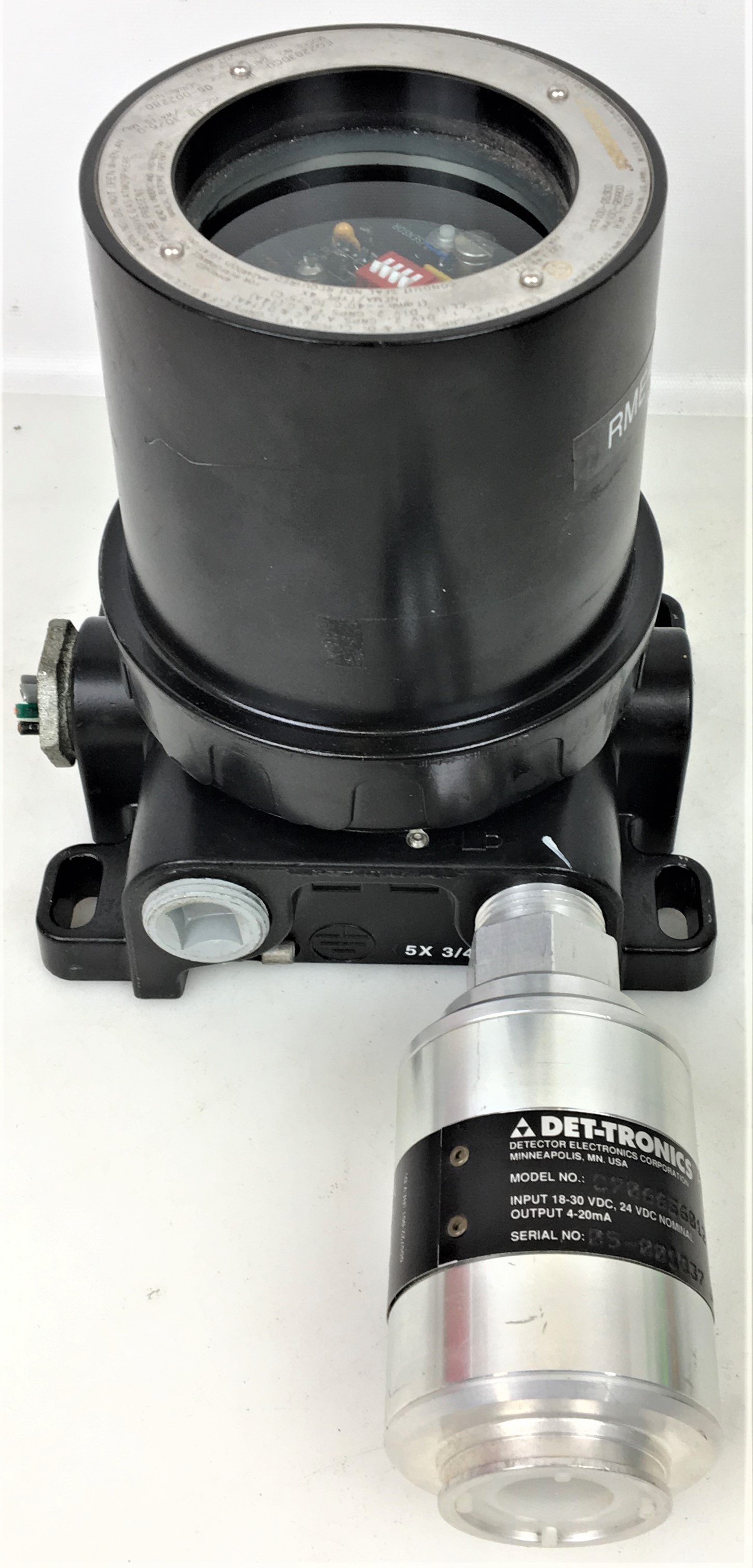

Det-Tronics Eagle Quantum EQ2203DCU Digital Communication Unit with CO Sensor
Det-Tronics Eagle Quantum EQ2203DCU Digital Communication Unit with CO Sensor
Available quantity:1
Description

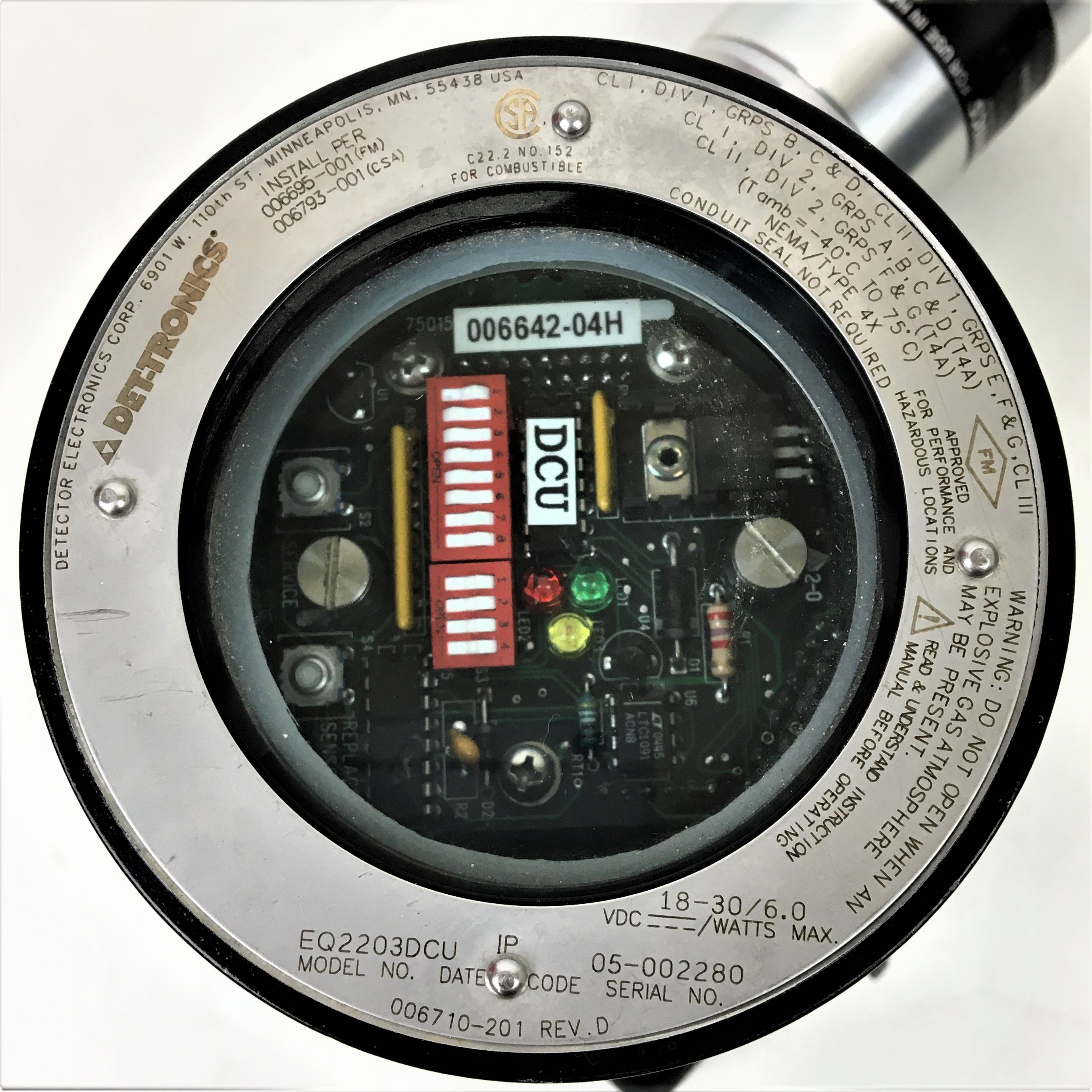

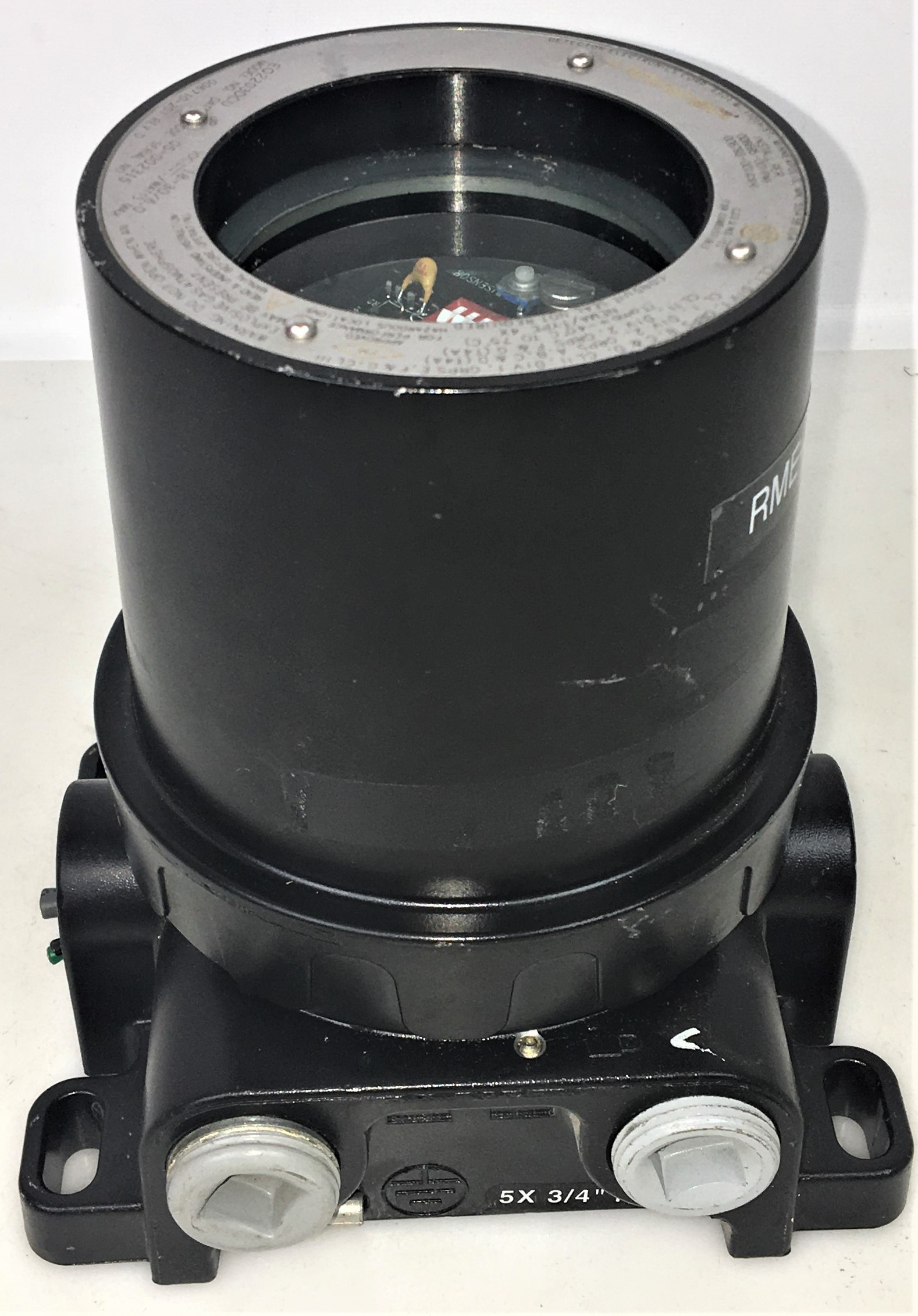

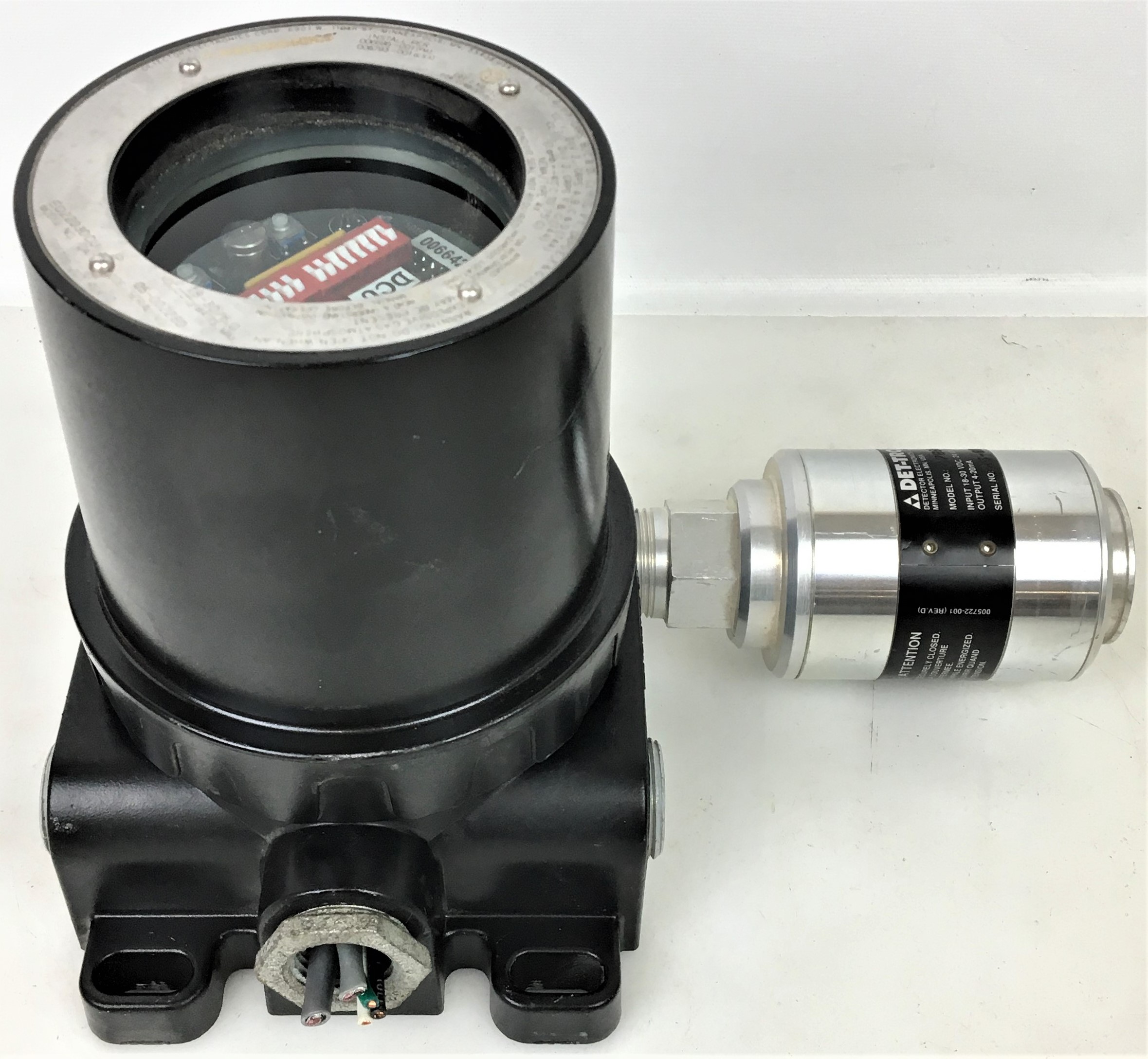

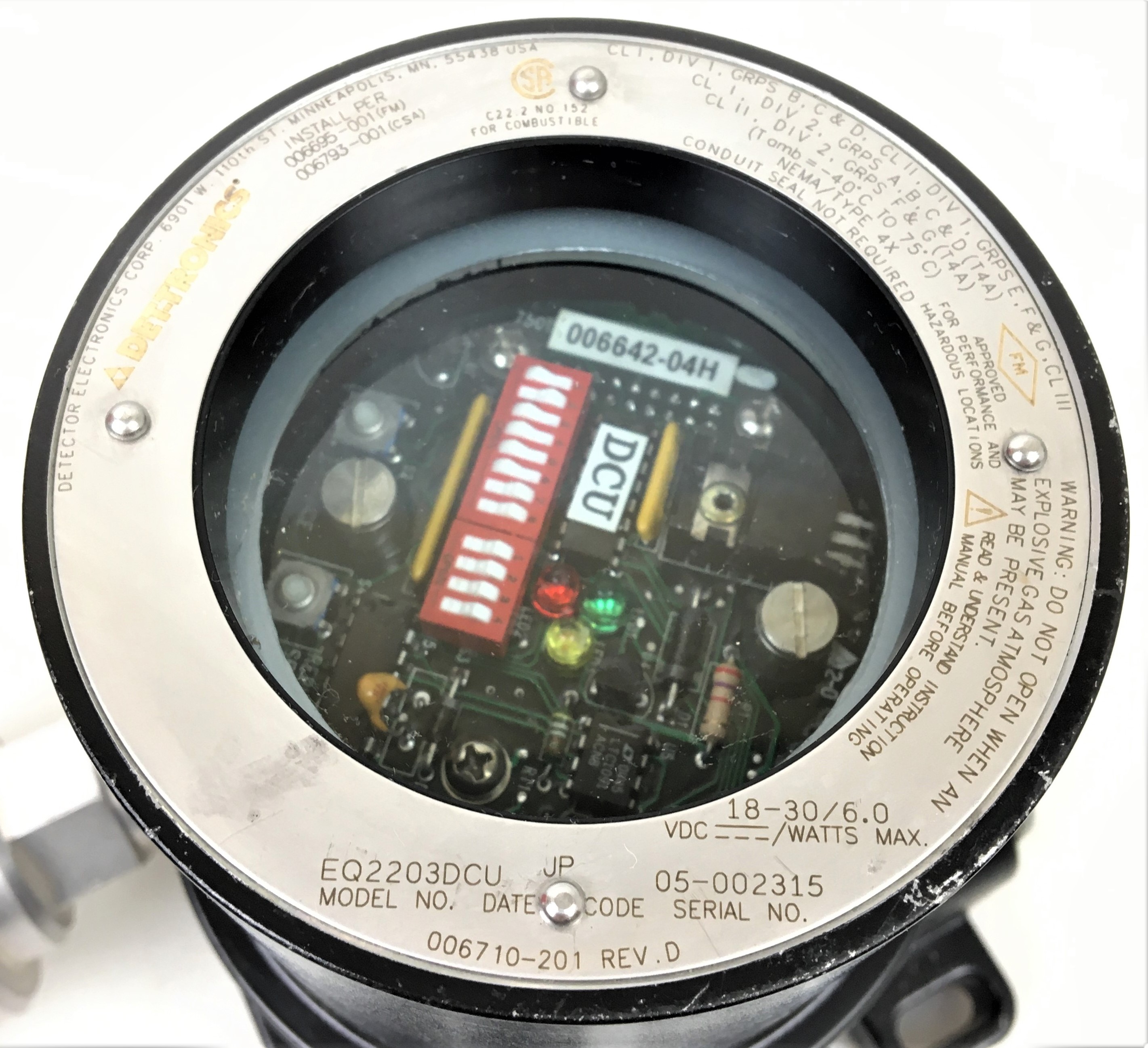

The Det-Tronics Eagle 2000 Digital Communication Unit (DCU) offers a convenient and economical means of obtaining addressable gas detection. The DCU digitizes a 4 to 20 ma analog signal from a sensor/transmitter and transmits the value as a process variable to the Eagle communication gateway. All circuitry is housed in a single explosion-proof/watertight enclosure for location at the area of detection. The DCU is provided in various configurations, depending on the type of gas to be detected. All DCUs contain a communication module and a terminal wiring board. DCUs for detecting combustible gas also contain a transmitter board. The Eagle DCU is available for use with Det-Tronics' combustible gas, oxygen and toxic gas sensor/transmitters. The DCU can also be used with a wide variety of “third party” 4 to 20 ma analog instruments.

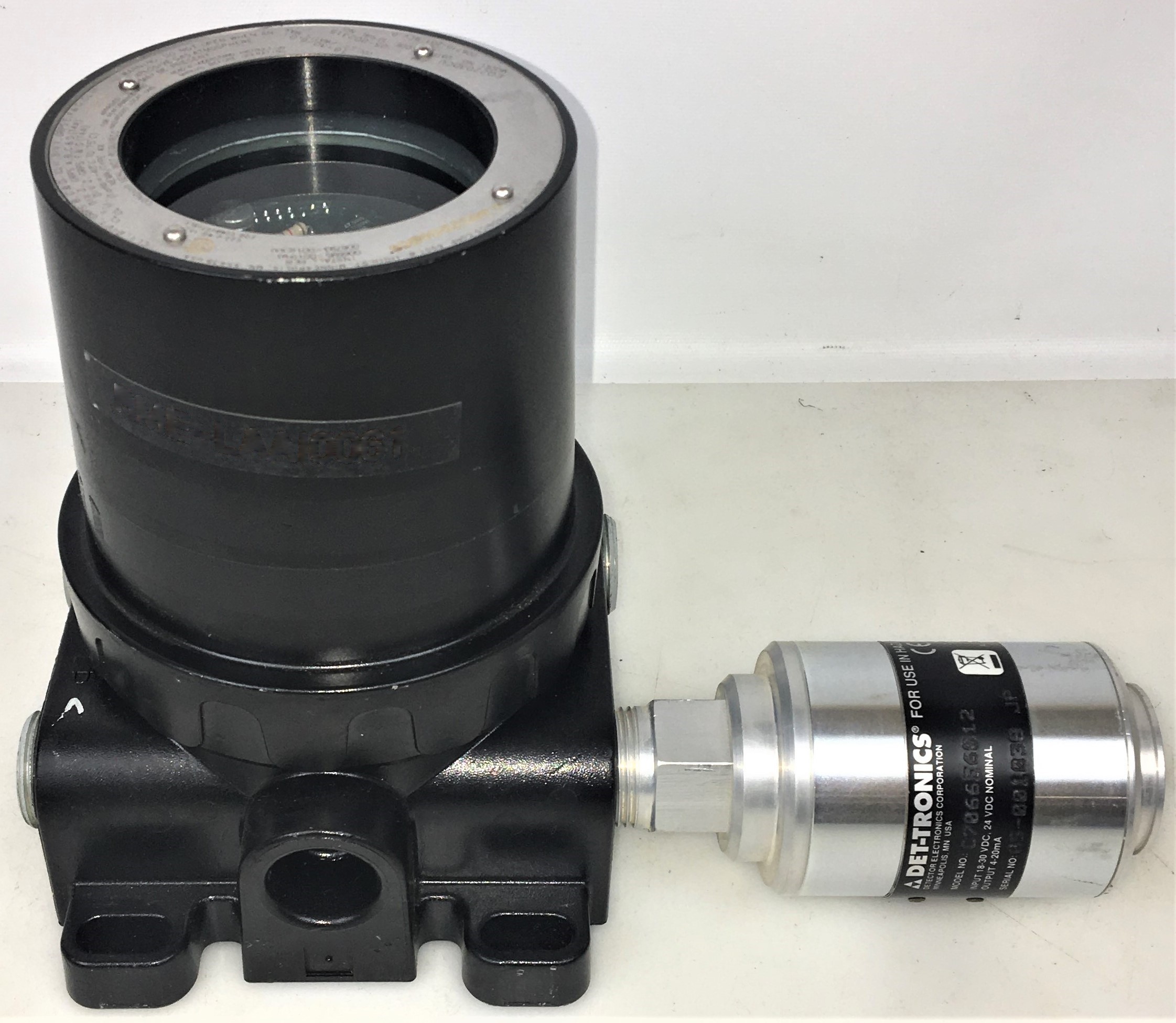

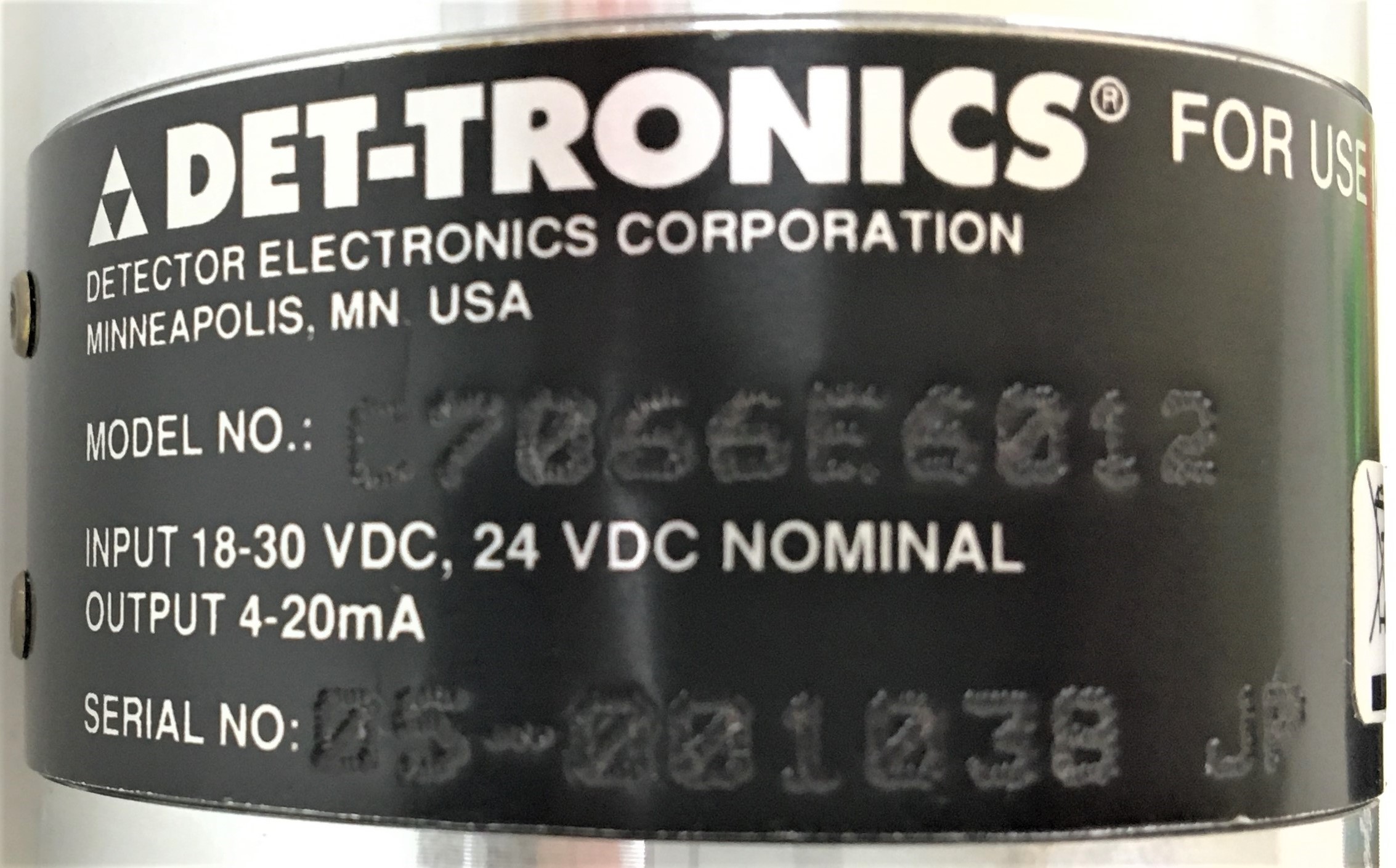

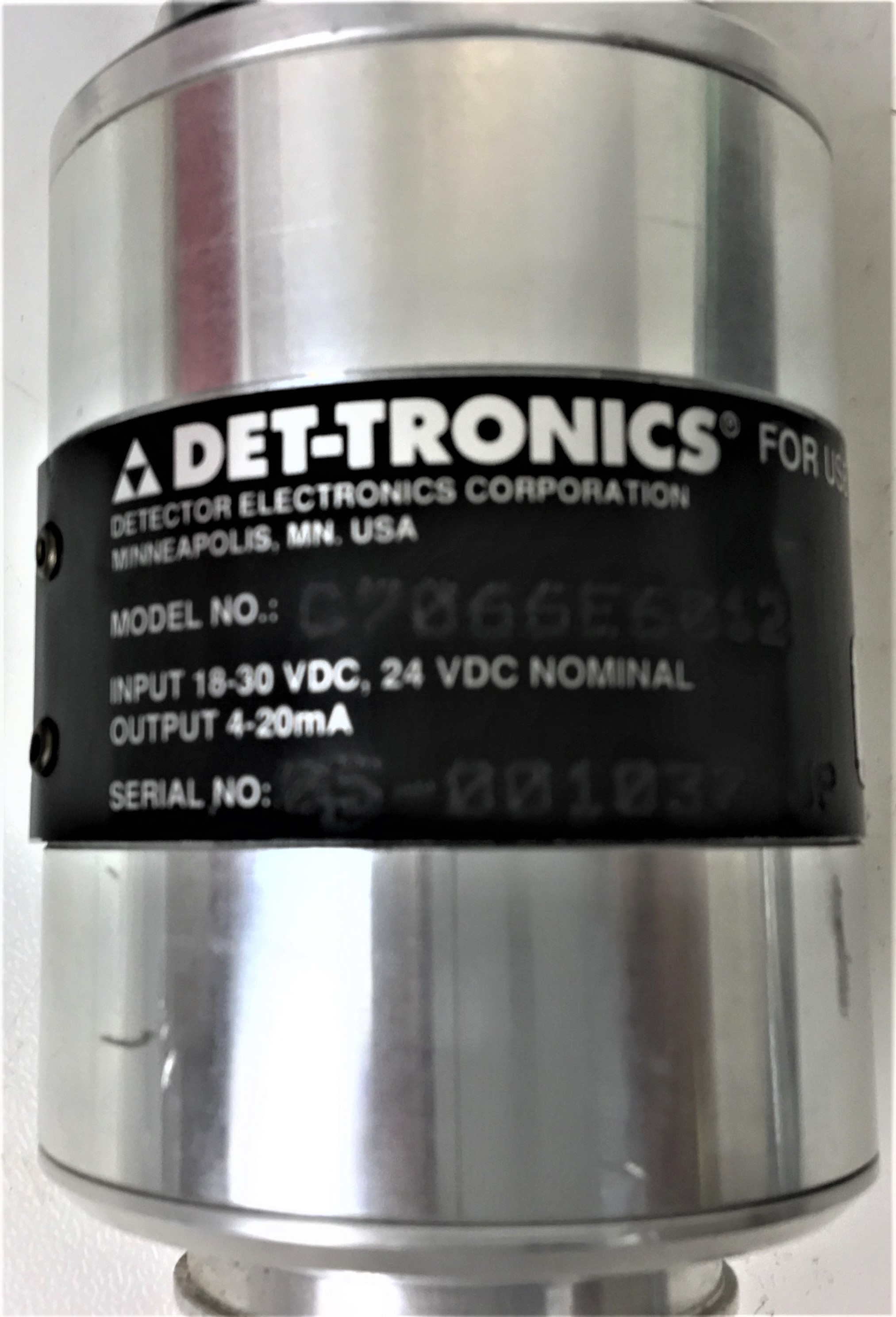

This unit includes the C7066E6012 Carbon Monoxide (CO) sensor. The detector is designed for use with Det-Tronics FlexVu UD10 Universal Display unit, model U9500B transmitter, R8471B controller, or other devices capable of monitoring a 4 to 20 mA dc input. The C7066E is FM-approved and CSA Certified for use in hazardous environments.
** Price is for one unit.
** SEE LINKS TO MANUALS FOR MORE INFORMATION
Specifications
Manufacturer | Detector Electronics Corp |
Model | Eagle Quantum |
Condition | Used |

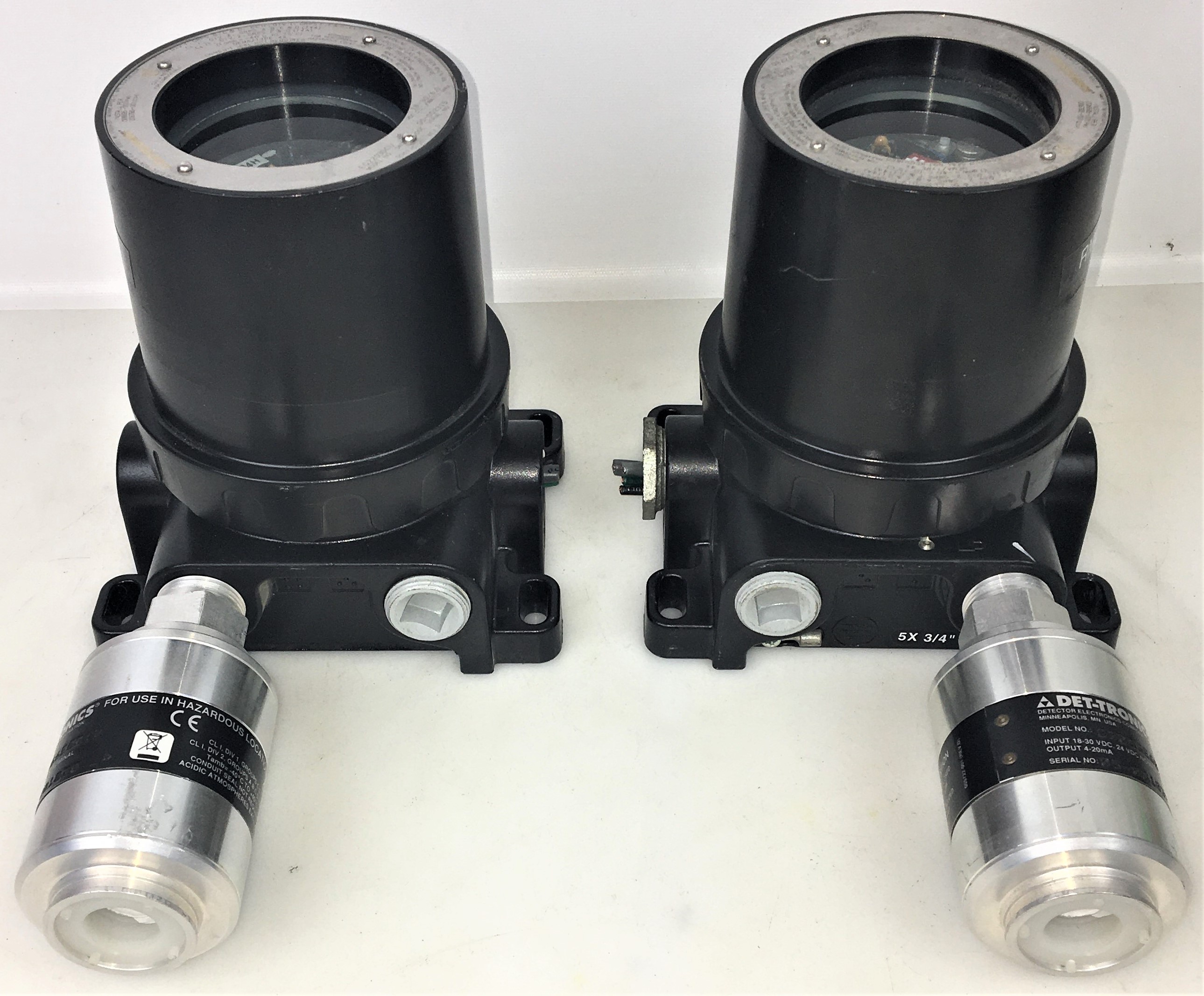

Serial Number | 05-002280 (25-001037 JP) and 05-002315 (05-001038 JP) |
MPN | EQ2203DCU and C7066E6012 |
Condition Description | IN EXCELLENT CONDITION - APPEARS UN-USED |
Gas(es) detected | Carbon Monoxide |
Electrical Rating | 18-30VDC, 6.0W |
Electrical Certification / Approval | CSA |
Dimensions | 10"W x 6"D x 7"H |
Weight (lbs) | 7 |
Country/region of manufacture | United States |
Custom Label | G1 |
