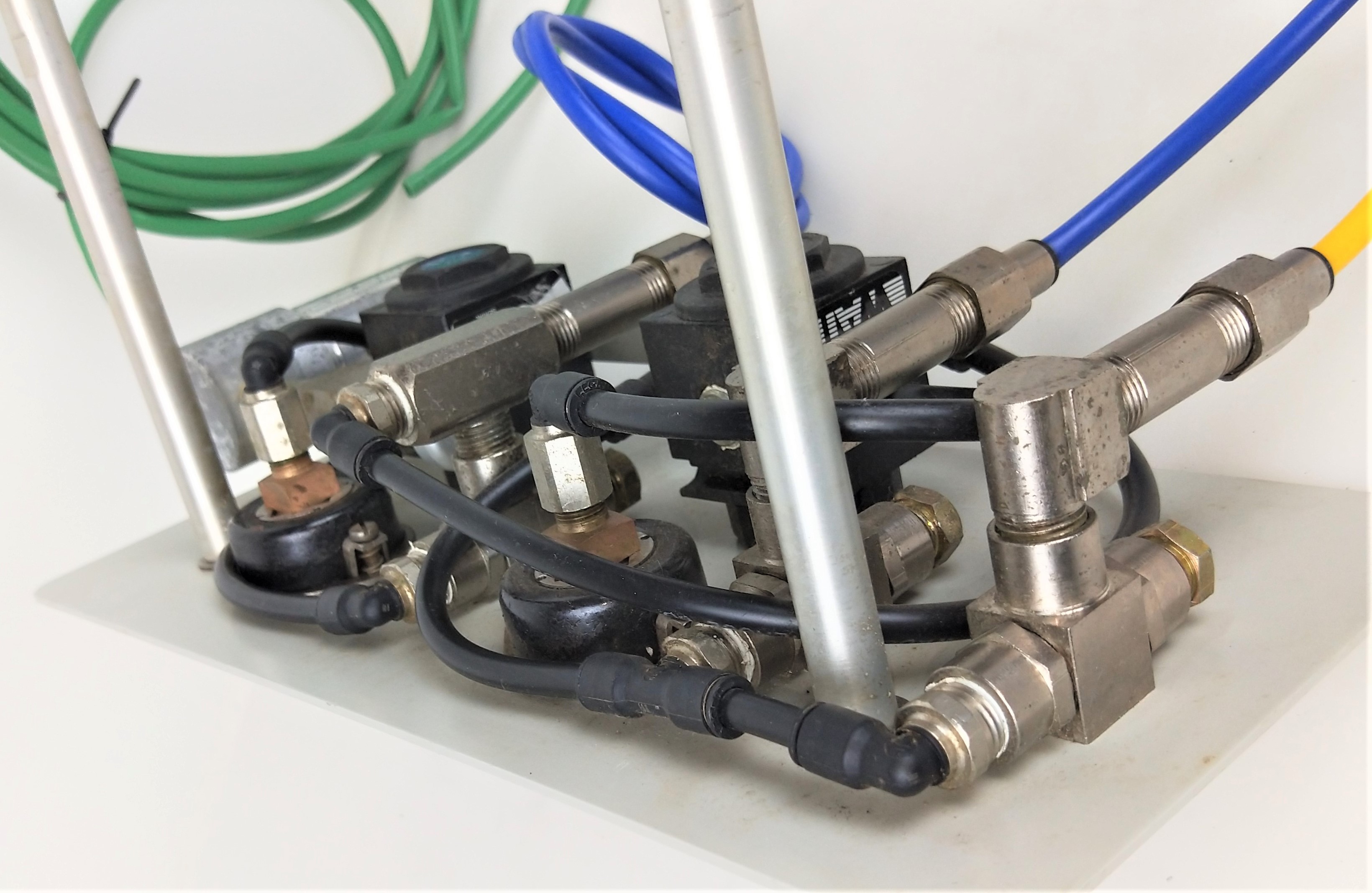

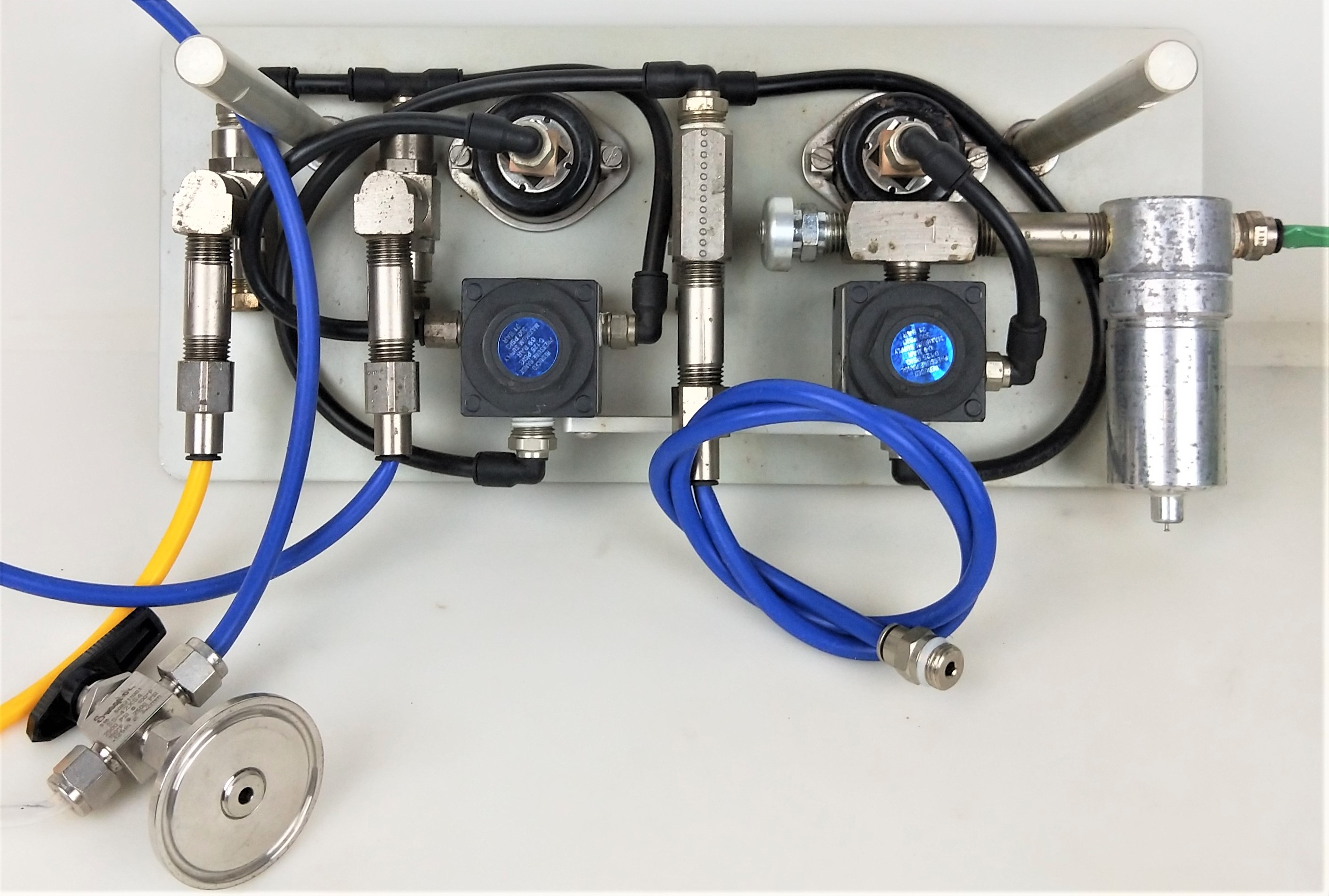

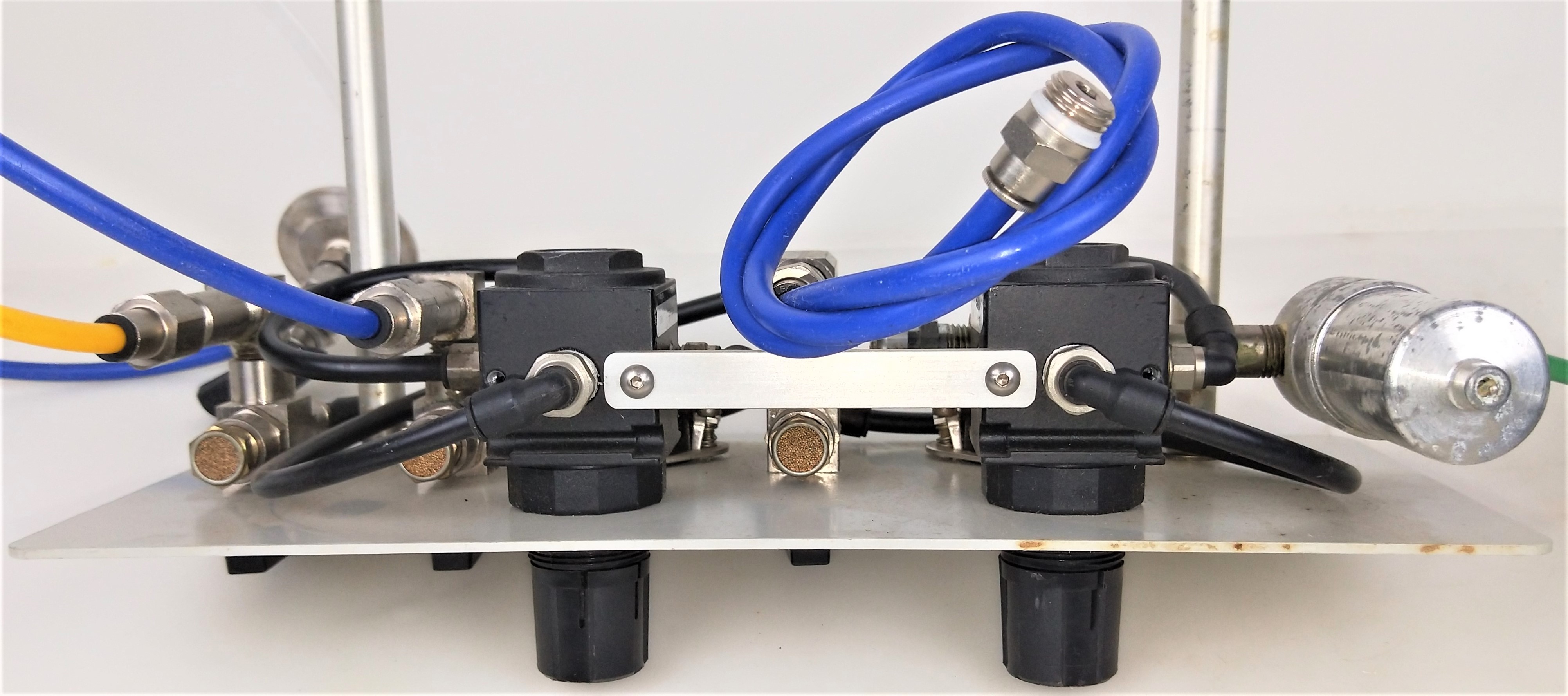

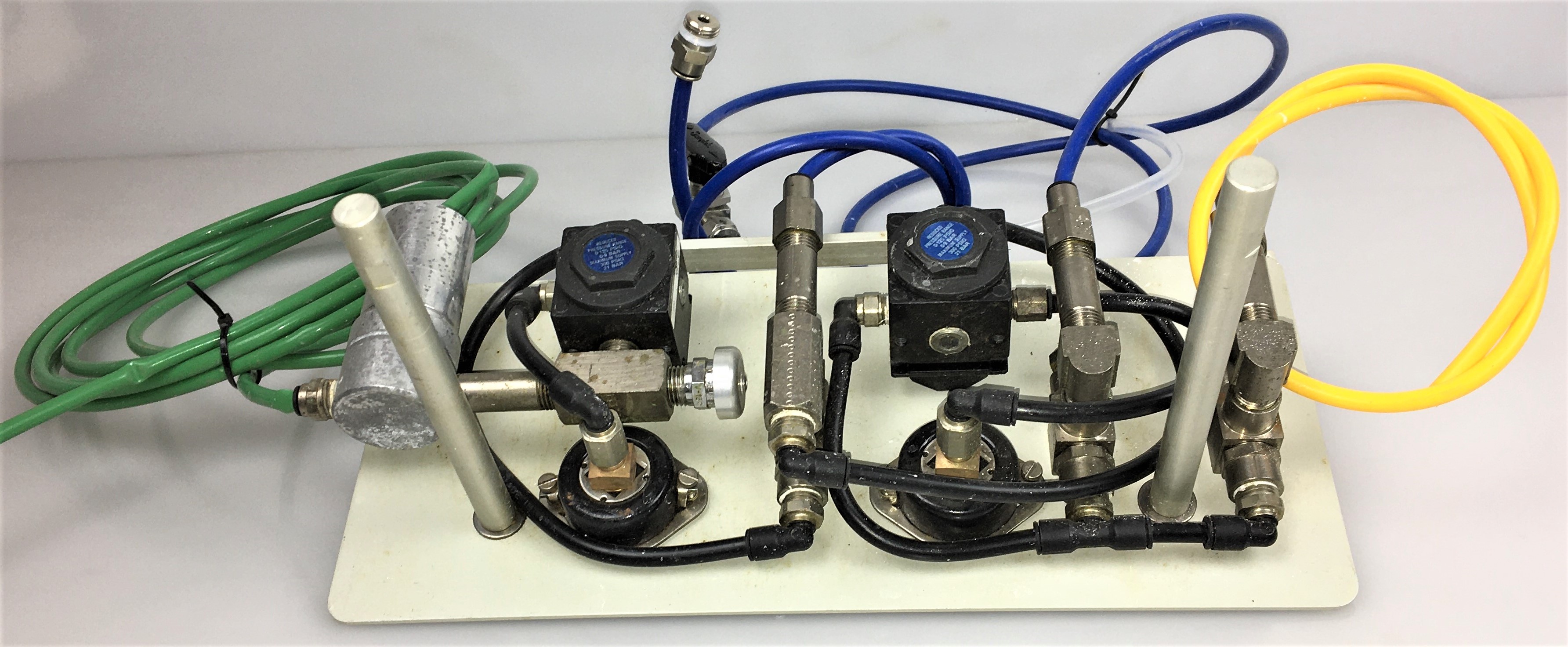

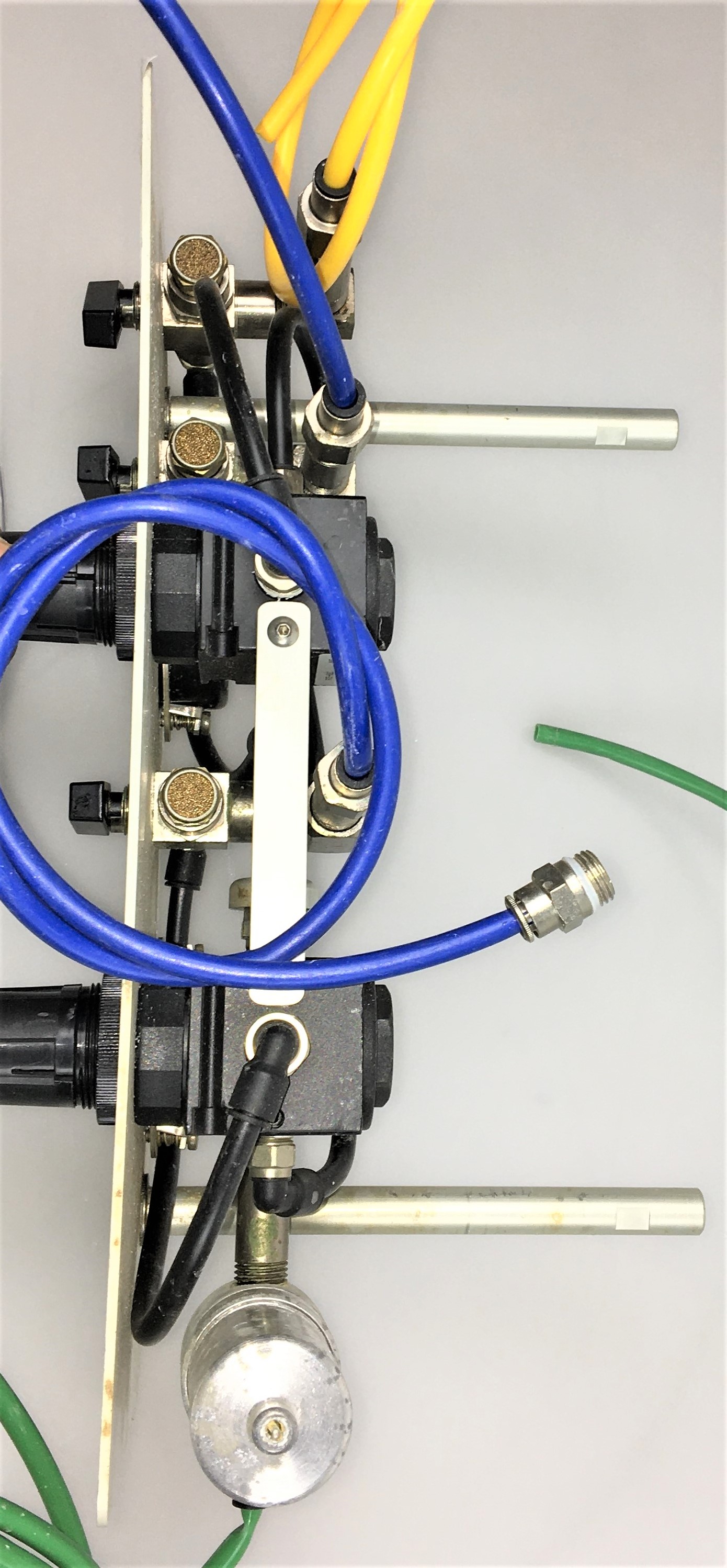

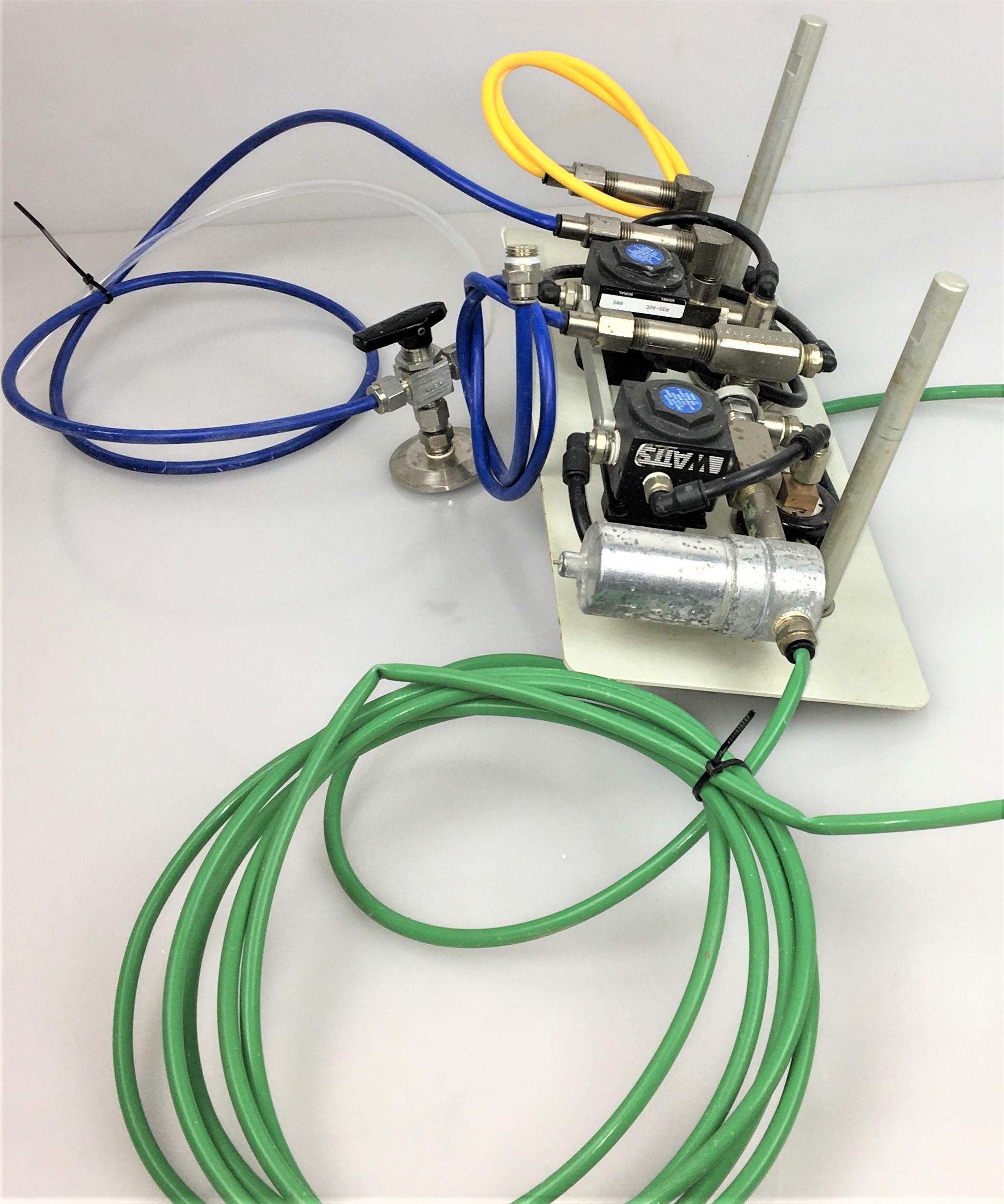

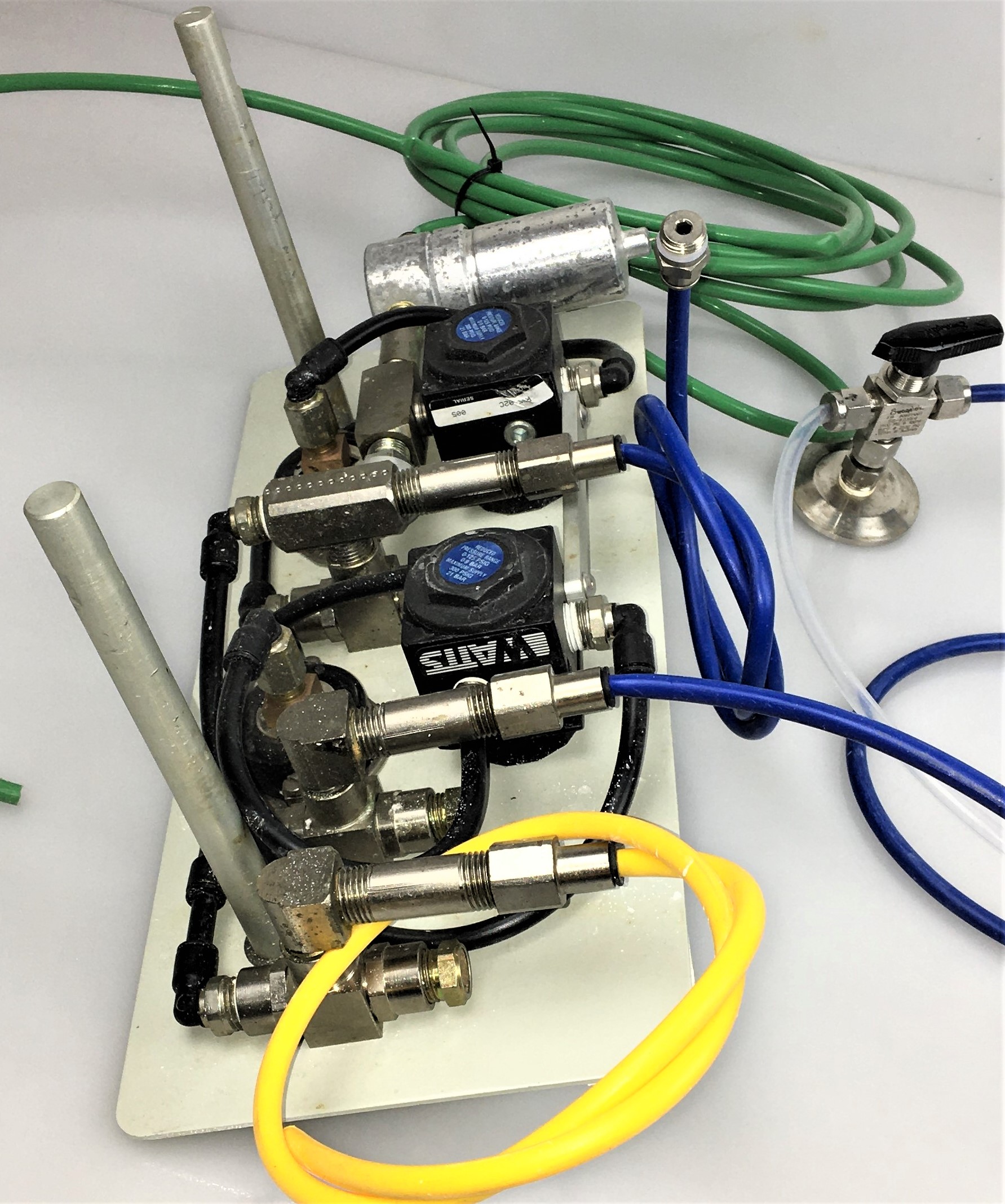

Biotage AM-190 Flash Chromatography Air Manifold

The Biotage Flash AM-190 air manifold regulates the radial compression pressure and the flow of sample and solvent into the radial compression module. The manifold is easily attached to standard fume hood mounting bars using the two mounting rods supplied with the manifold. The AM-190 manifold comes equipped with the following features:

• An inlet for pressurized inert gas, with an instant-tight fitting for attaching tubing.
• A safety relief valve that activates at pressures in excess of 150 psi (10.3 bar).

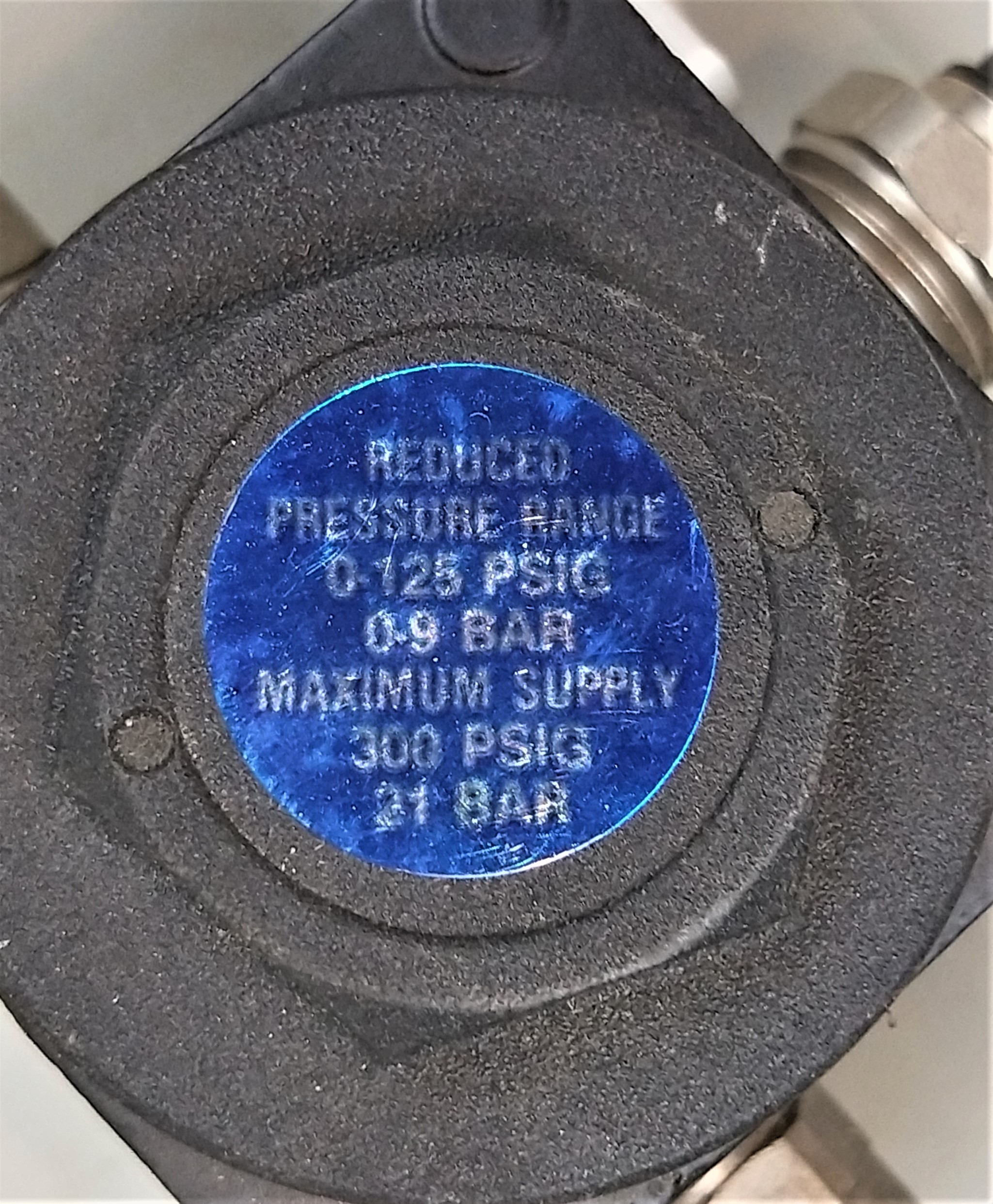

• A locking pressure regulator, with a water trap, for increasing or decreasing the inert gas pressure to the radial compression module.
• A pressure gauge for monitoring the inert gas pressure delivered to the radial compression module.
• A valve for turning the flow of compressed inert gas to the radial compression module on or off, with an instant-tight fitting for attaching tubing.
• A locking pressure regulator for increasing or decreasing the inert gas pressure to the solvent reservoir and sample injection module (SIM).
• A pressure gauge for monitoring the inert gas pressure delivered to the solvent reservoir and SIM.
• A valve for turning the flow of compressed inert gas to the SIM on or off (see Table 2), with an instanttight fitting for attaching tubing.
• A valve for turning the flow of compressed inert gas to the solvent reservoir on or off, with an instant-tight fitting for attaching tubing.

** SEE LINK TO MANUAL (PG 5) FOR MORE INFORMATION
