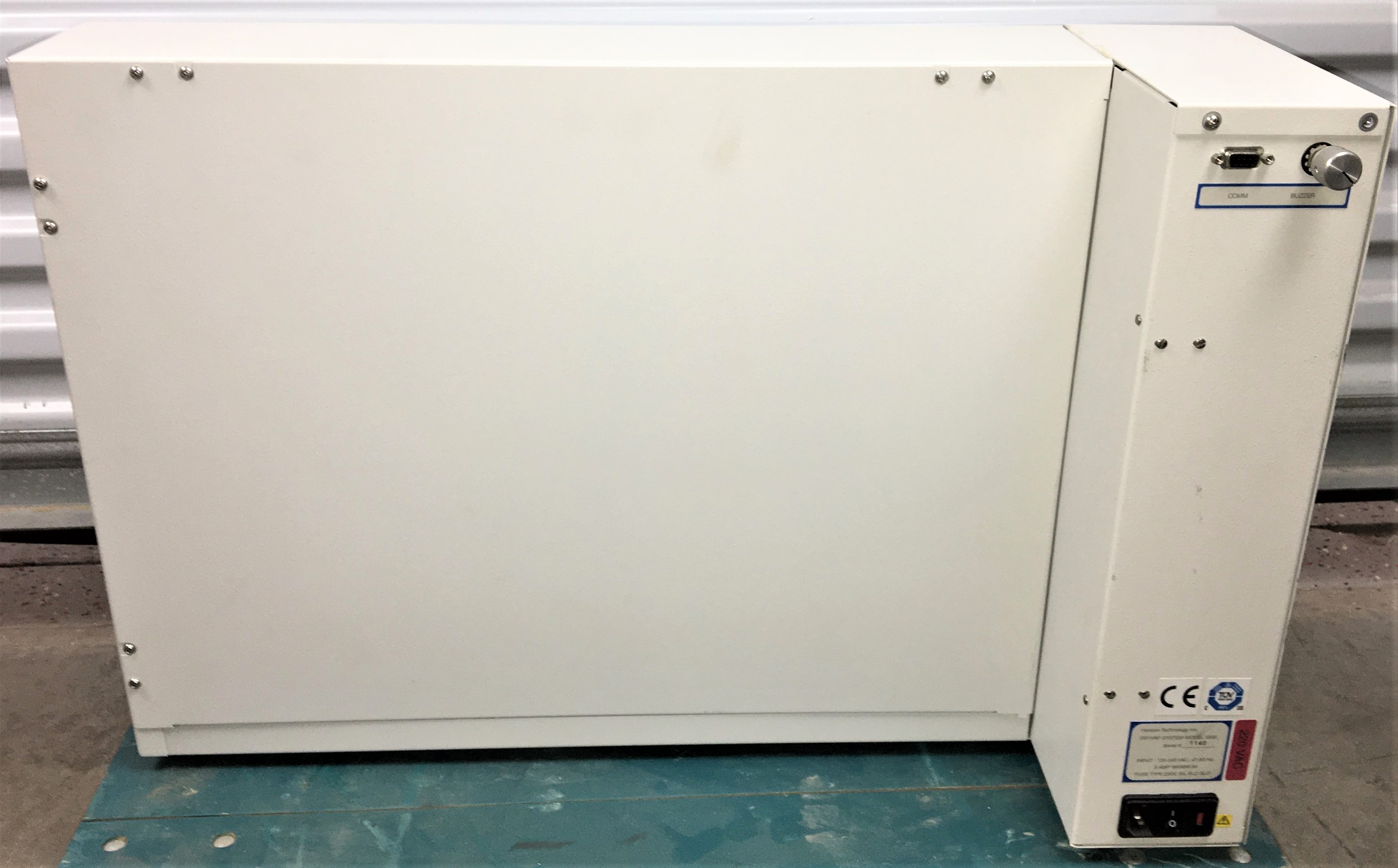

Horizon DryVap 5000 In-Line Drying and Concentration System with Spares

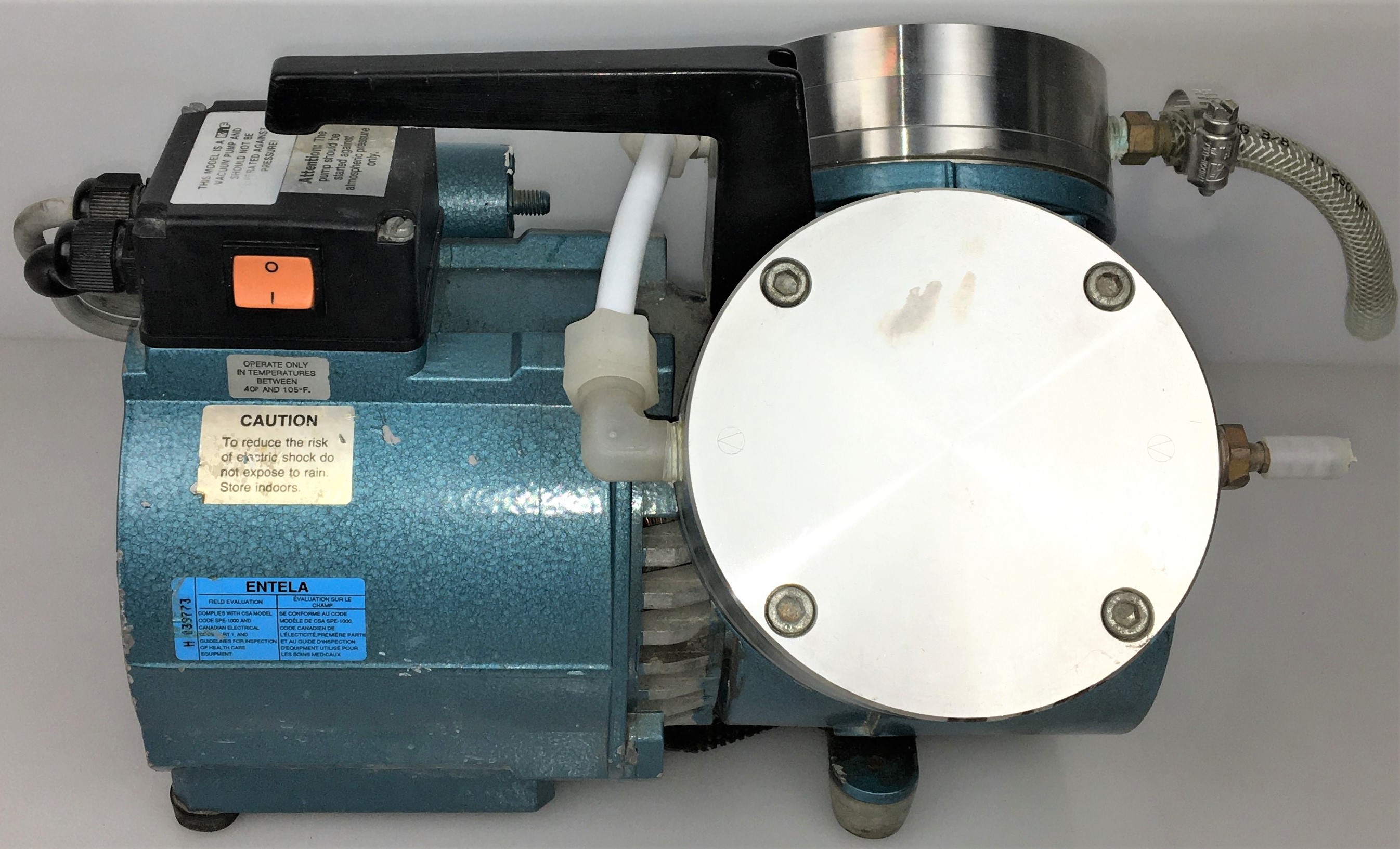

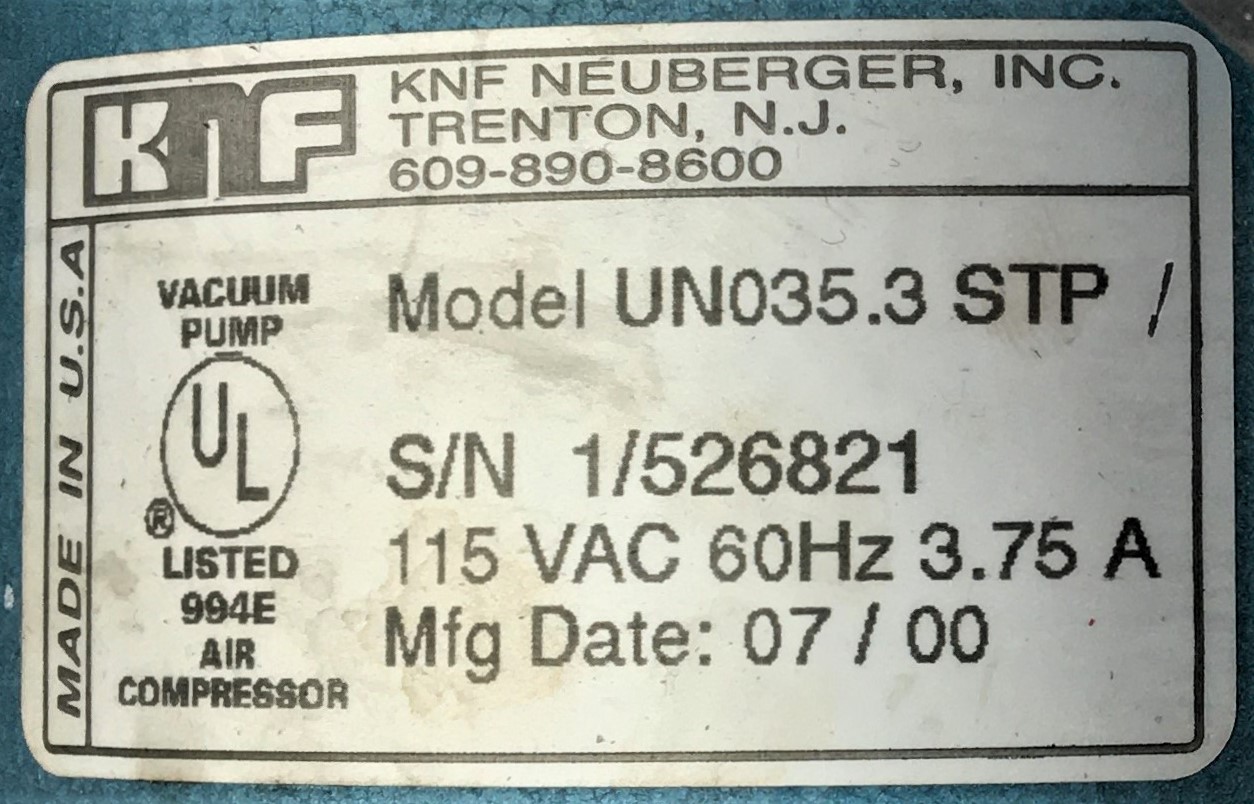

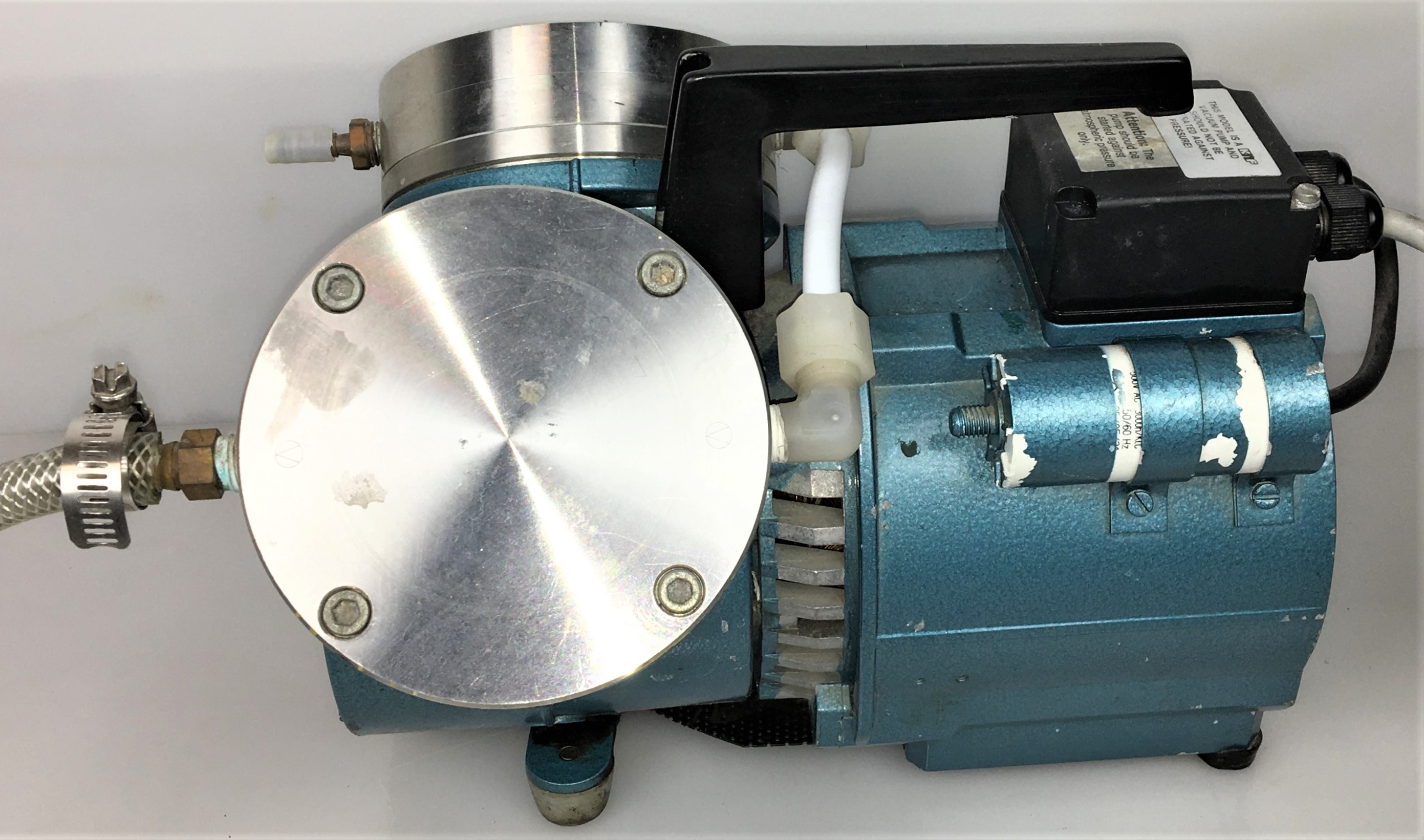

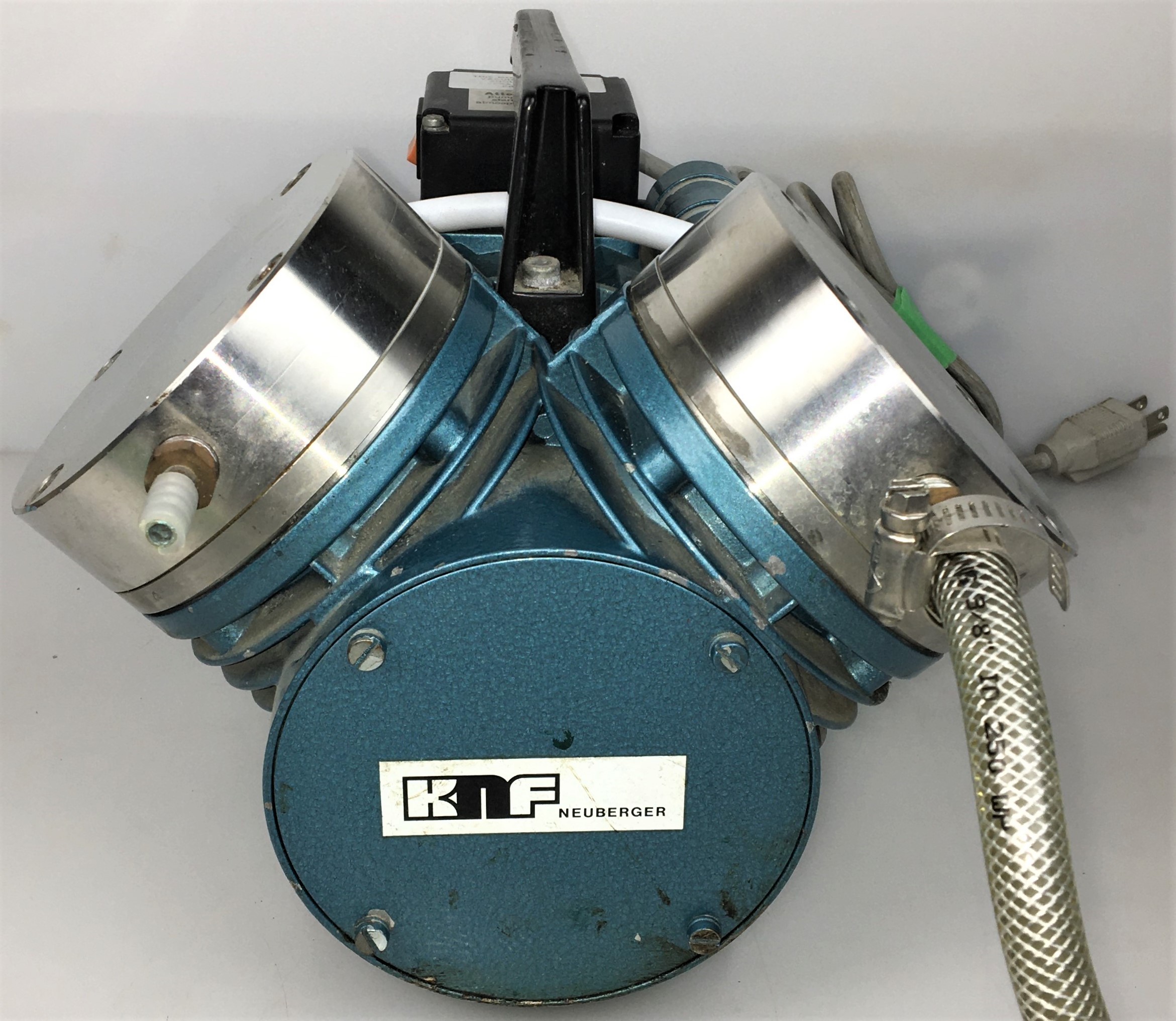

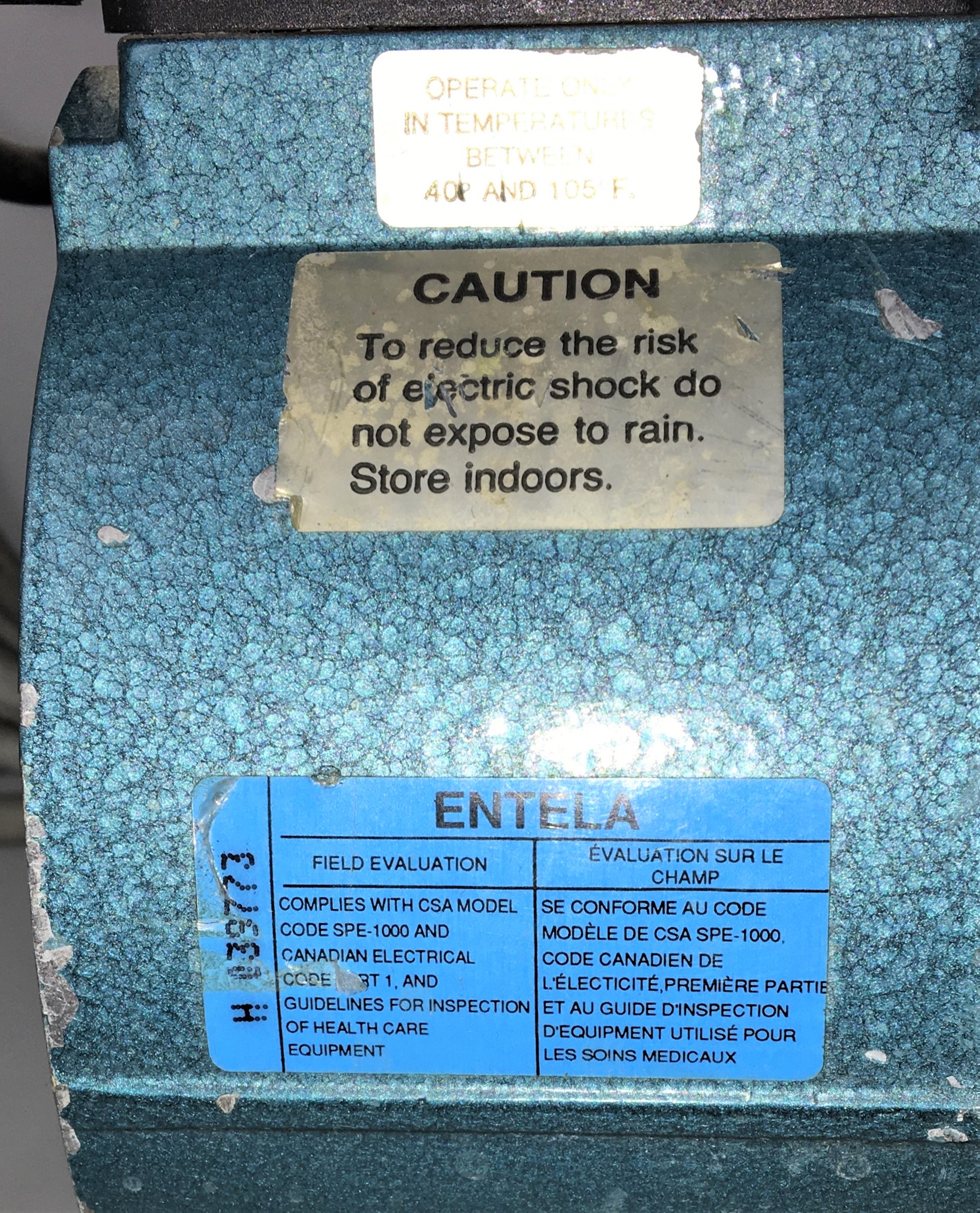

This concentrator is in near-new condition and includes a used KNF Neuberger UN035.3 STP diaphragm vacuum pump, and many accessories and spare parts, including the following:

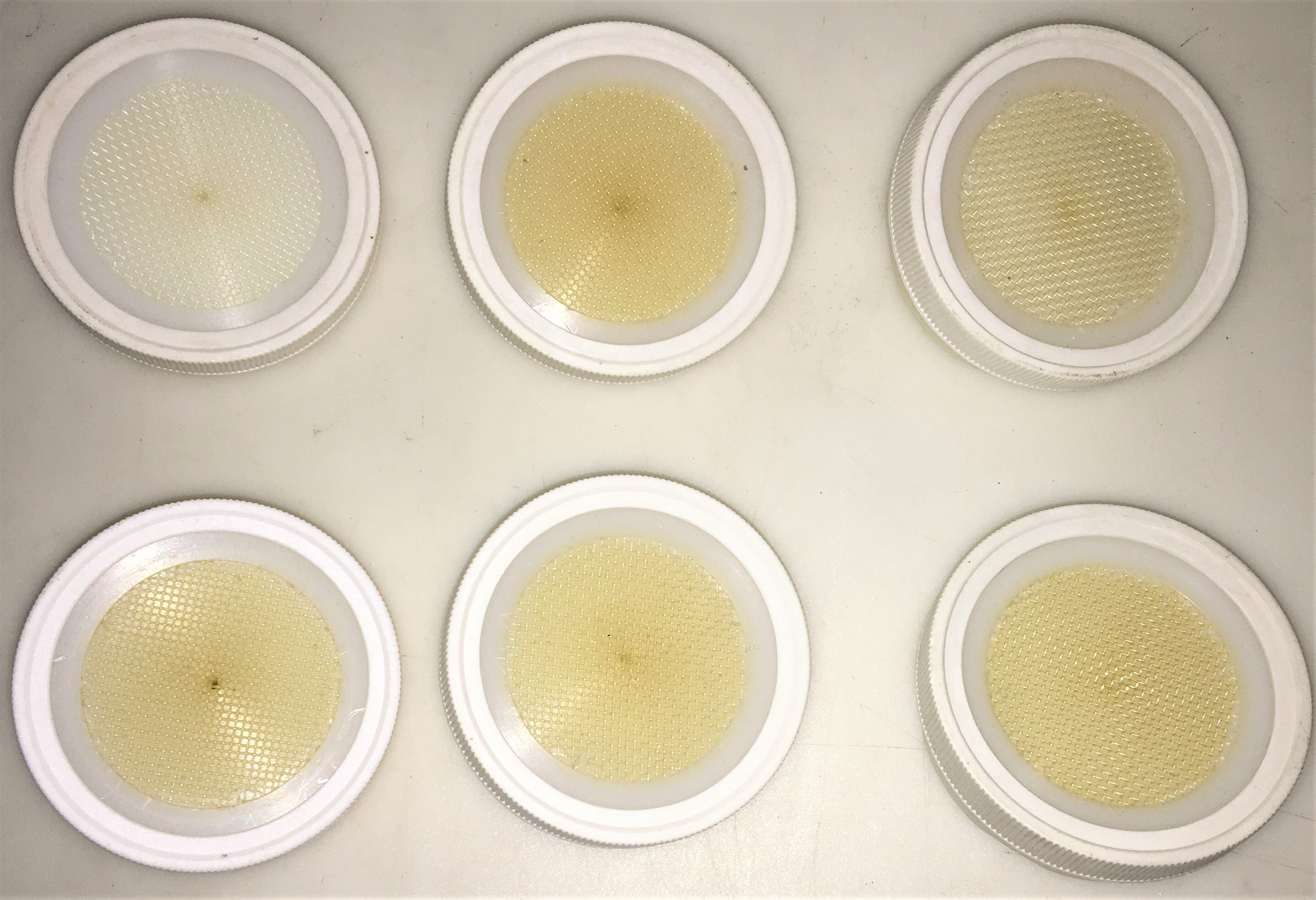

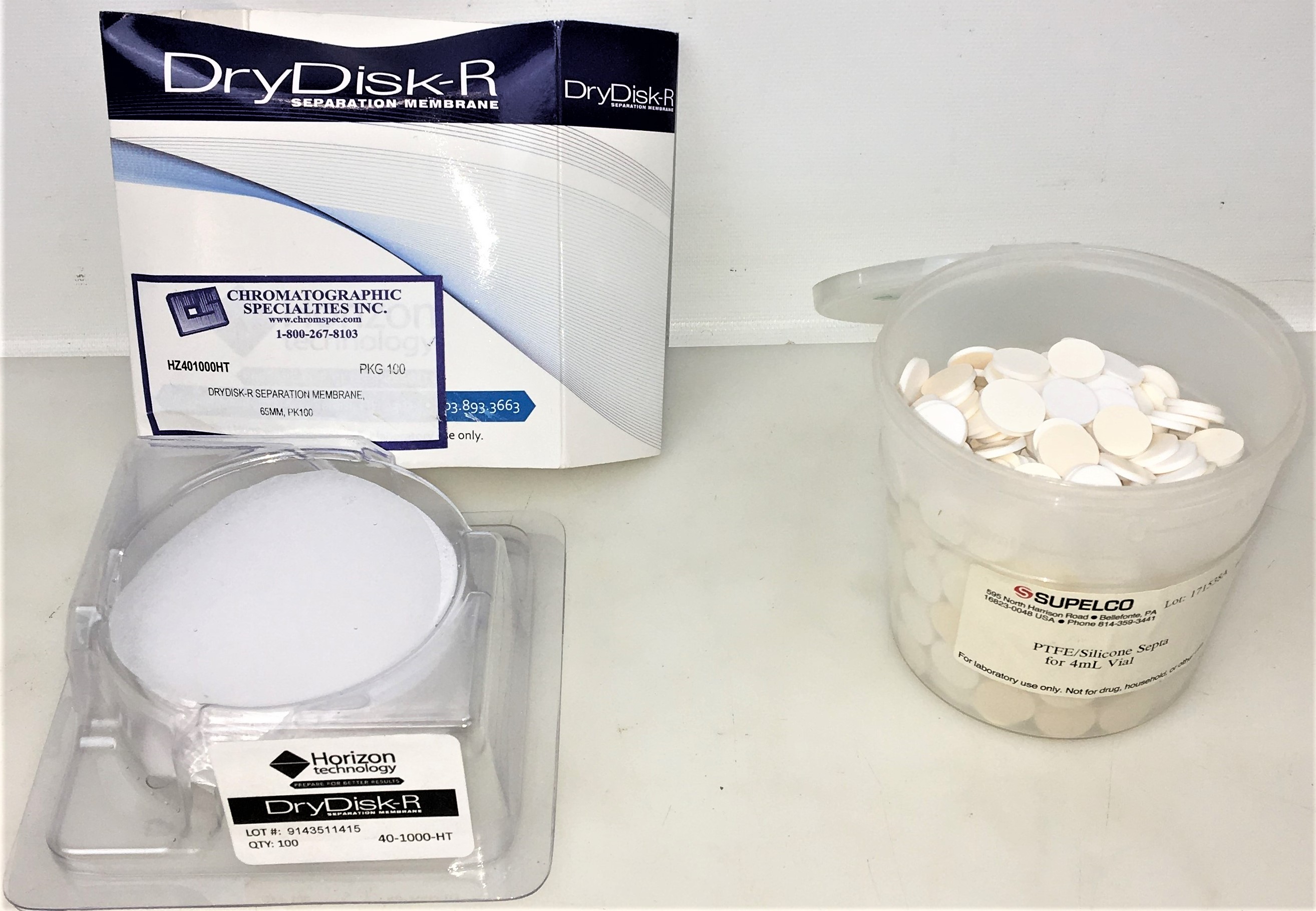

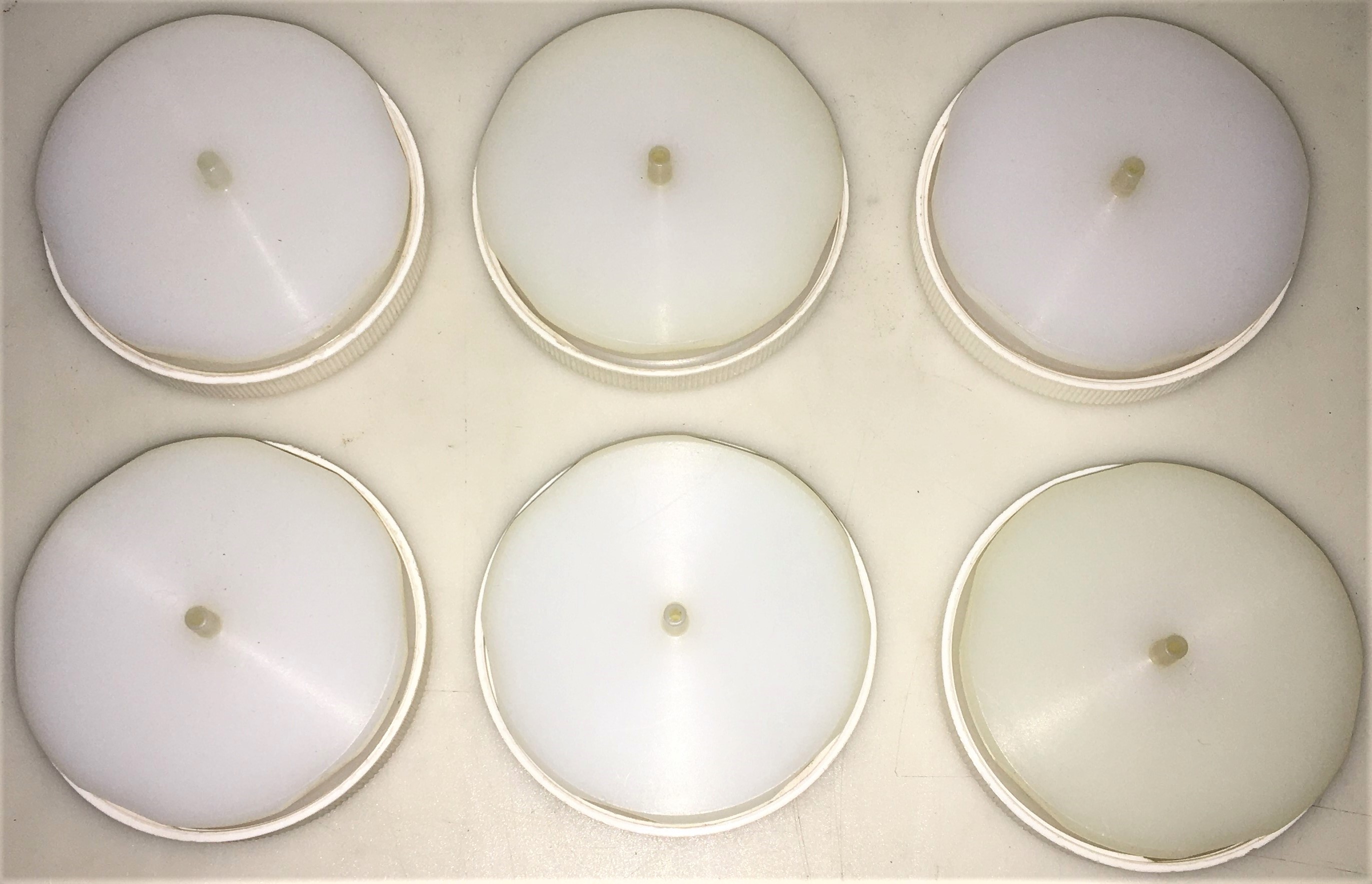

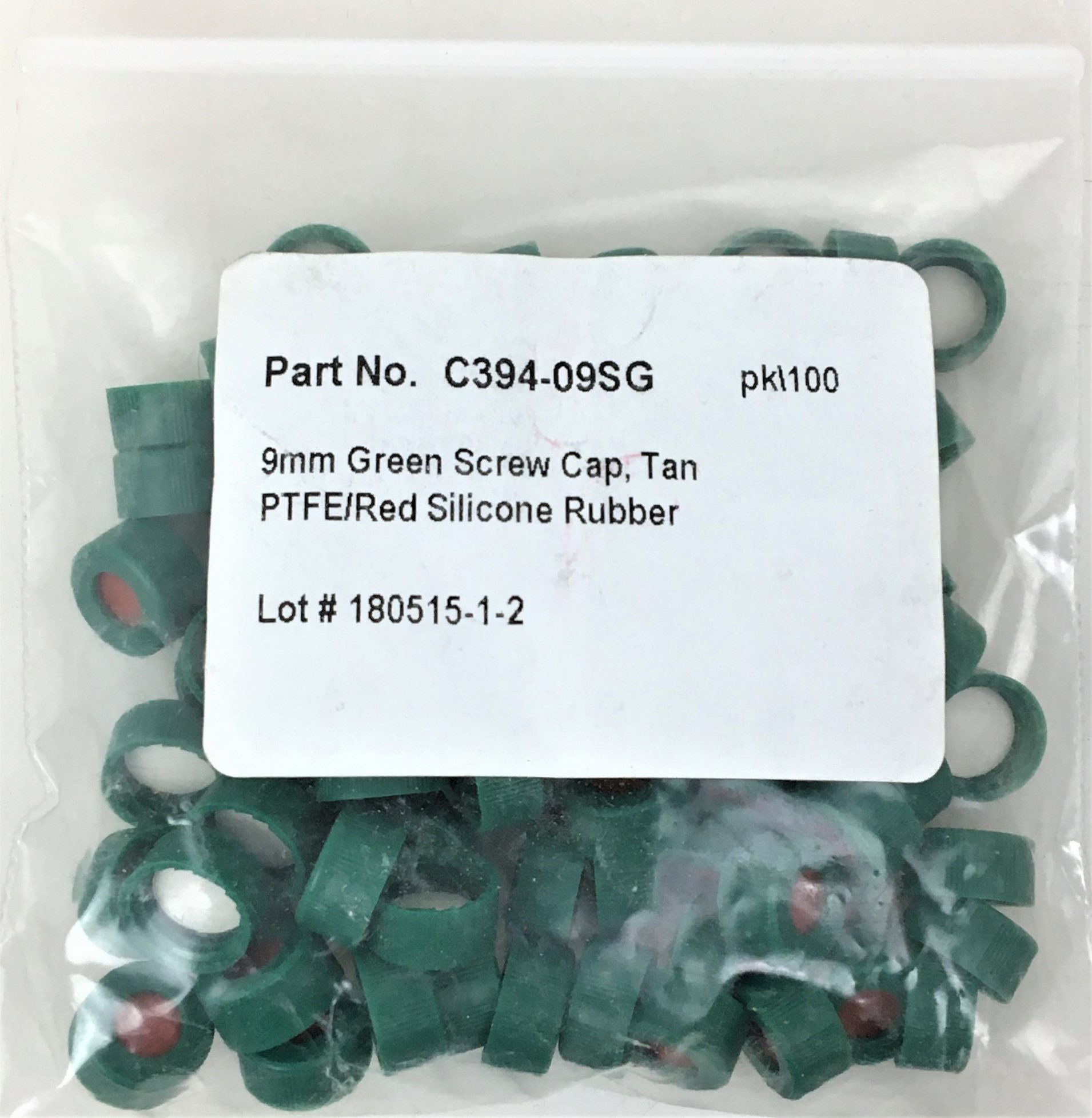

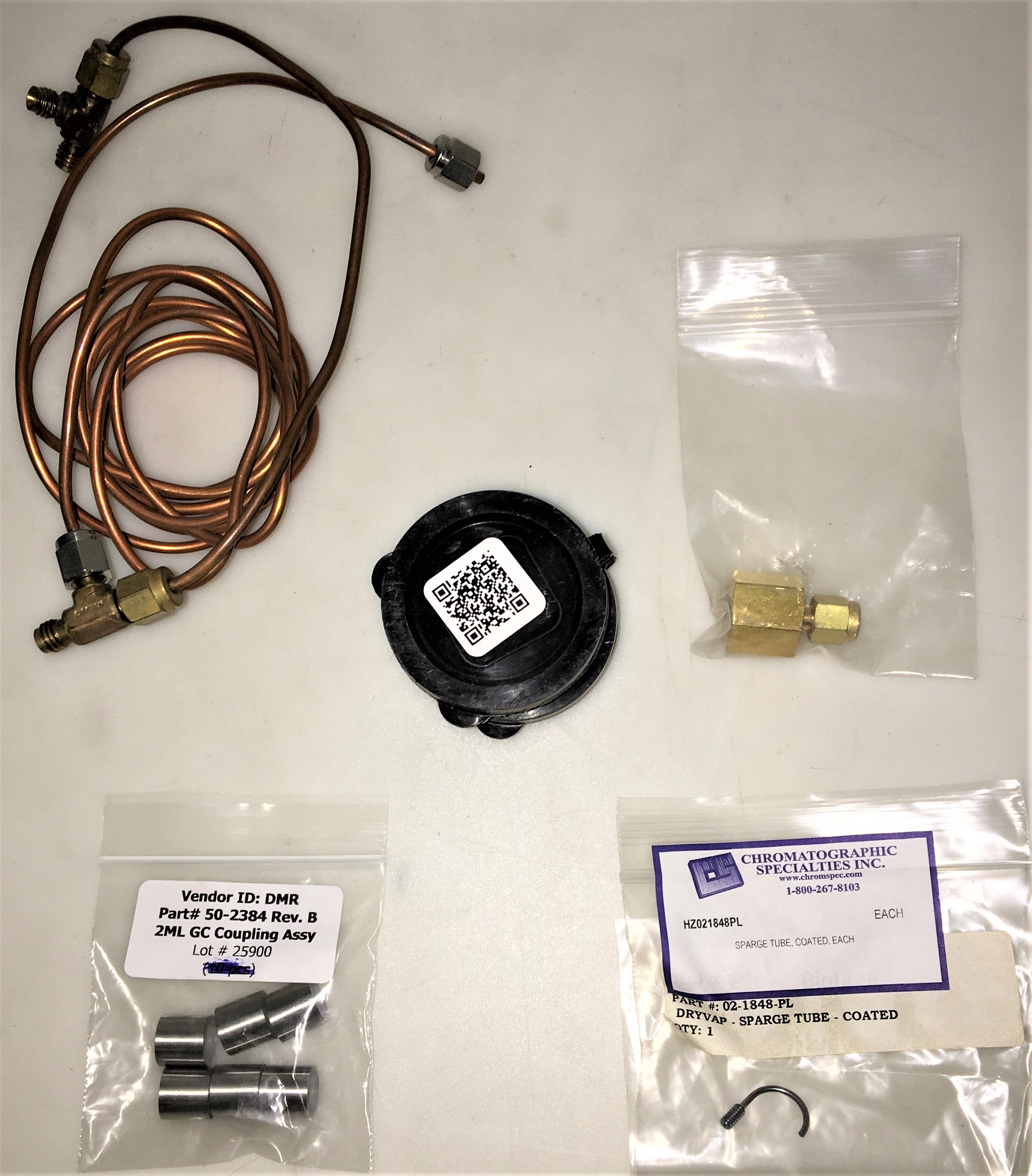

DryDisk membranes and Supelco PTFE/silicone septa

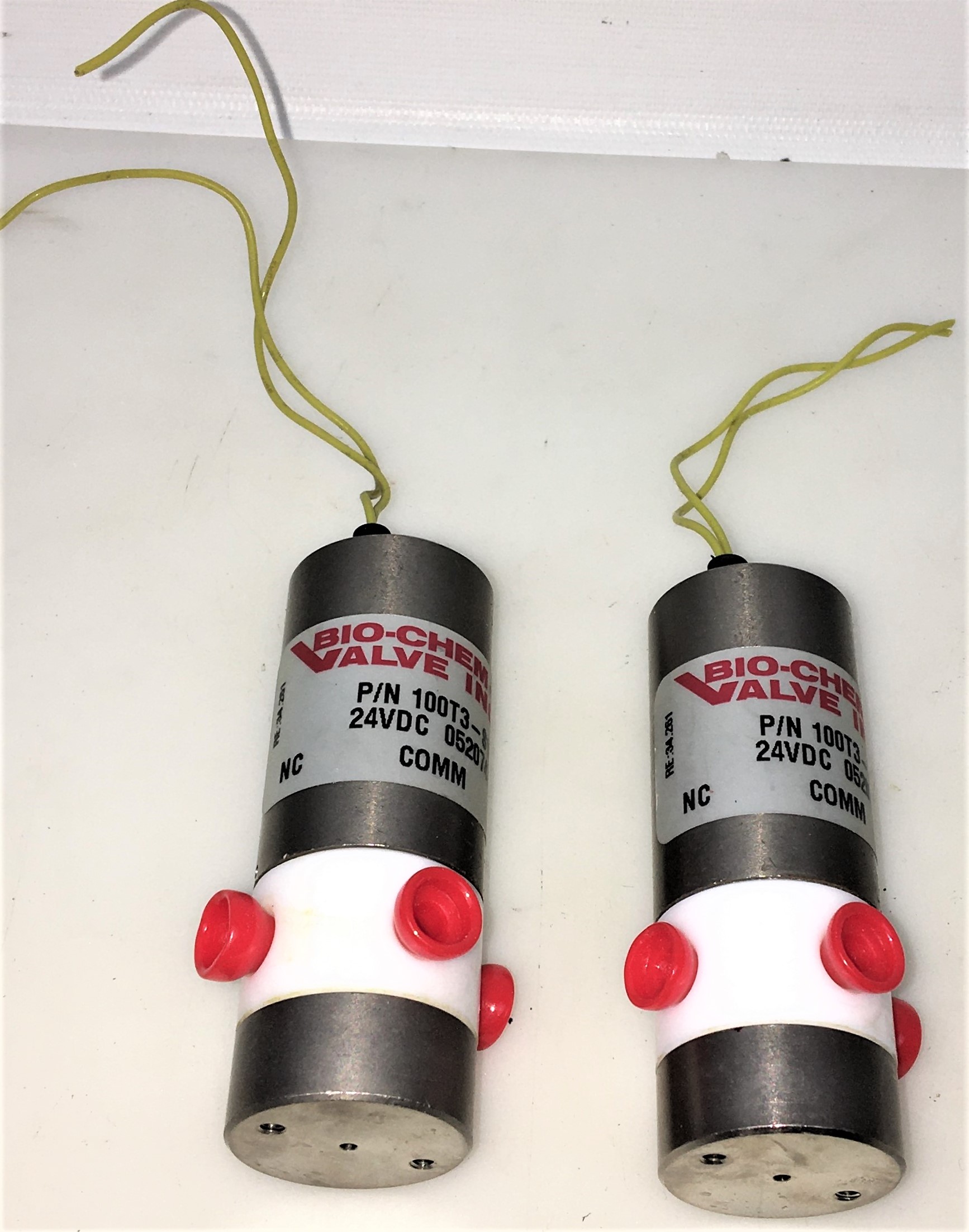

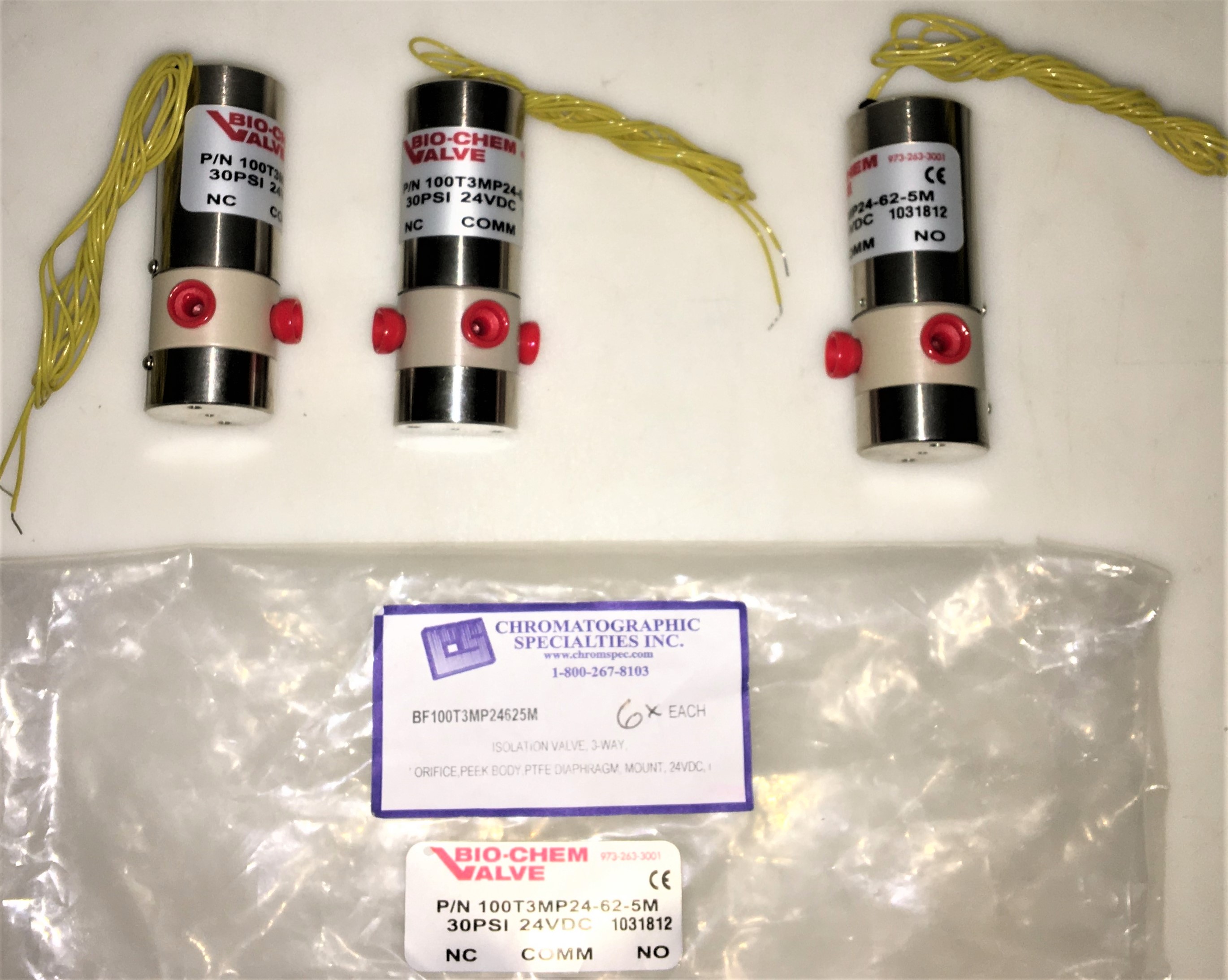

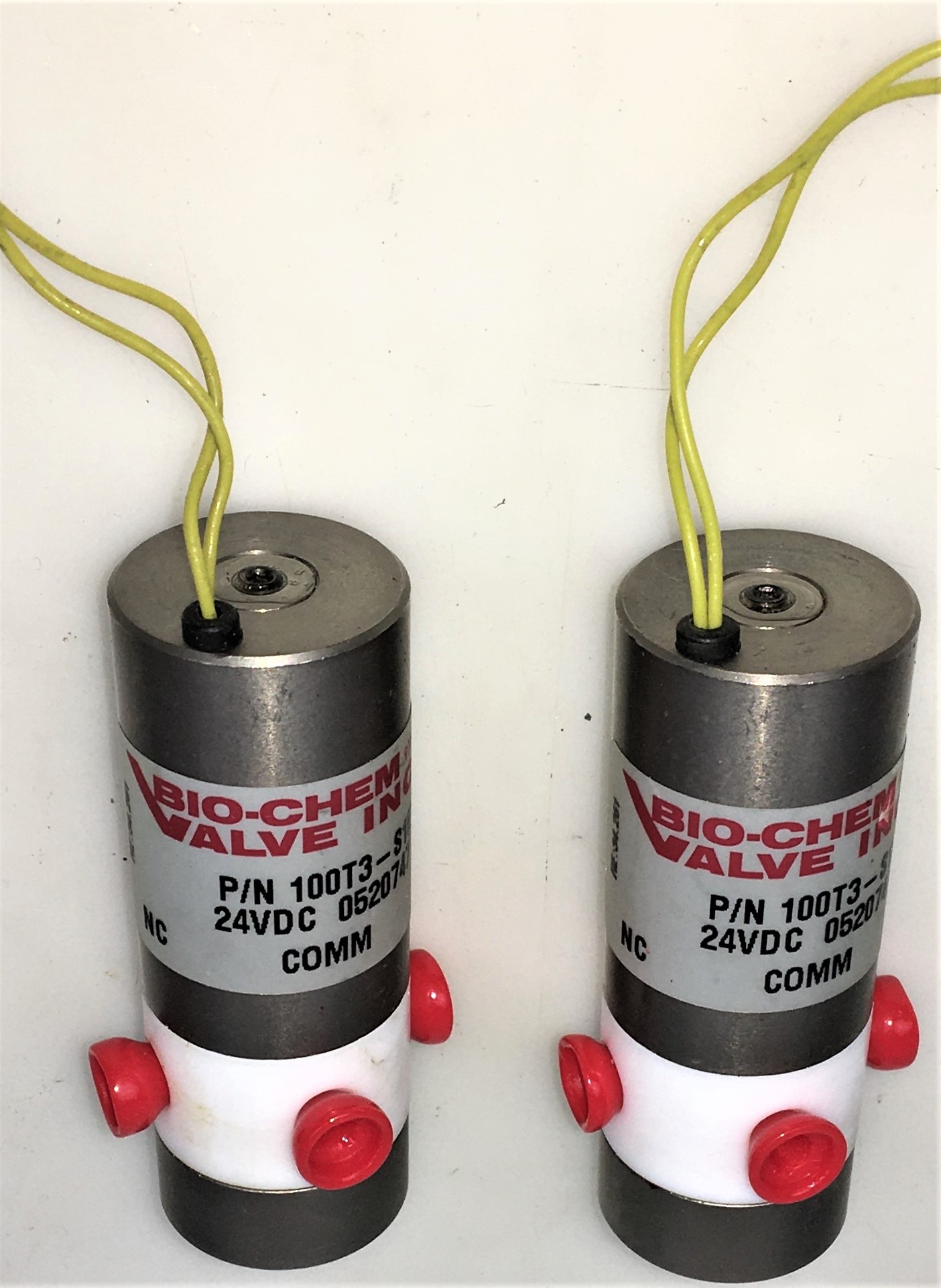

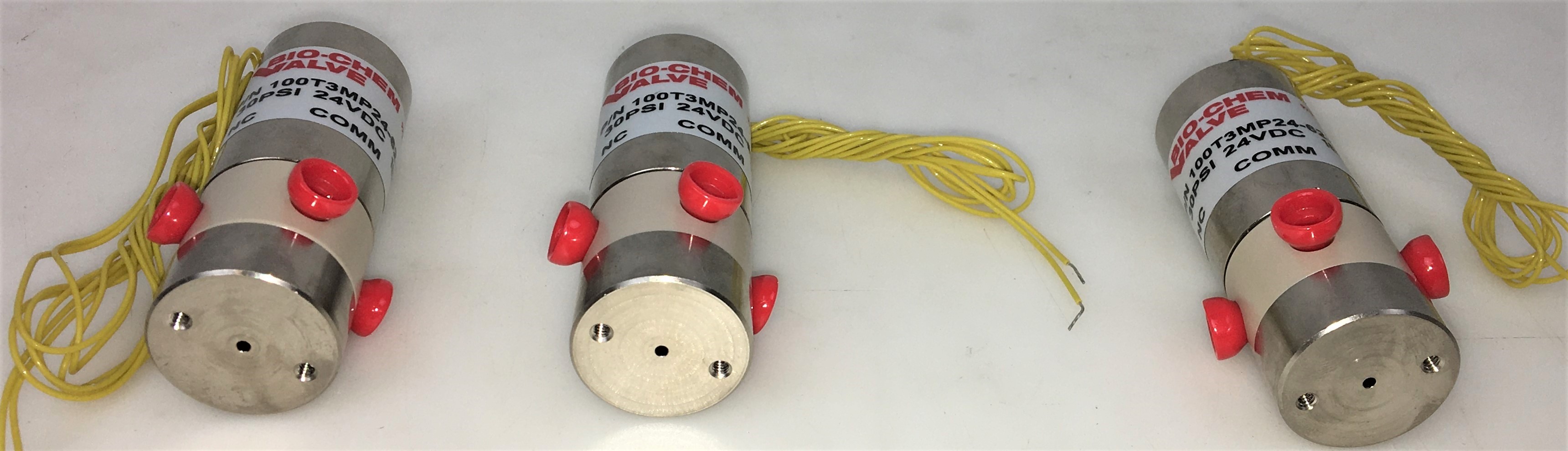

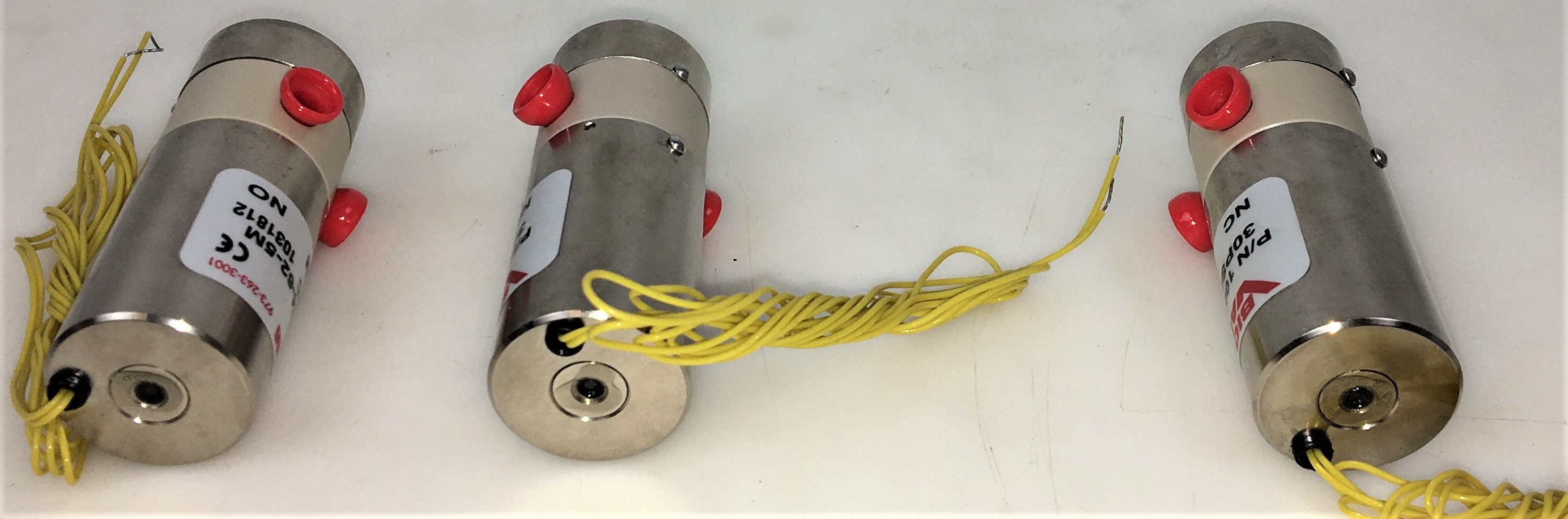

5 x gas/sparge valves (with PTFE diaphragm mounts - 3 brand-new and 2 used)

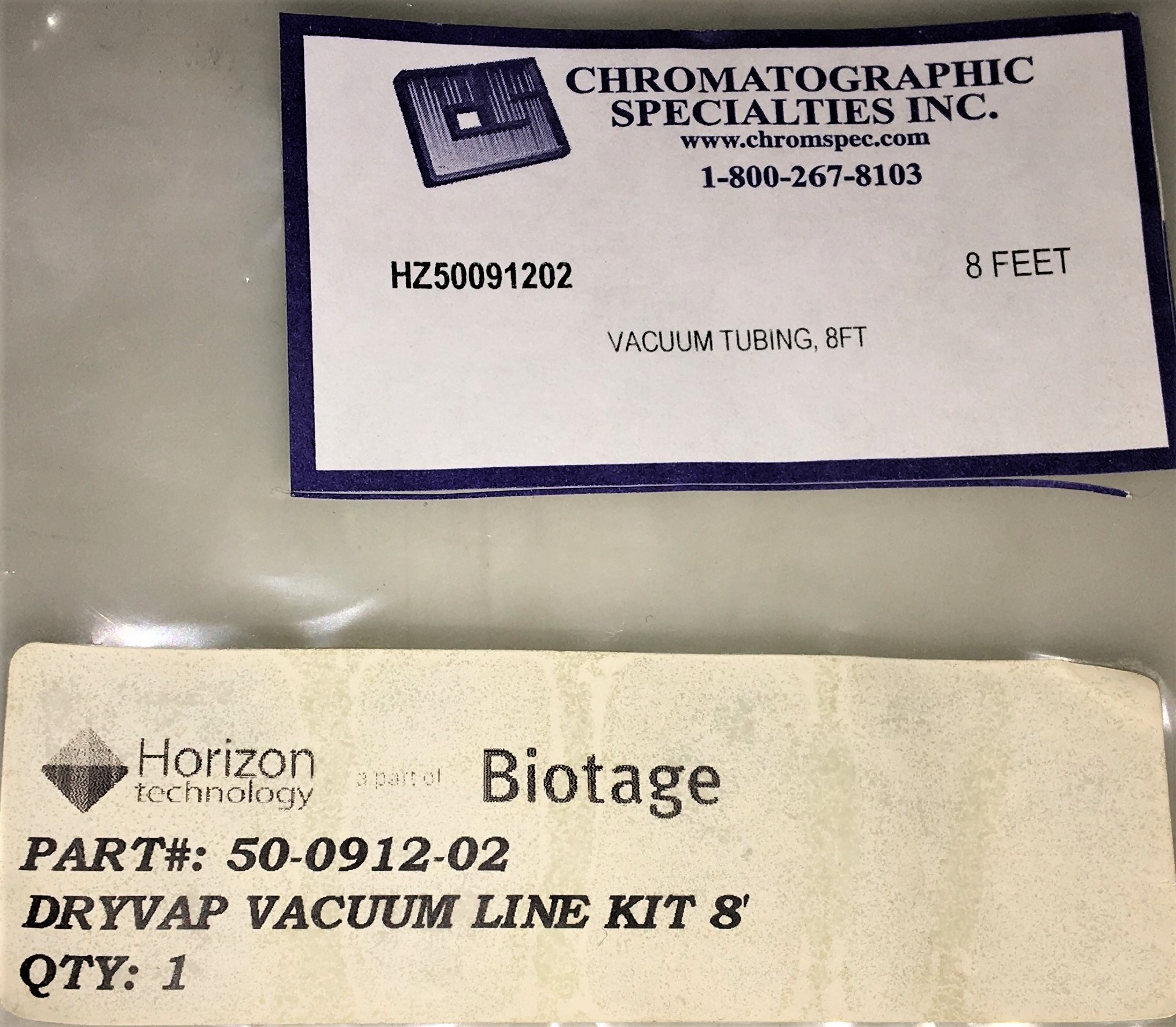

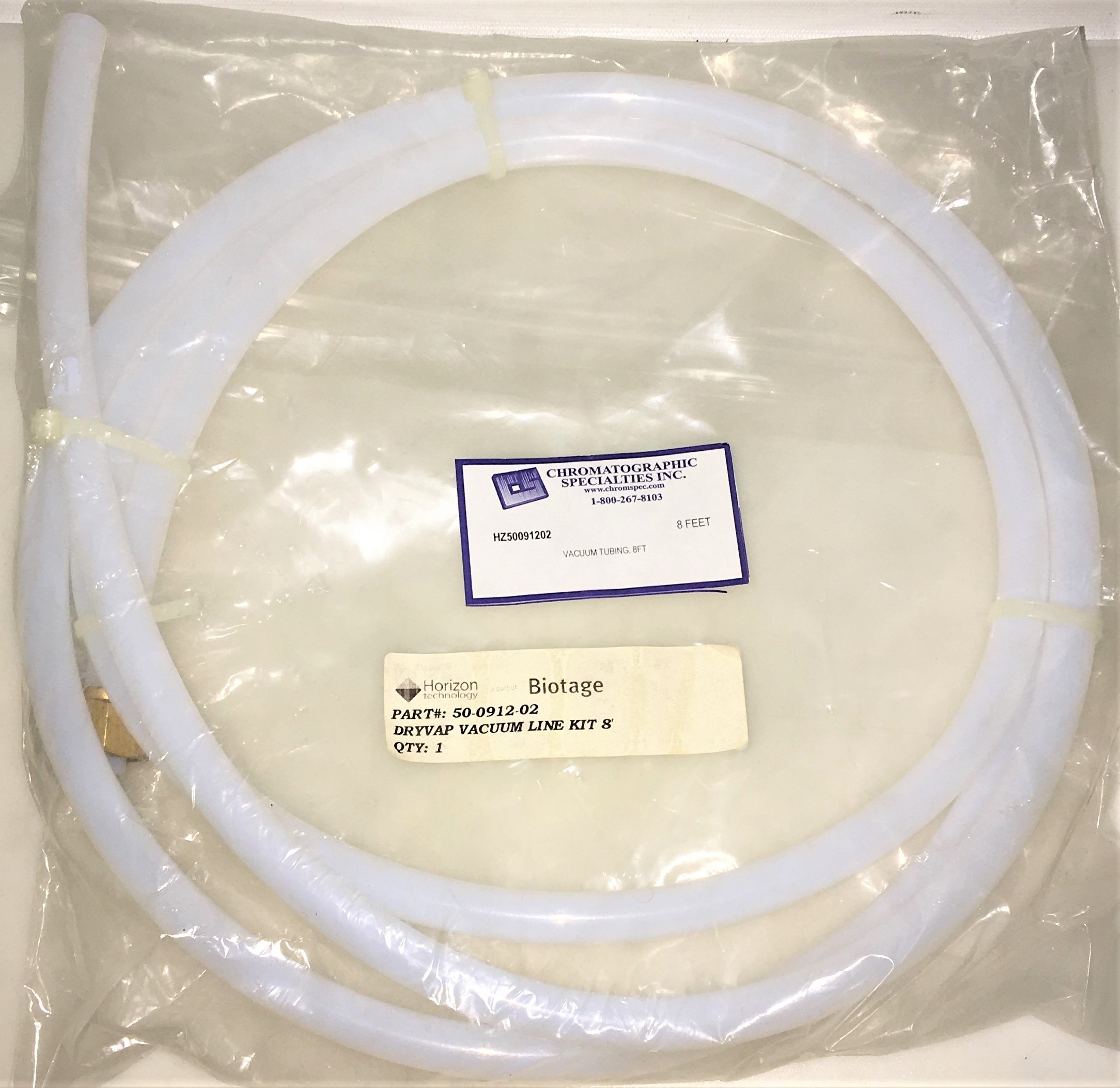

1 x vacuum line kit

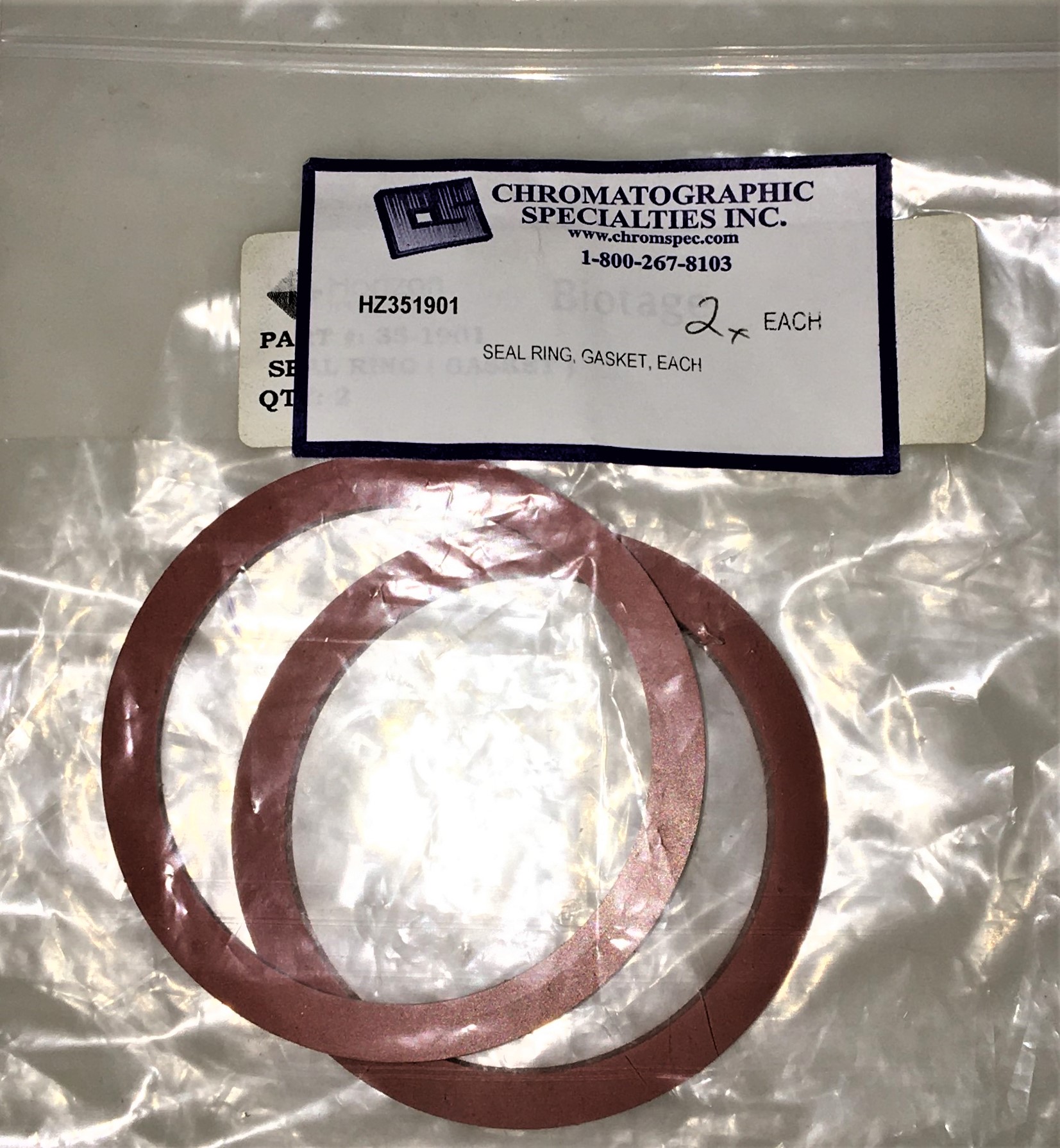

2 x gasket seal rings

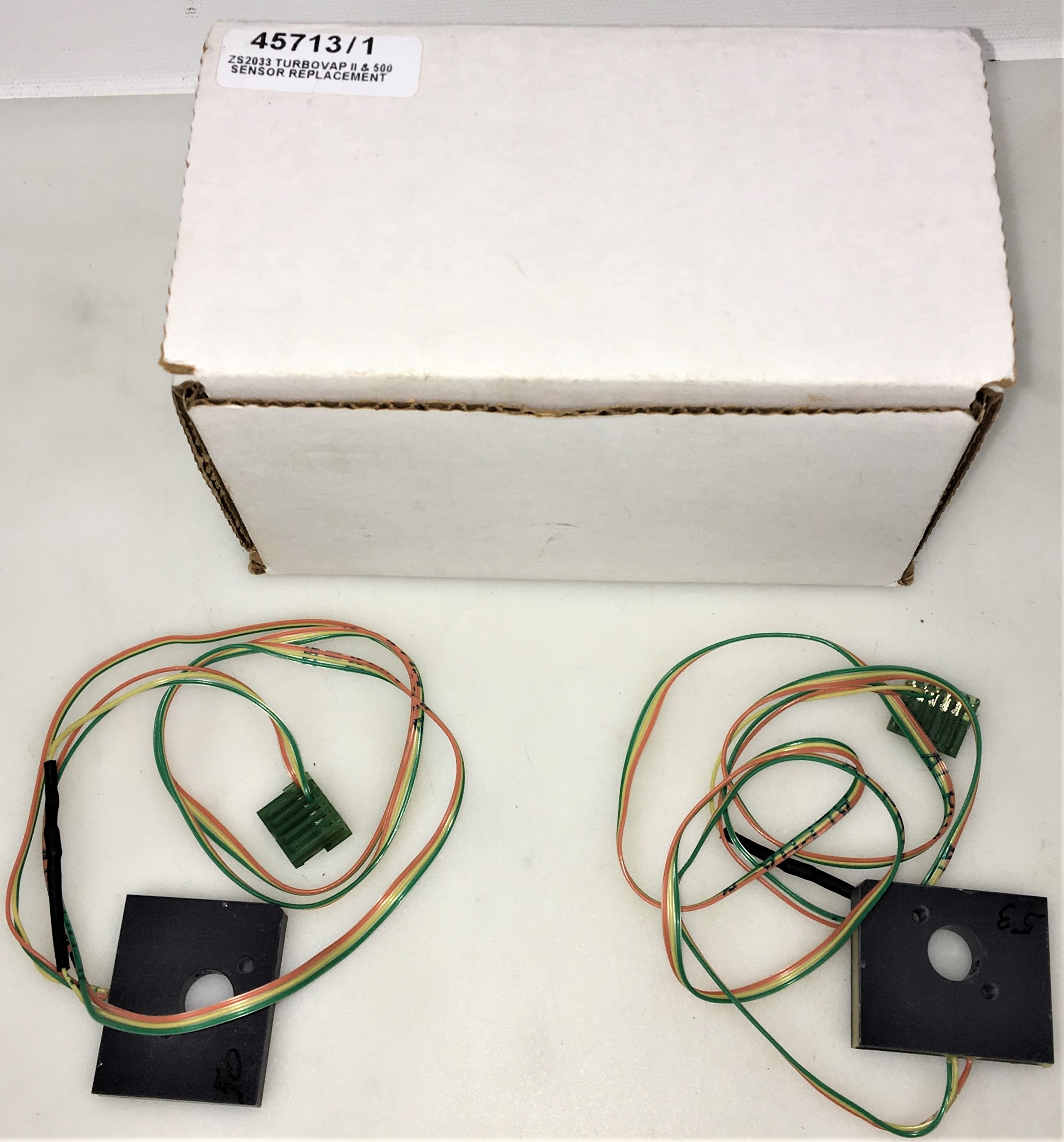

2 x sensors

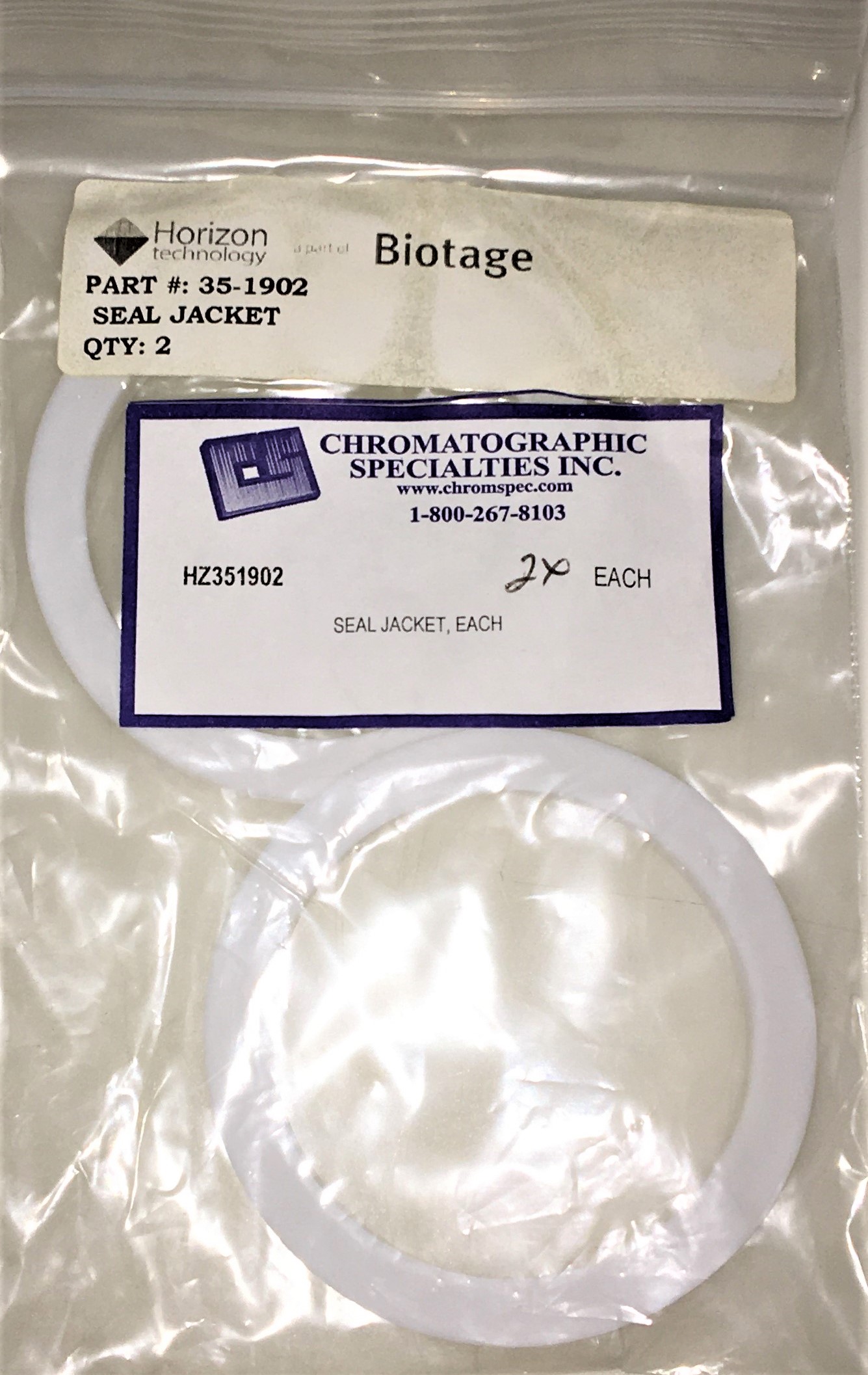

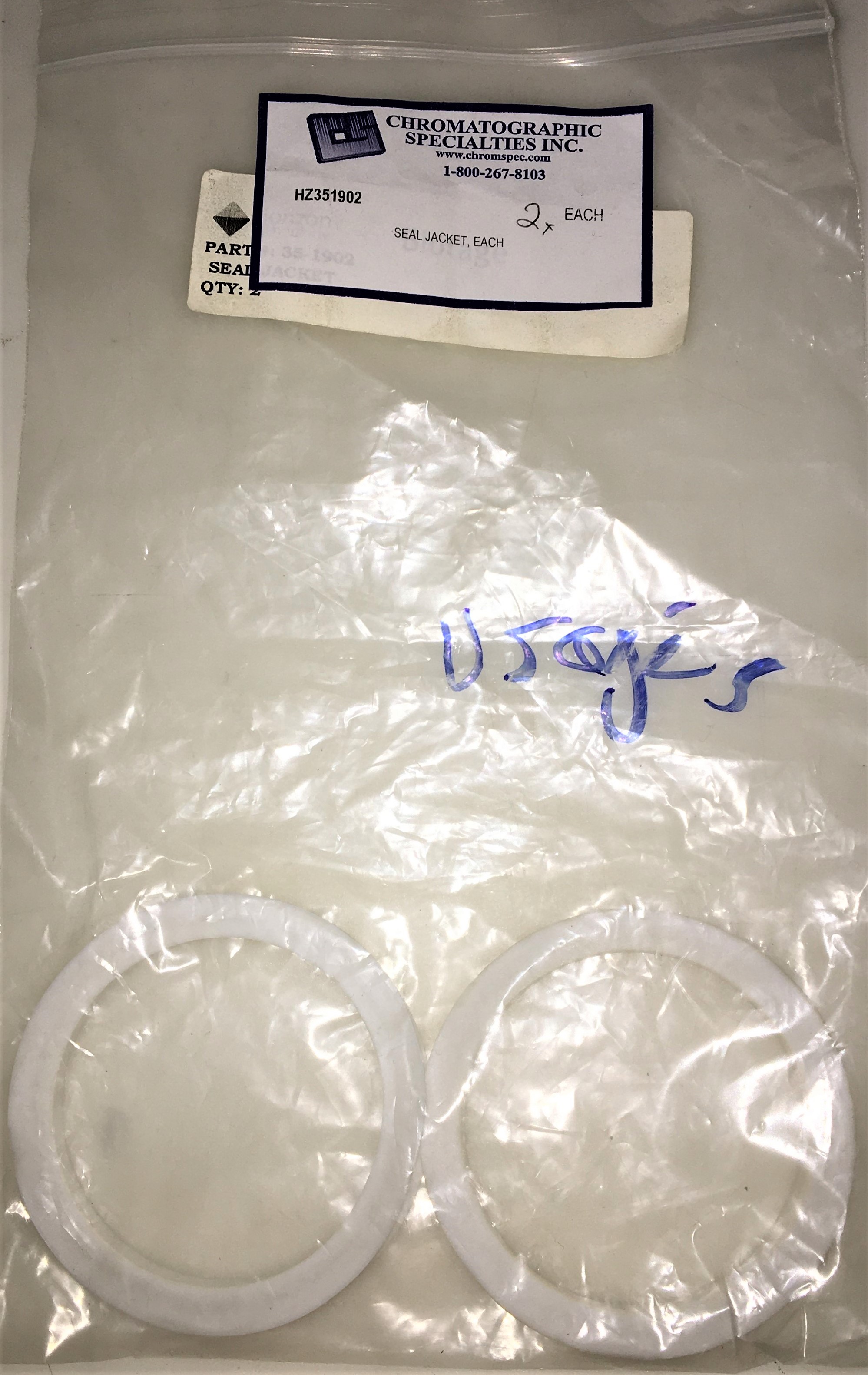

4 x seal jackets

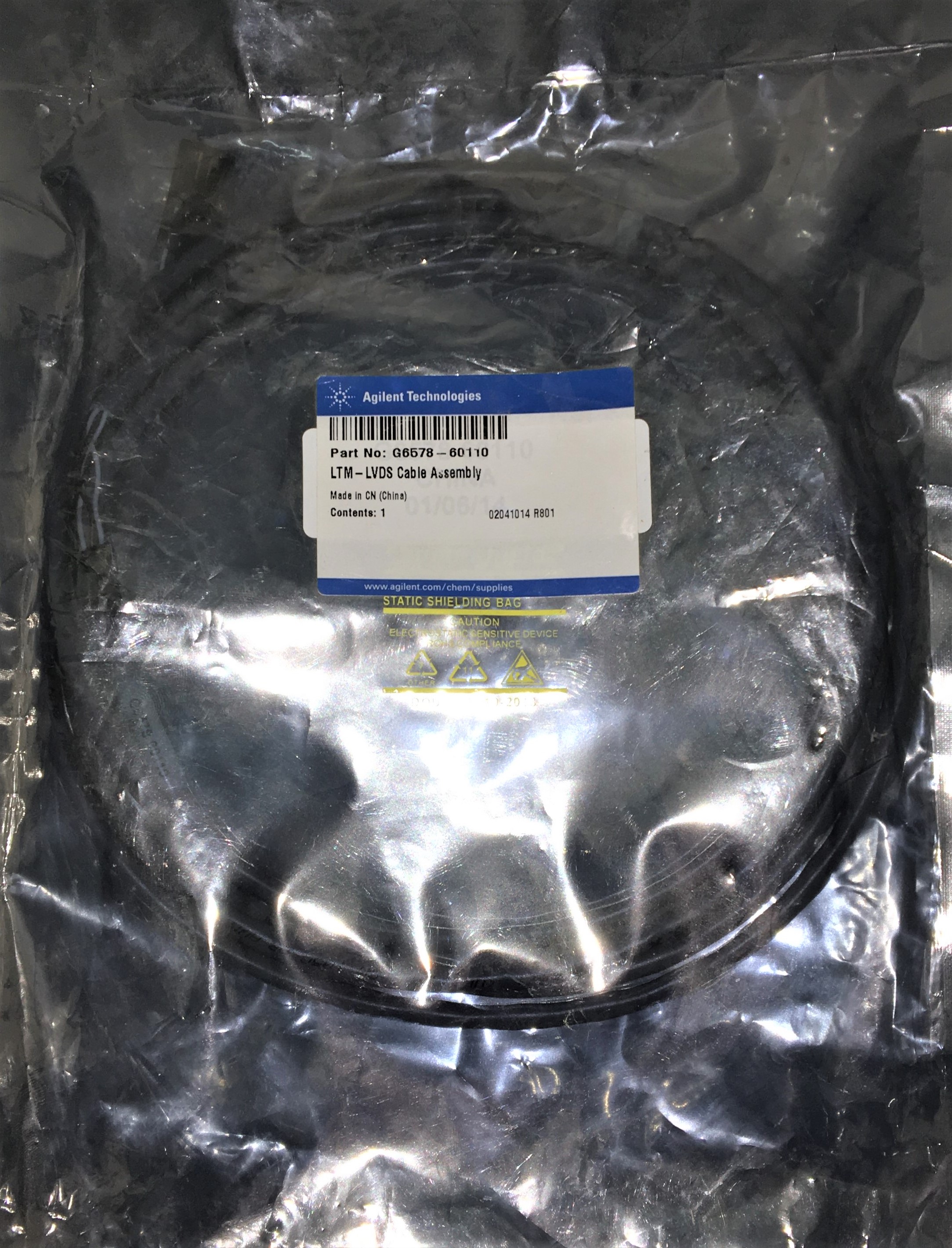

1 x cable assembly

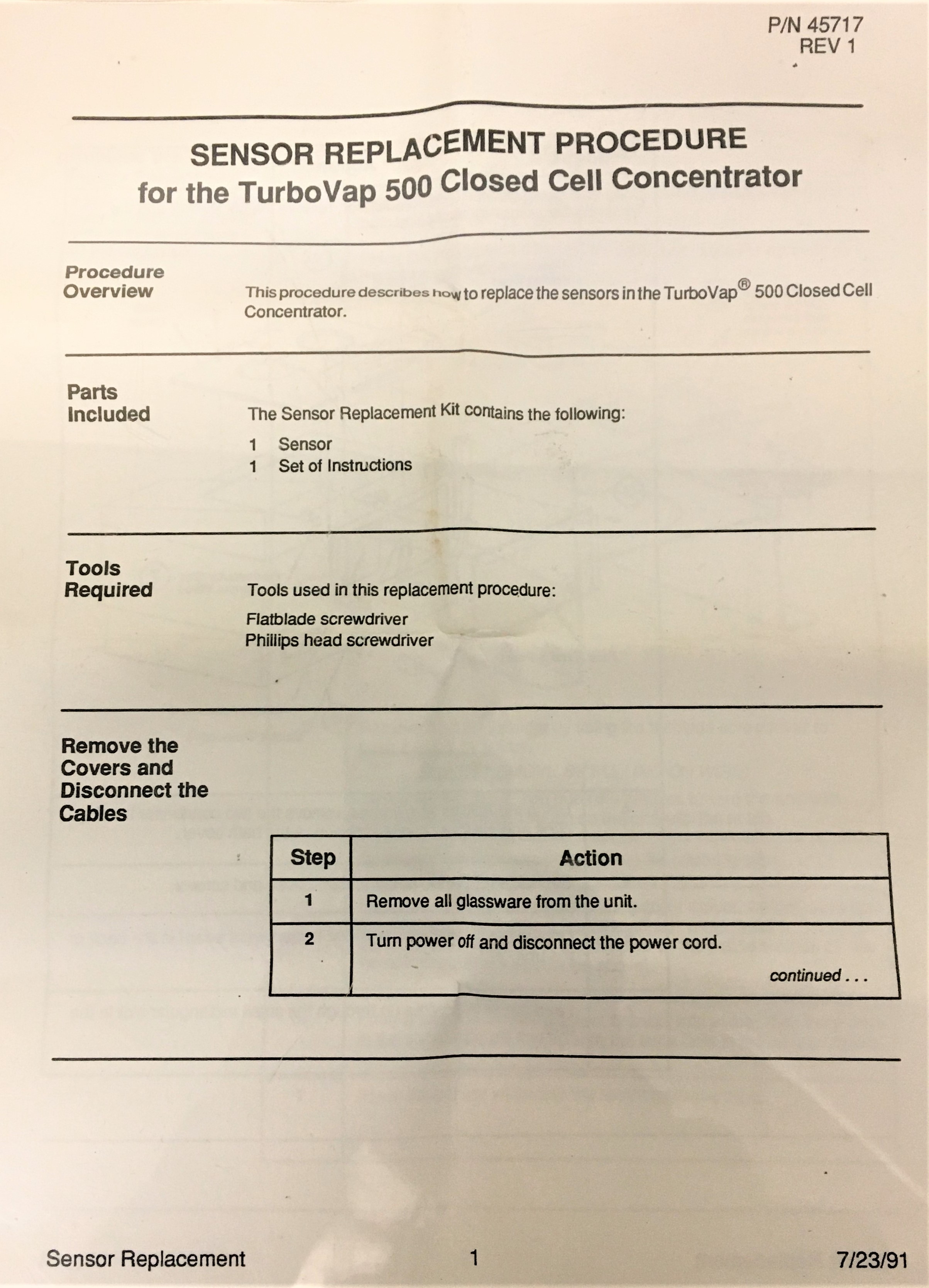

3 x manuals

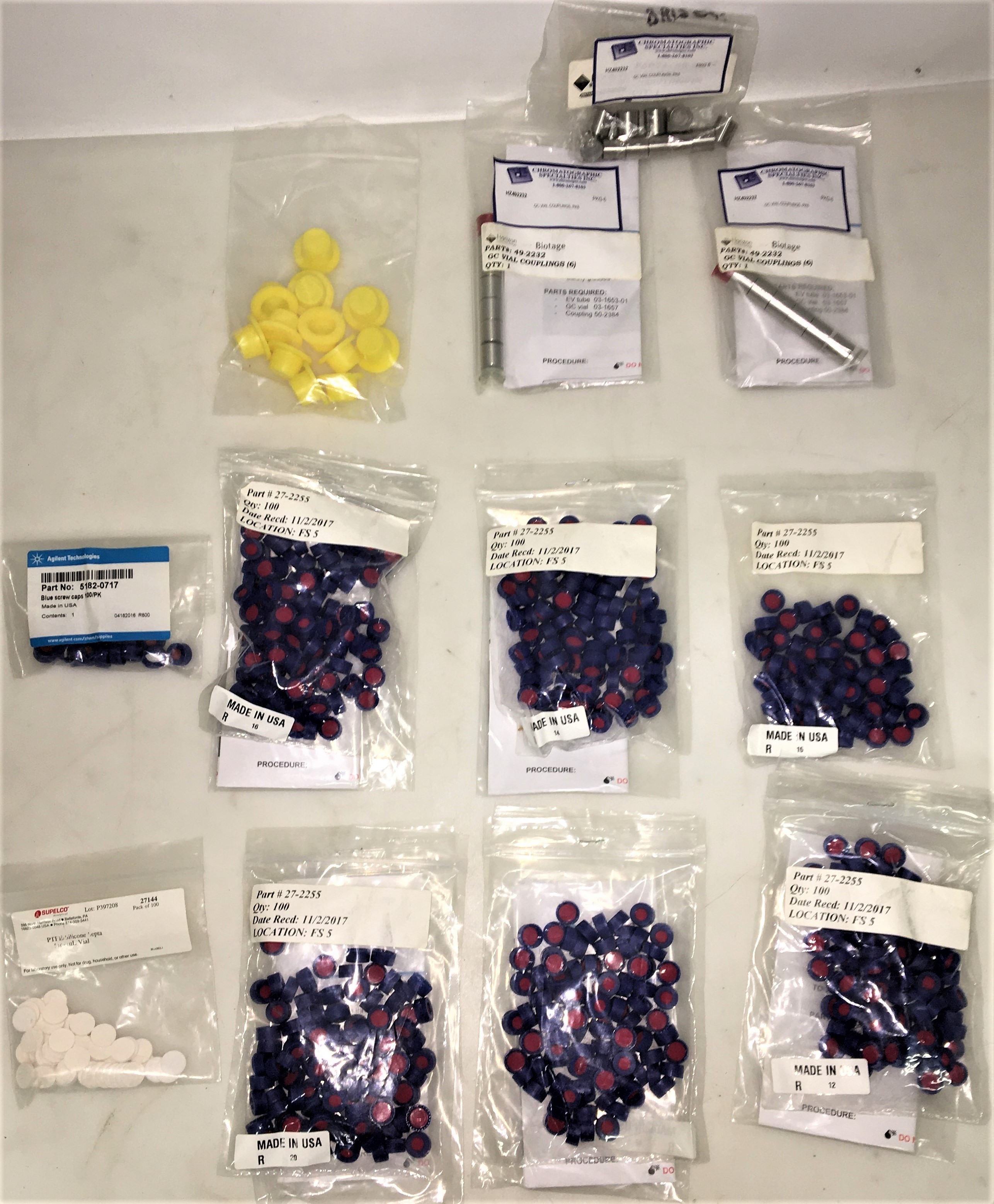

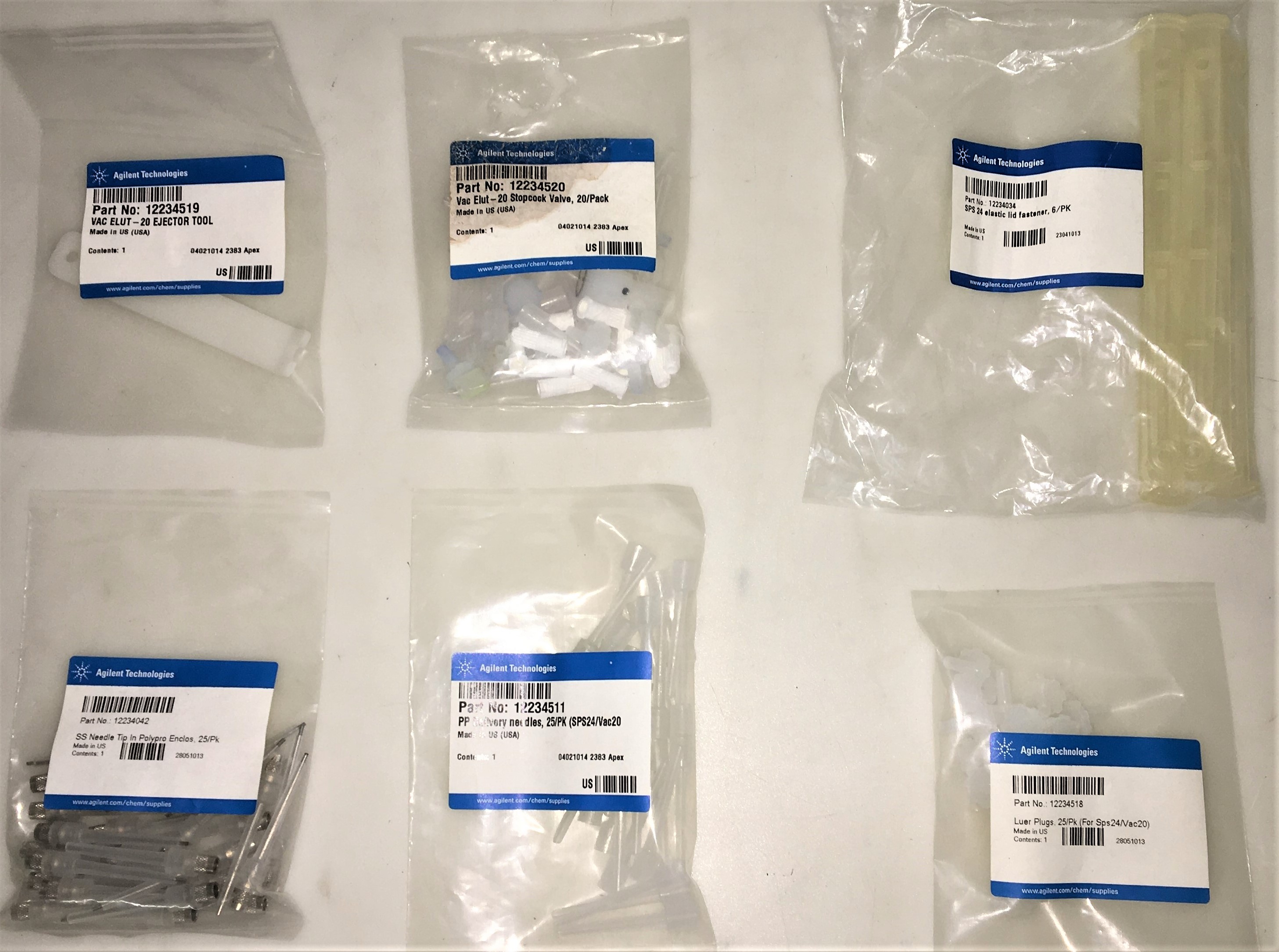

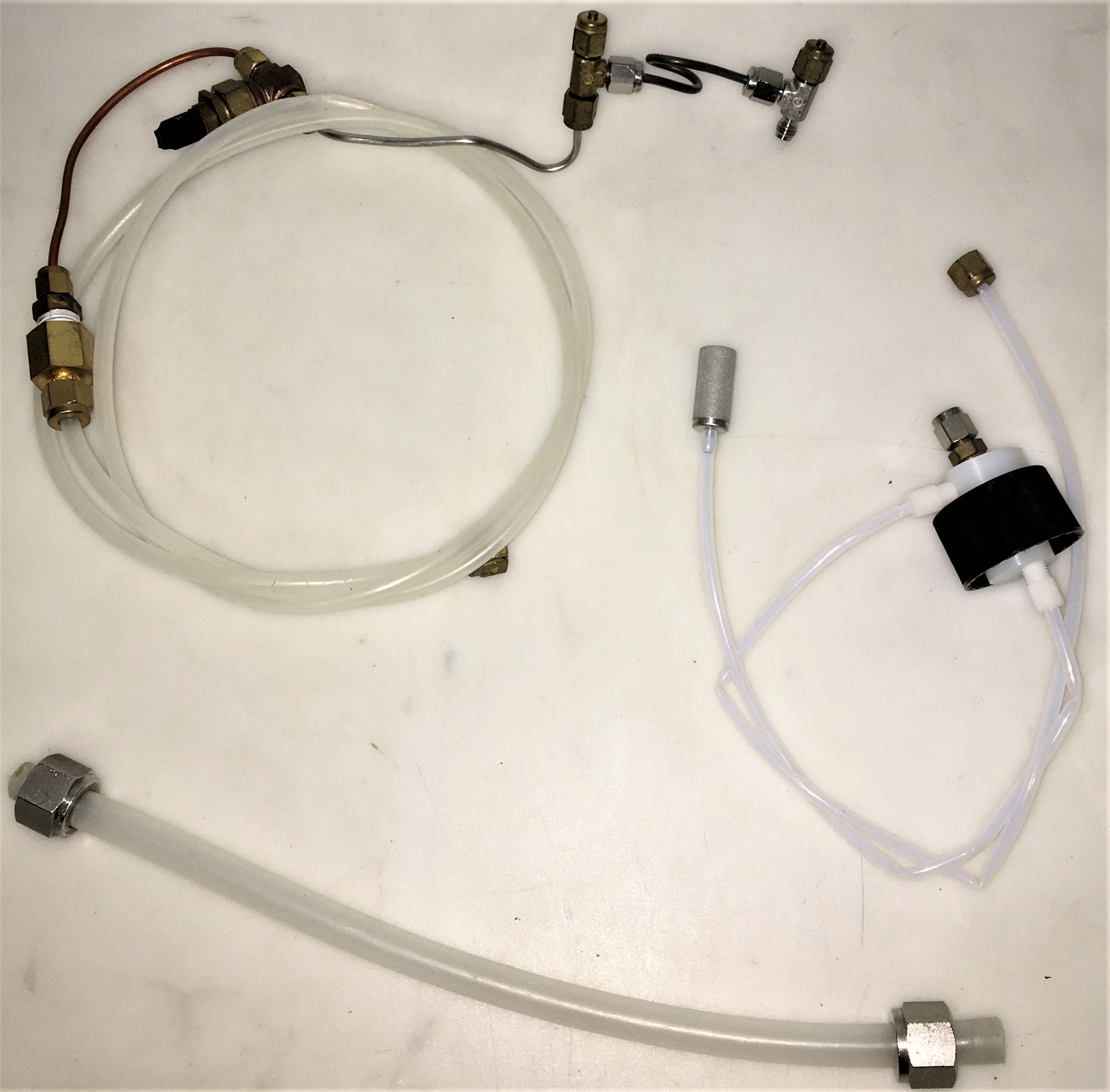

...and many other assorted parts - SEE PHOTOS

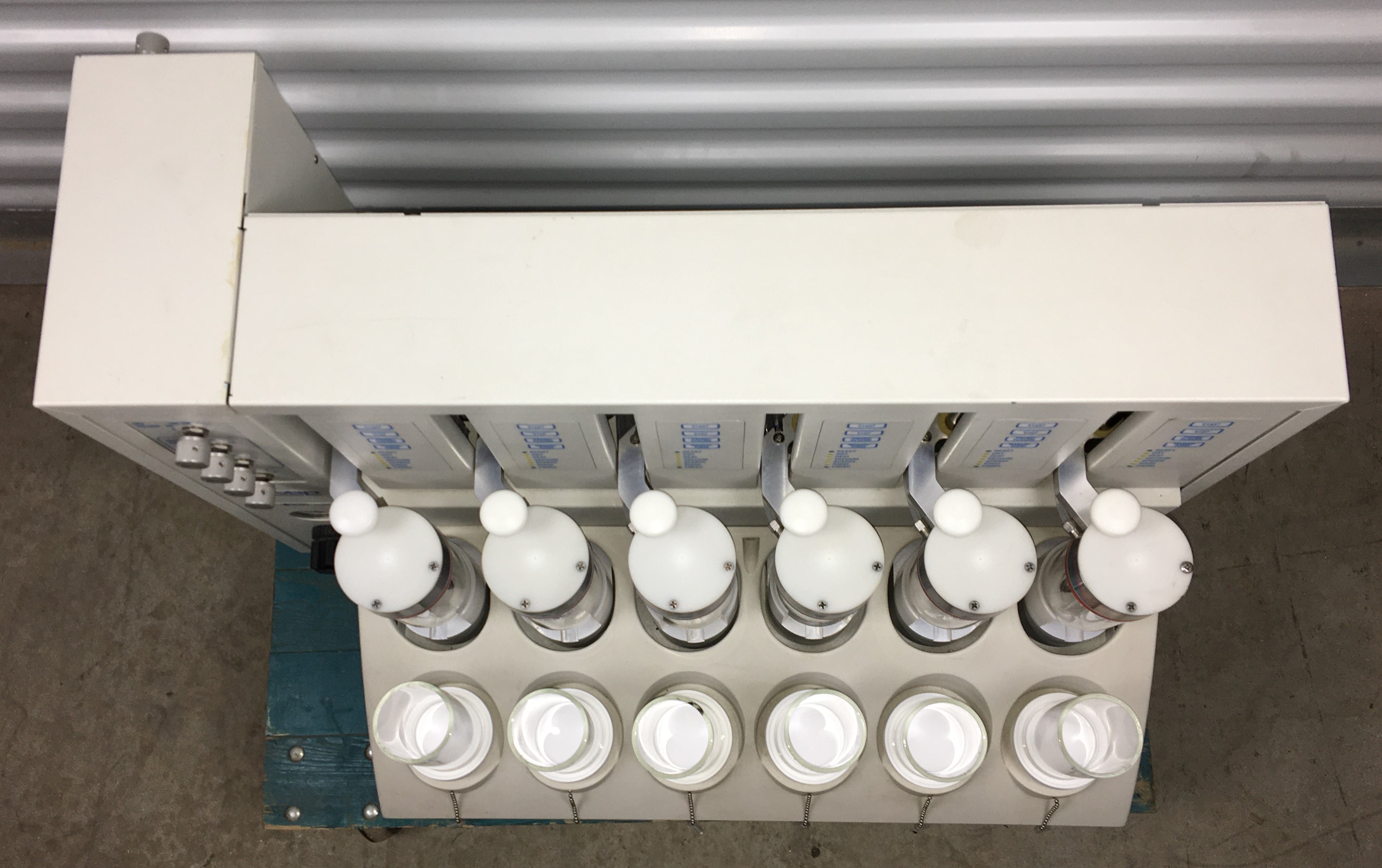

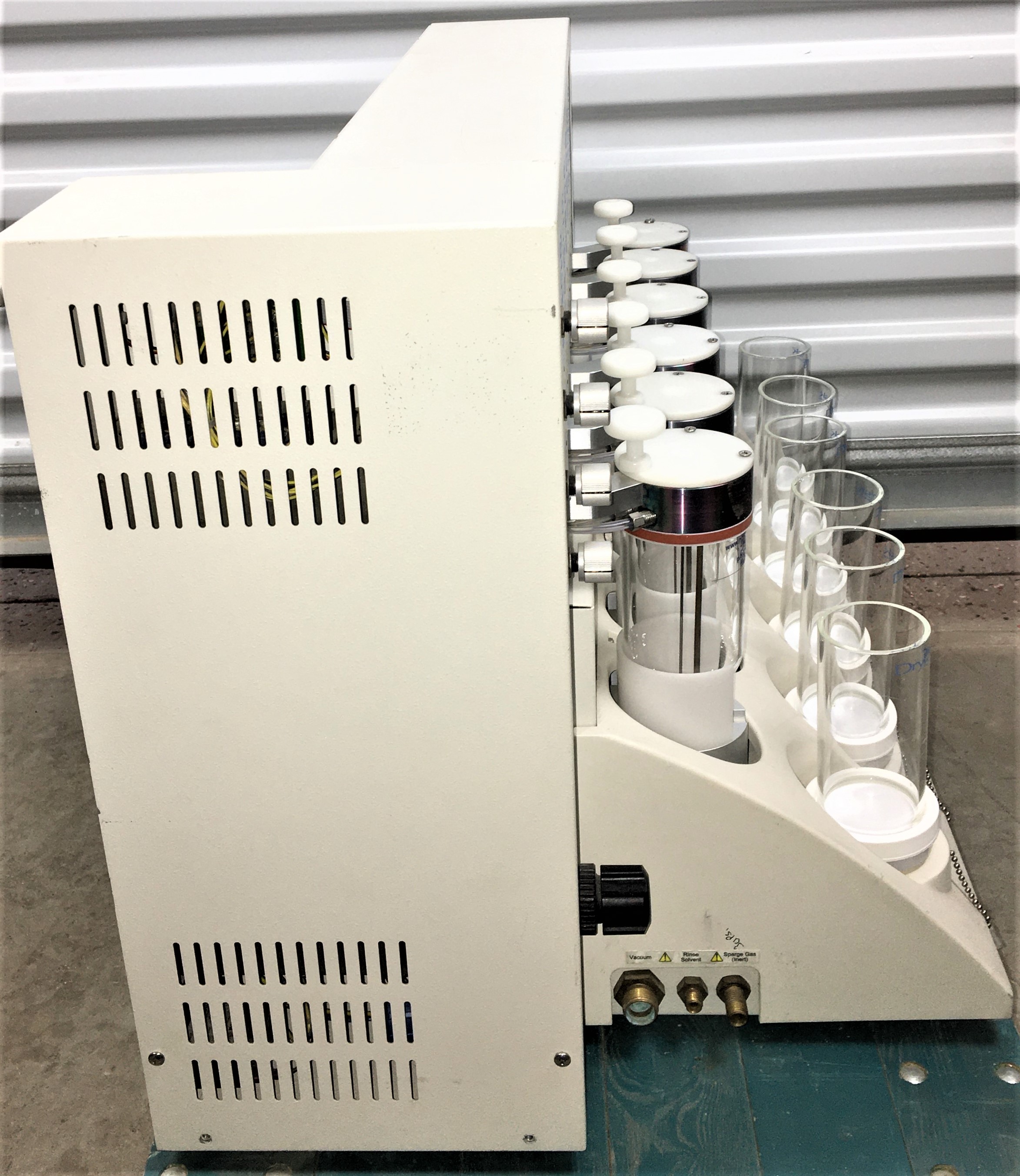

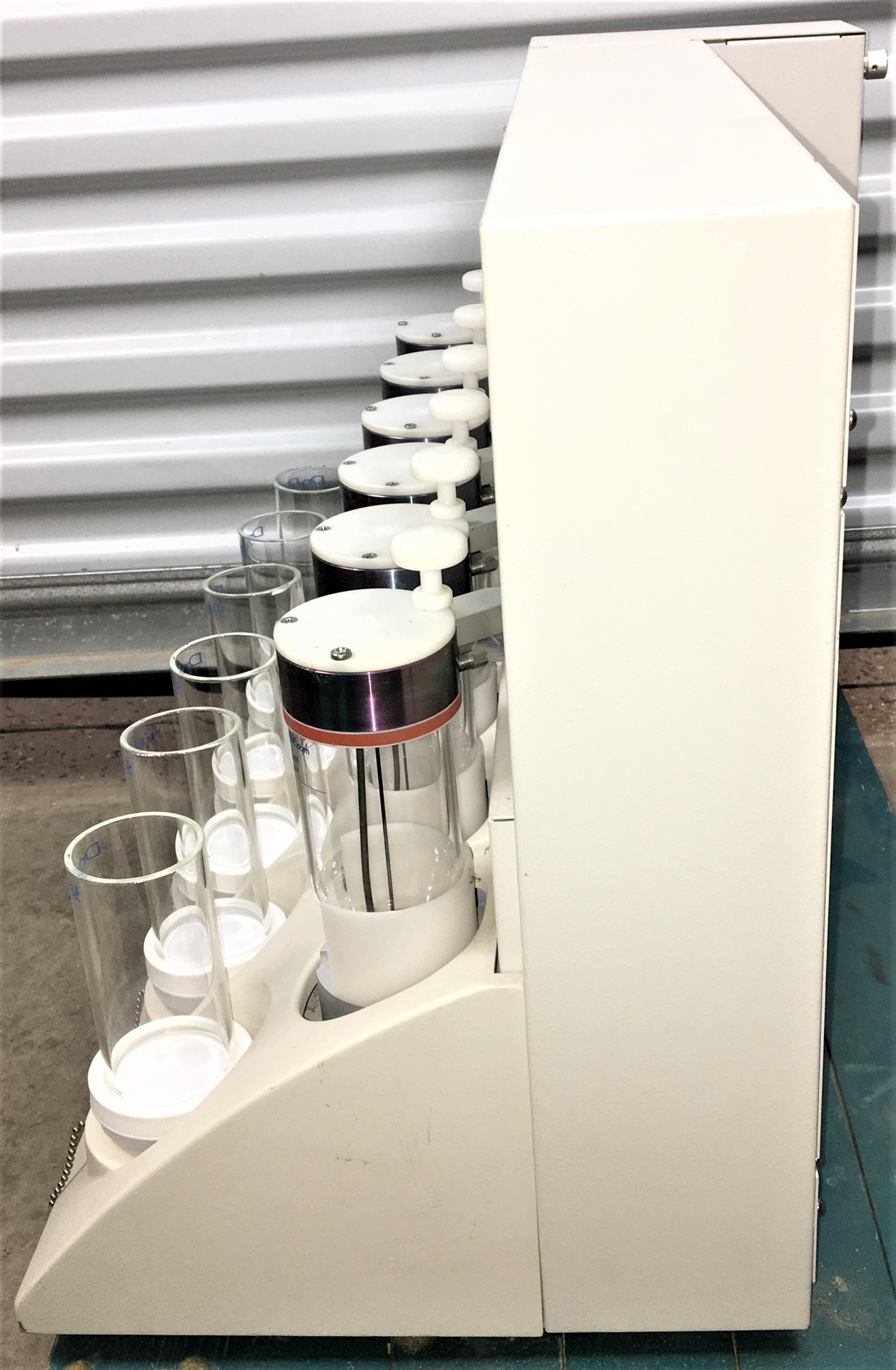

The DryVap 5000 concentrator system is designed to automatically remove water (dry) and concentrate samples through evaporation of the extraction solvent, for GC, GC/MS, and HPLC/MS analysis. Organic solvents from SPE (solid phase extraction) or LLE (liquid-liquid extraction) are automatically dried of any residual water using Horizon’s DryDisk membranes, and then concentrated to volume using a combination of heat, vacuum, and sparge gas. The DryVap concentrator system provides bench-top operation capable of handling up to 6 samples simultaneously with each station operating independently. Sample volumes can range from 2 mL to 200 mL. The easy to use DryVap concentrator system sets new standards for rapid solvent drying and concentration, and reproducibility of results.

The DryVap concentrator system allows testing facilities to:

• Save time and provide an increased level of productivity

• Improve recoveries

• Improve reproducibility

• Improve operator safety by reducing exposure to solvents

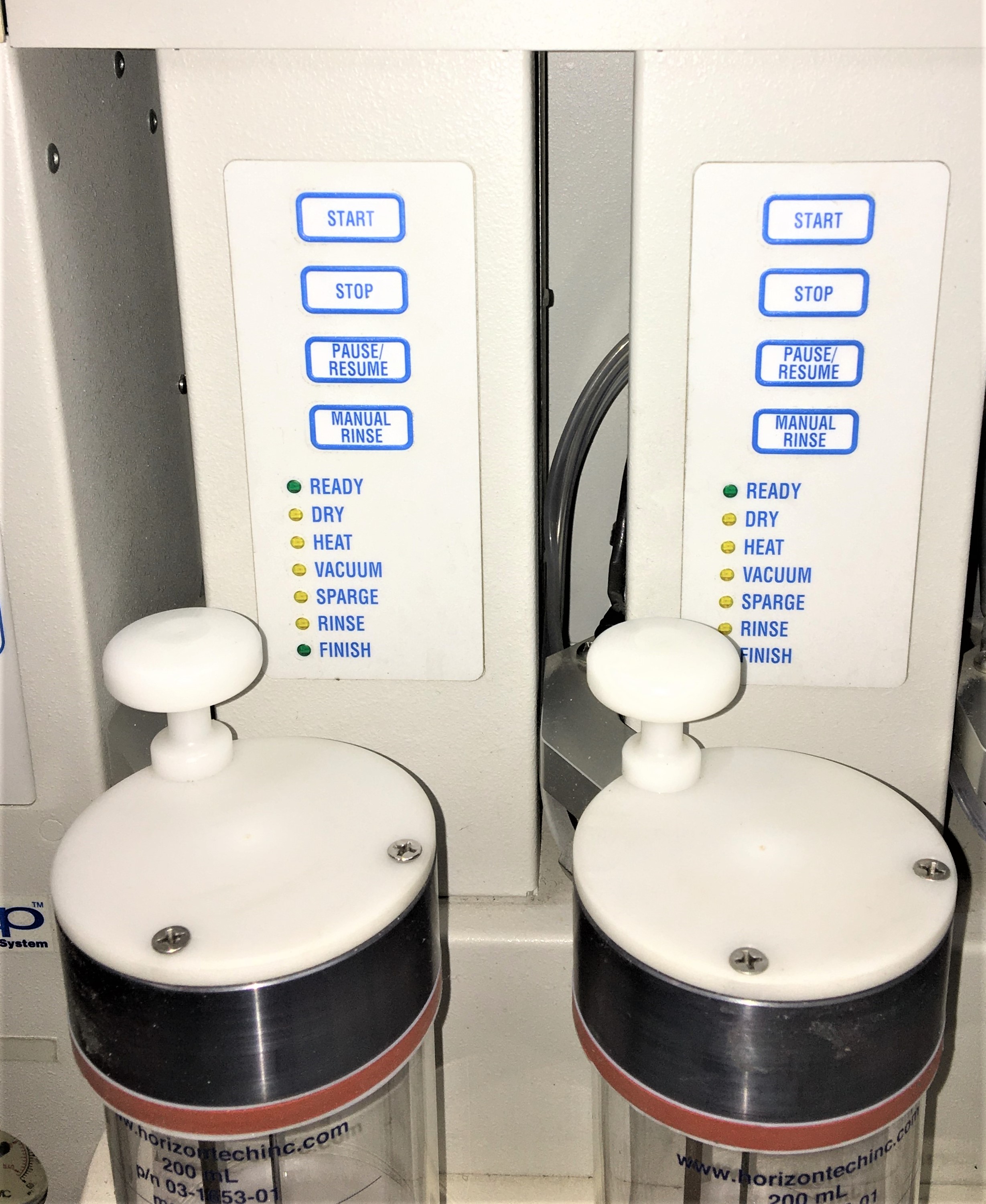

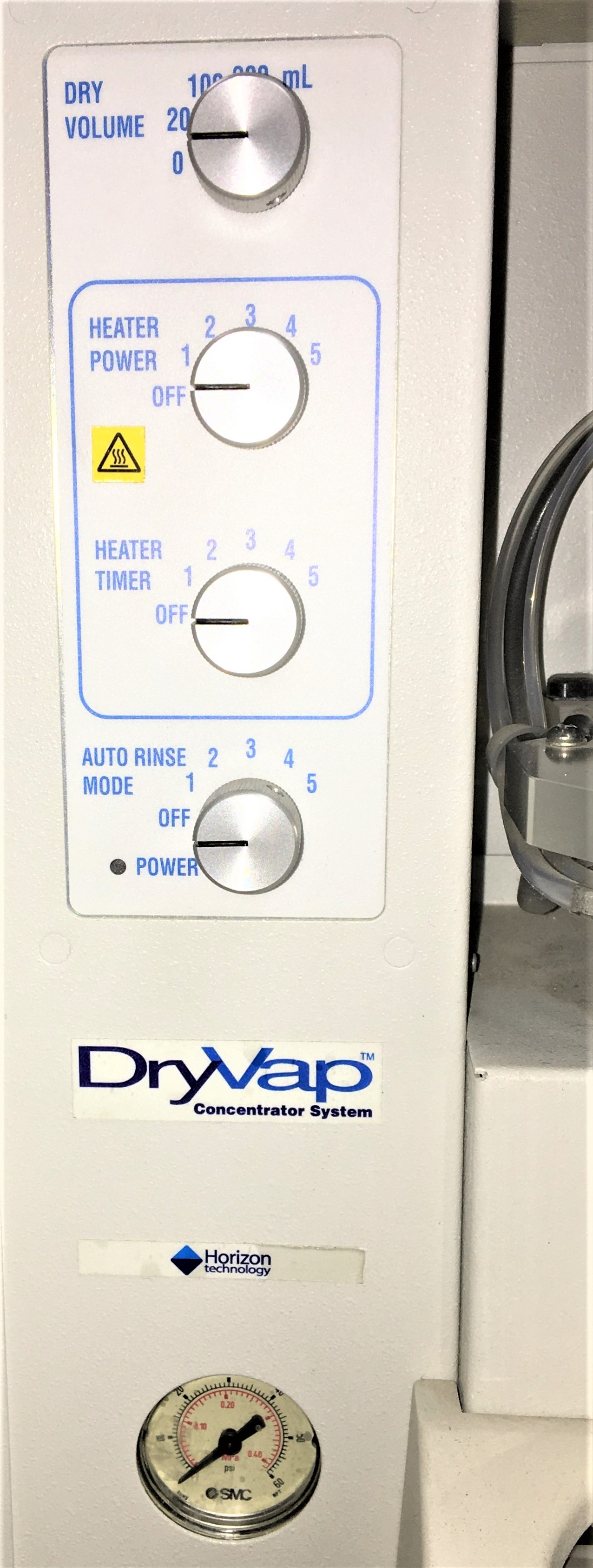

The DryVap’s master control panel is used to set the following drying and concentration parameters for the individual stations; dry volume, heater power, and heater timer. The master control panel has an additional feature for setting the Auto Rinse mode parameter. This feature allows the user the option to set an automatic rinse that will wash the concentrator tubes with solvent to maximize recoveries. Each station is also equipped with a station control panel for operating the individual stations. The station control panel includes the following features; Start, Stop, Pause/Resume, and Manual Rinse keys, along with a set of LED lights to indicate the current status for each station.

** SEE LINK TO MANUAL FOR MORE INFORMATION
