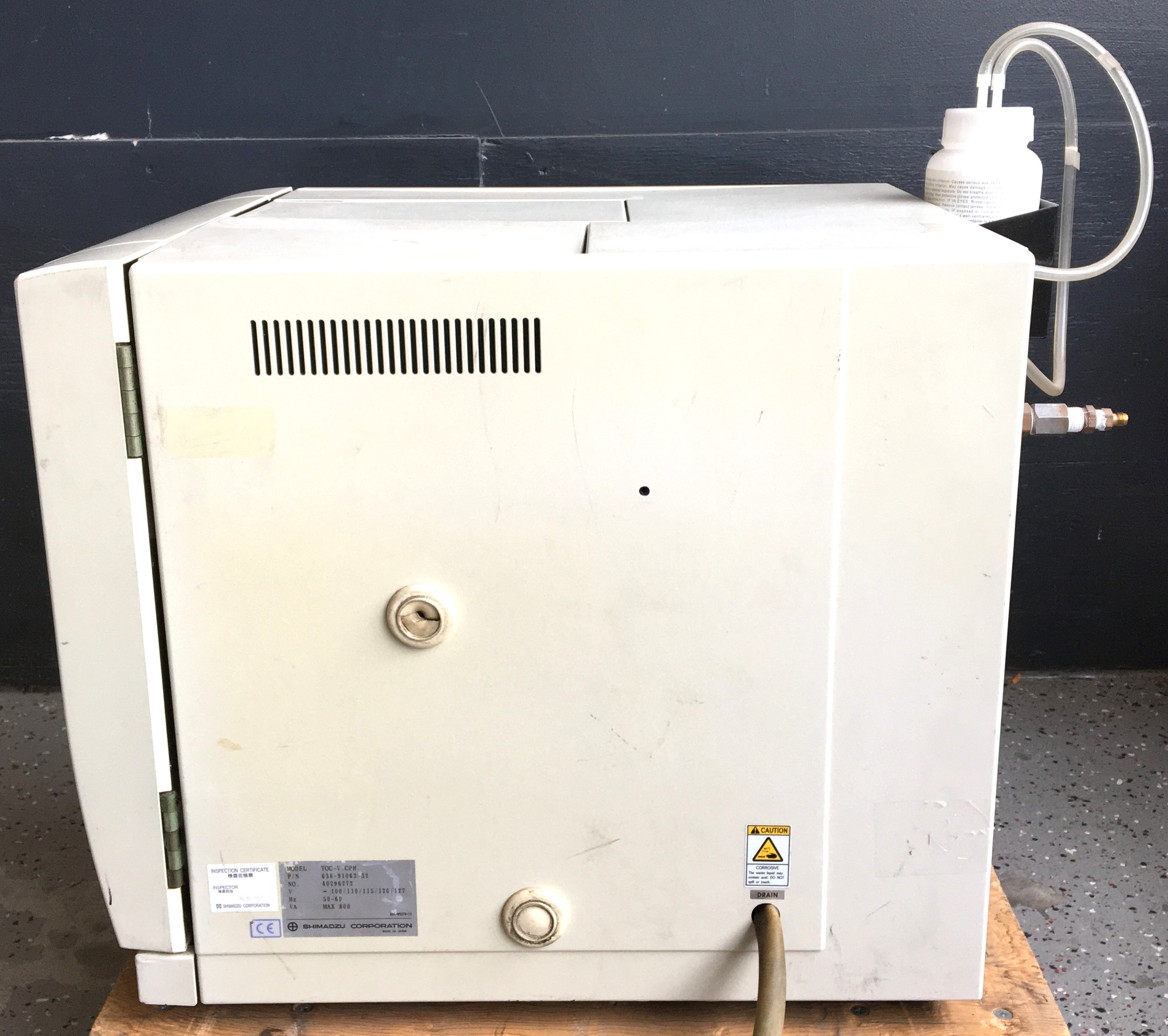

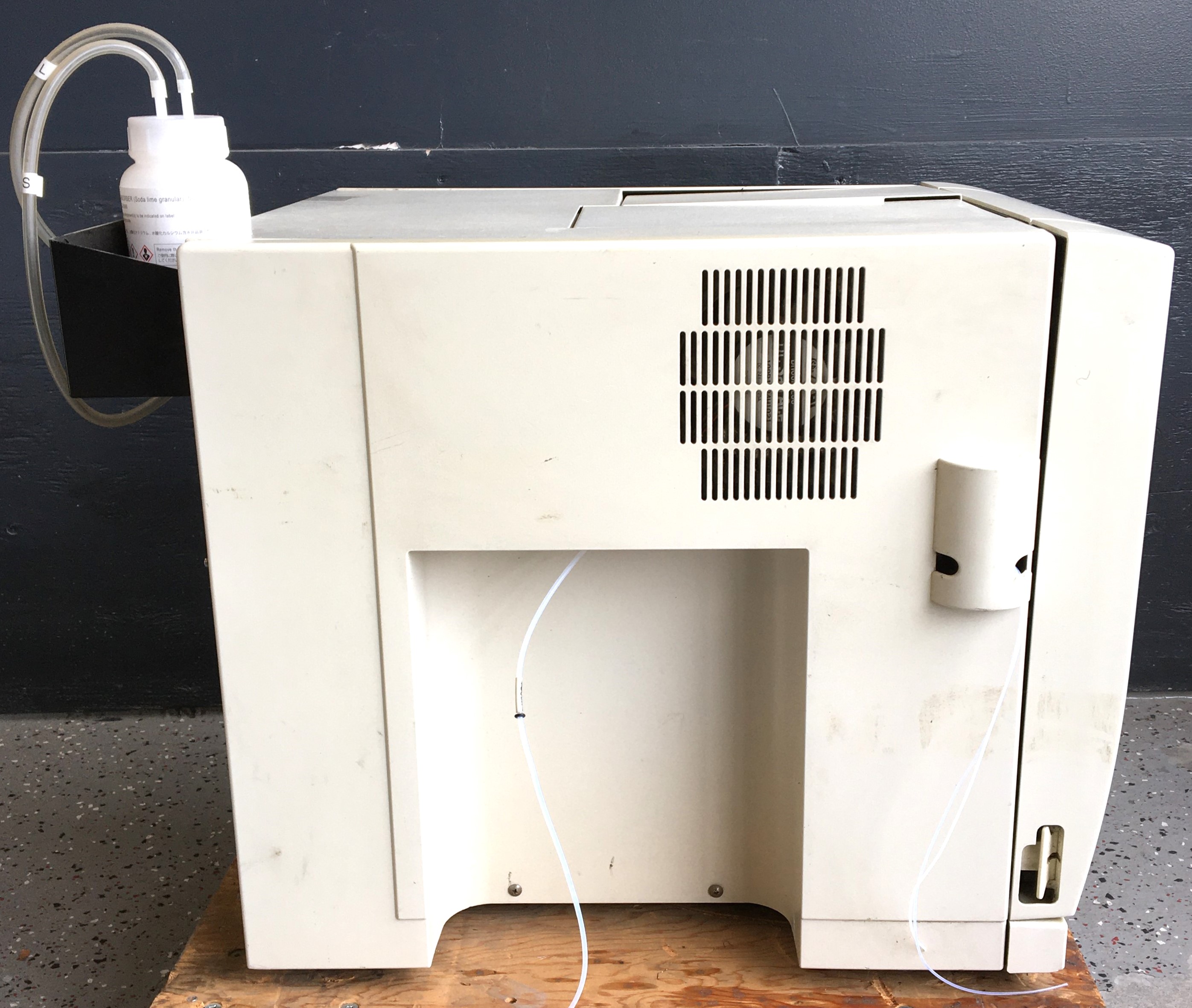

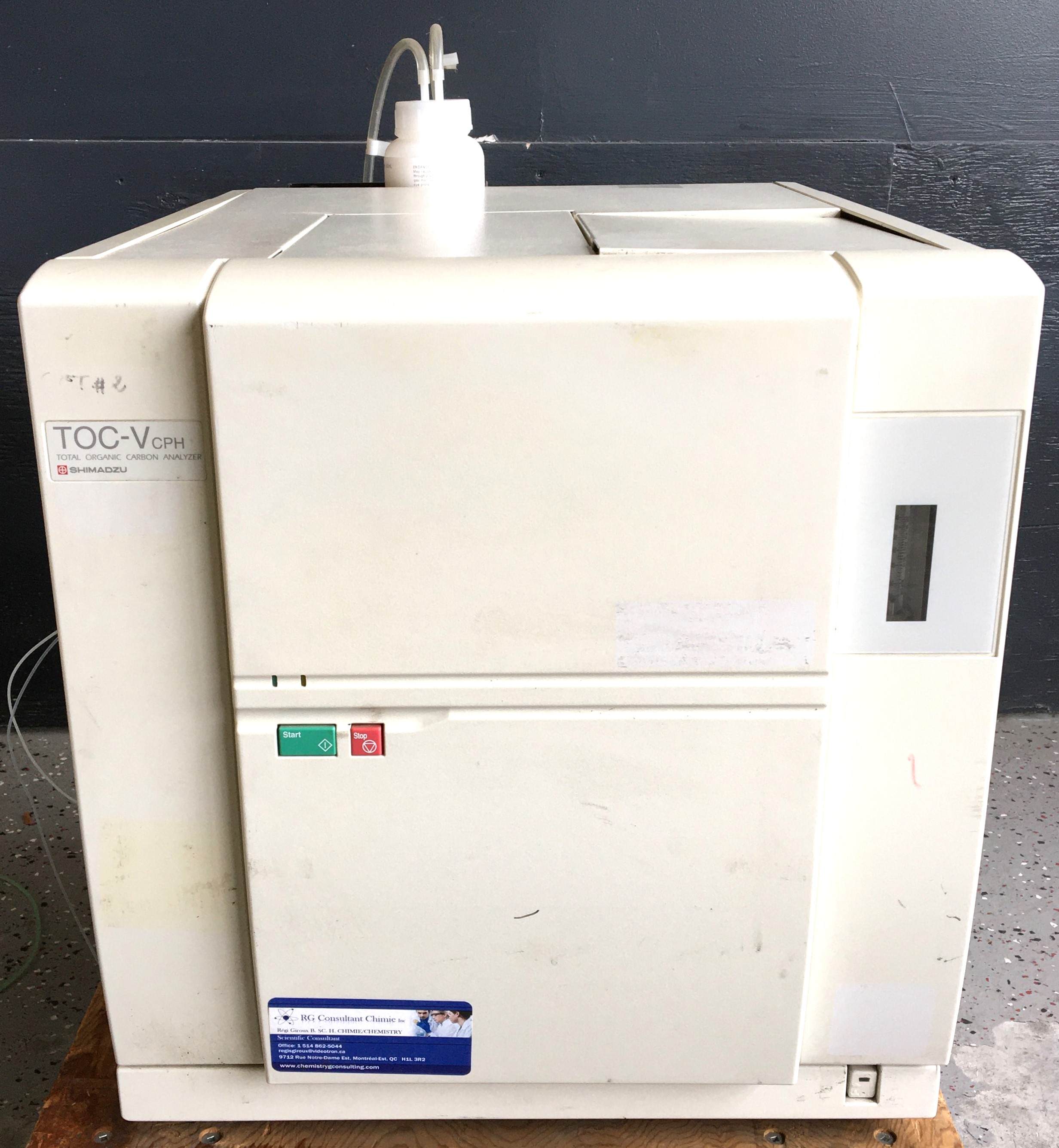

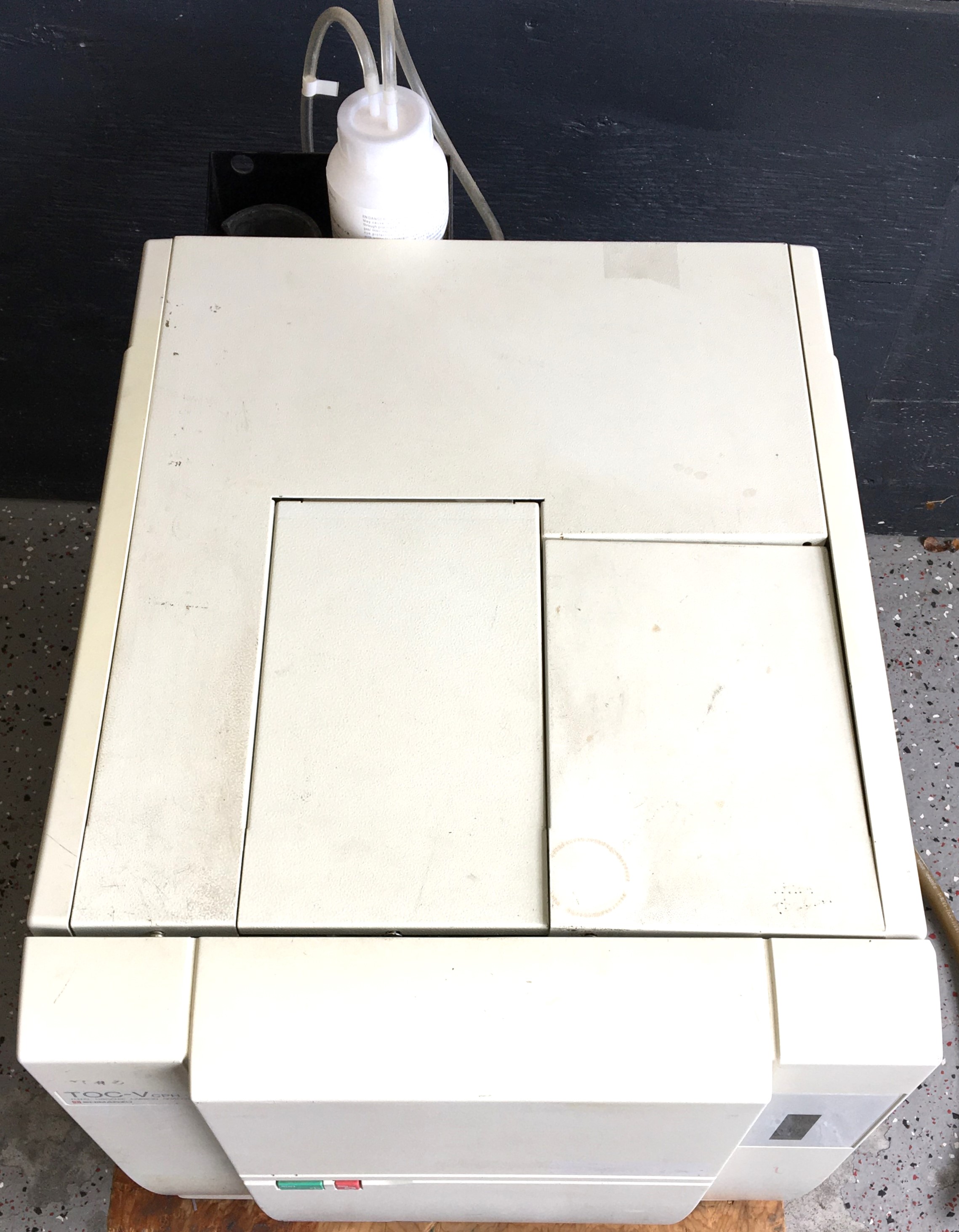

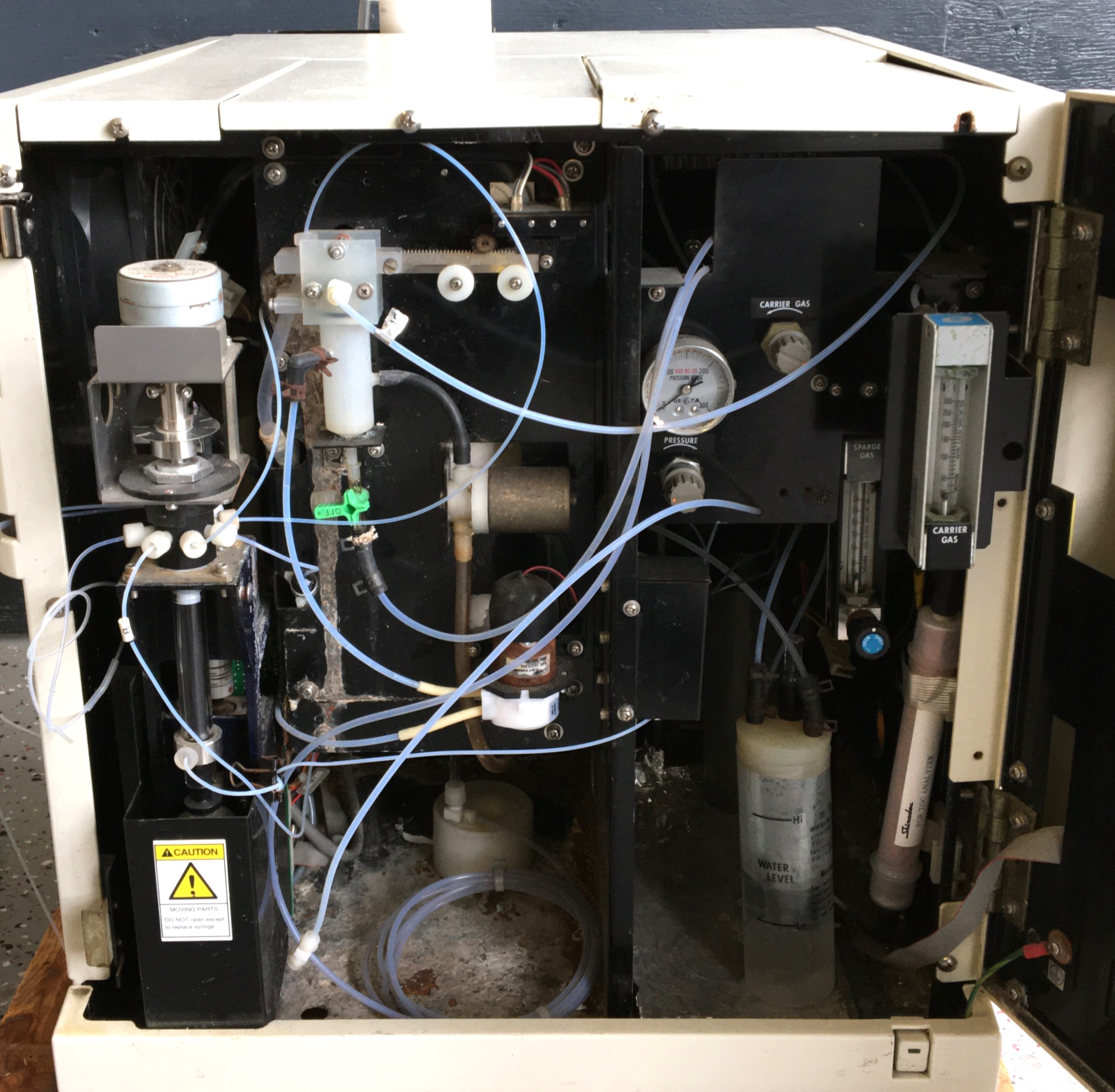

Shimadzu TOC-V CPH Analyzer with ASI-V Autosampler

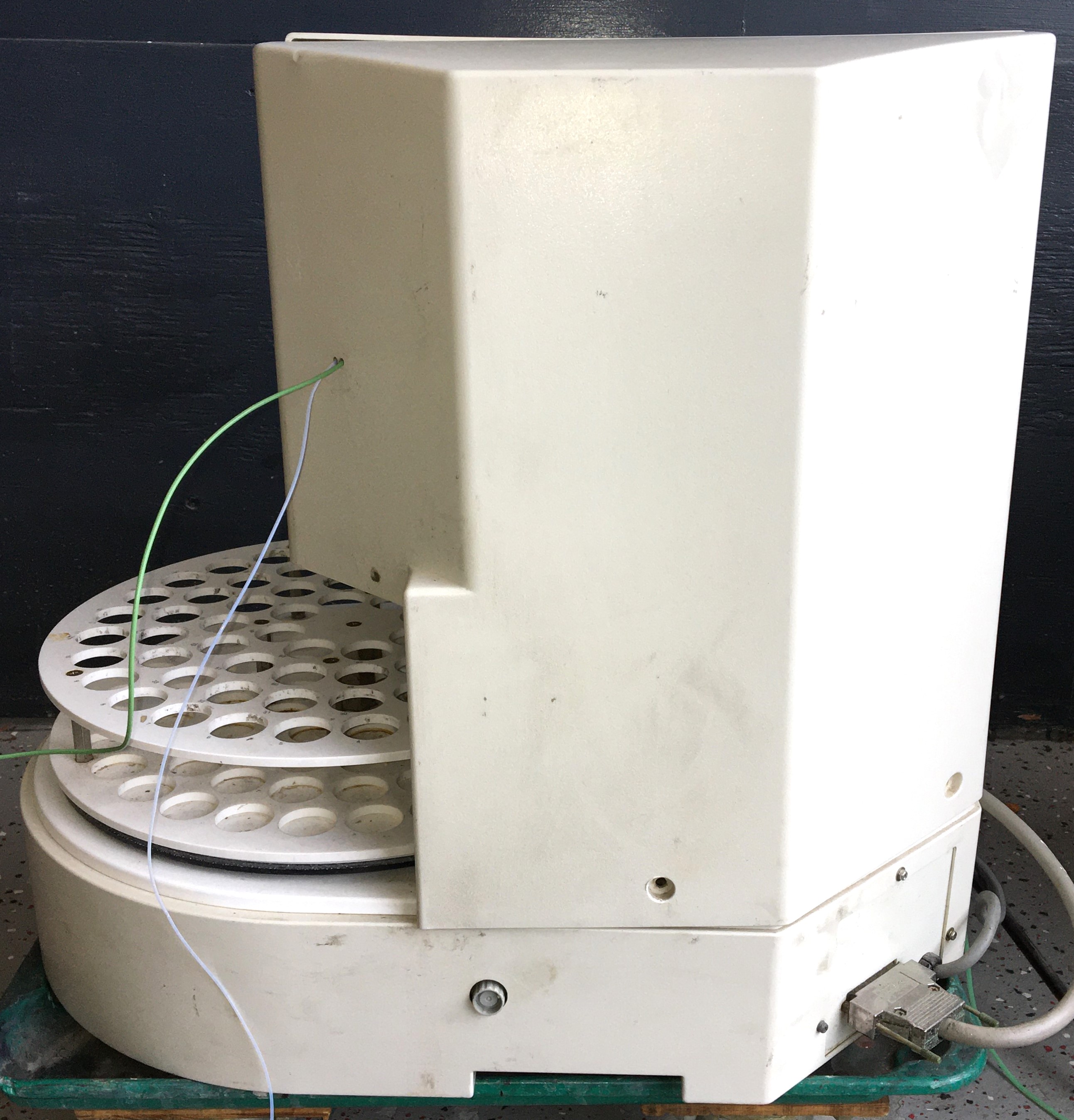

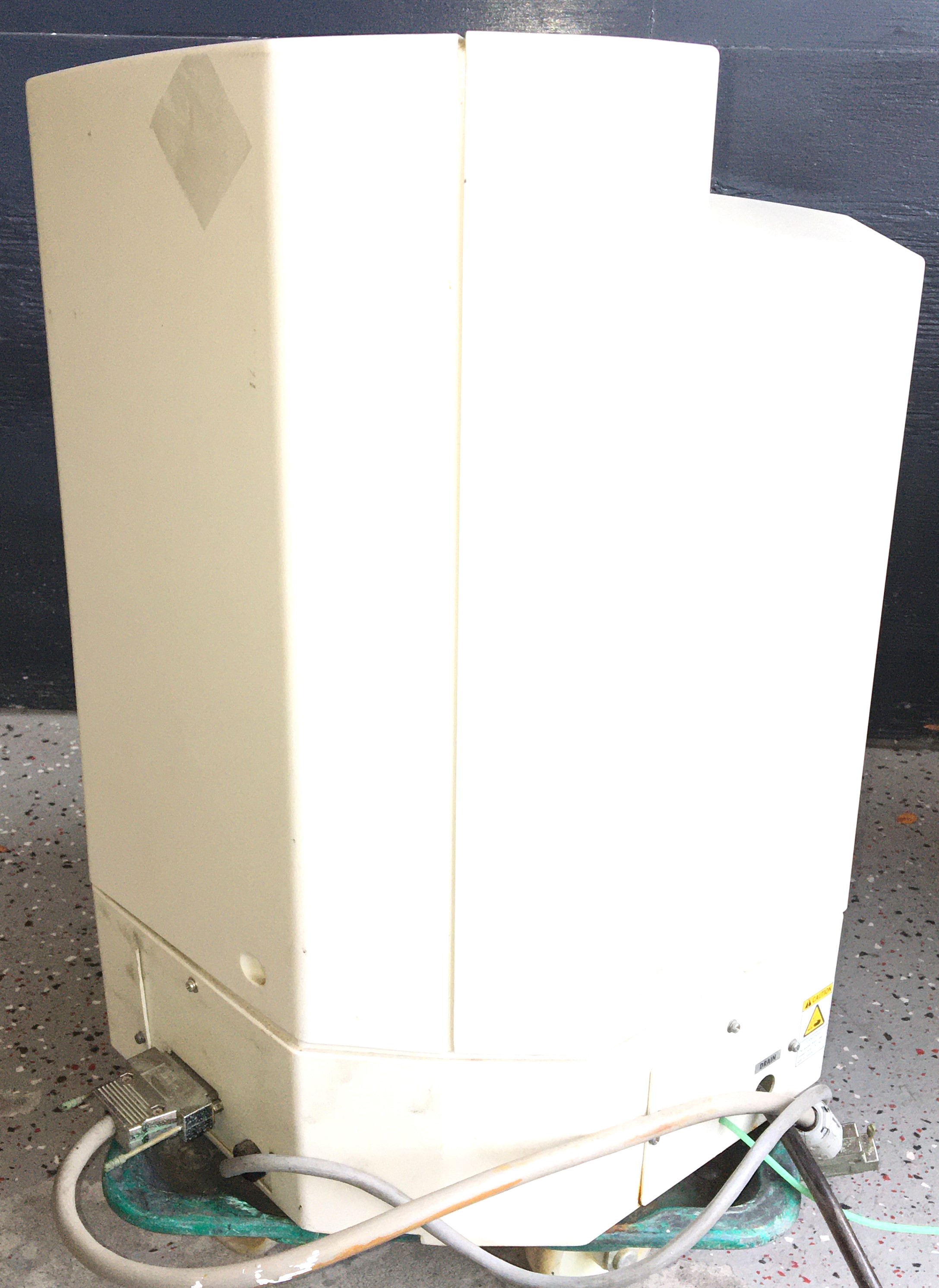

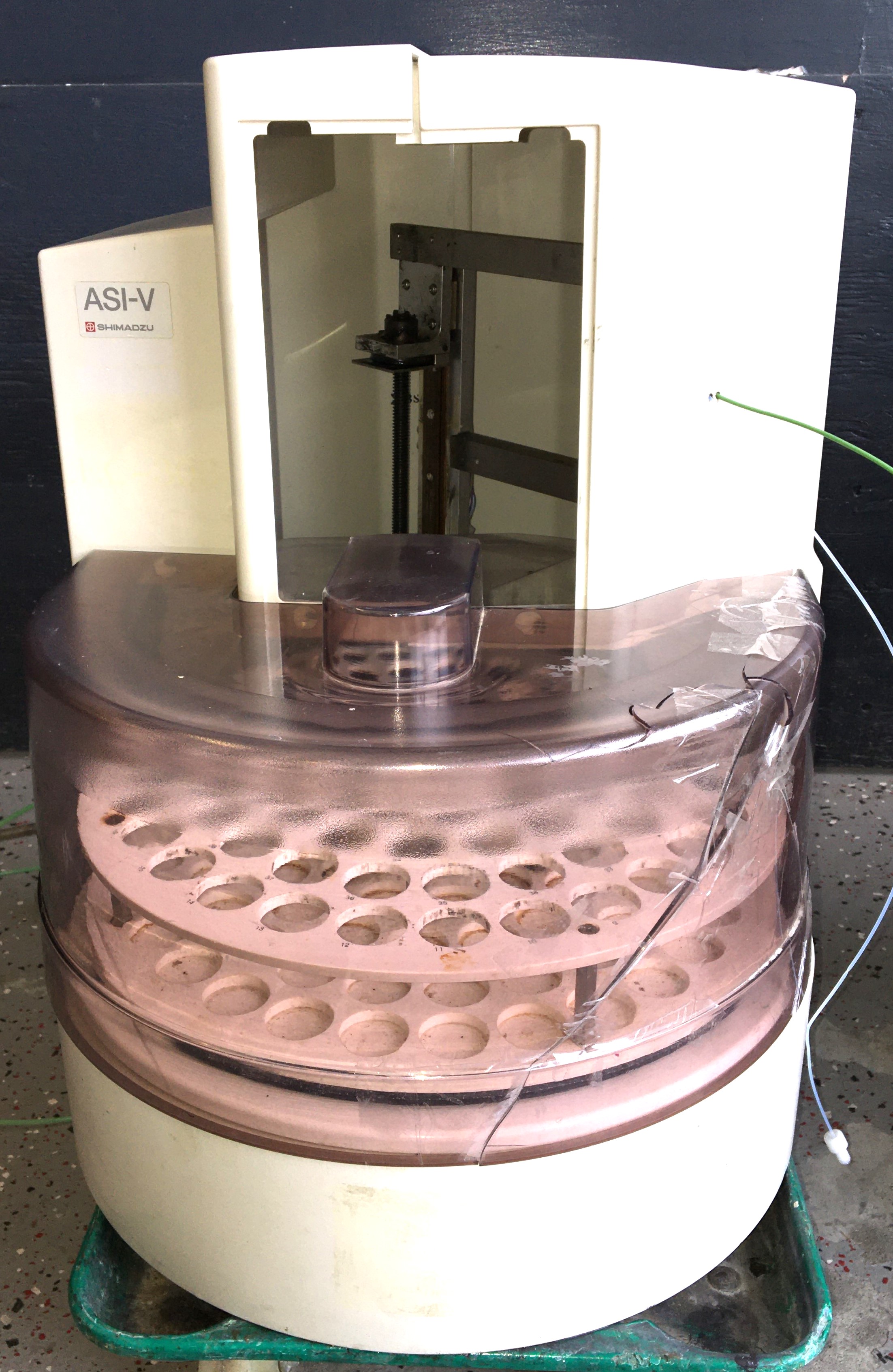

Combining the Shimadzu ASI-V automatic sample injector with a TOC-V Series analyzer creates a fully automatic analysis system

Three sample vial capacities are available:

24 mL vials x 93

40 mL vials x 68

125 mL vials x 24

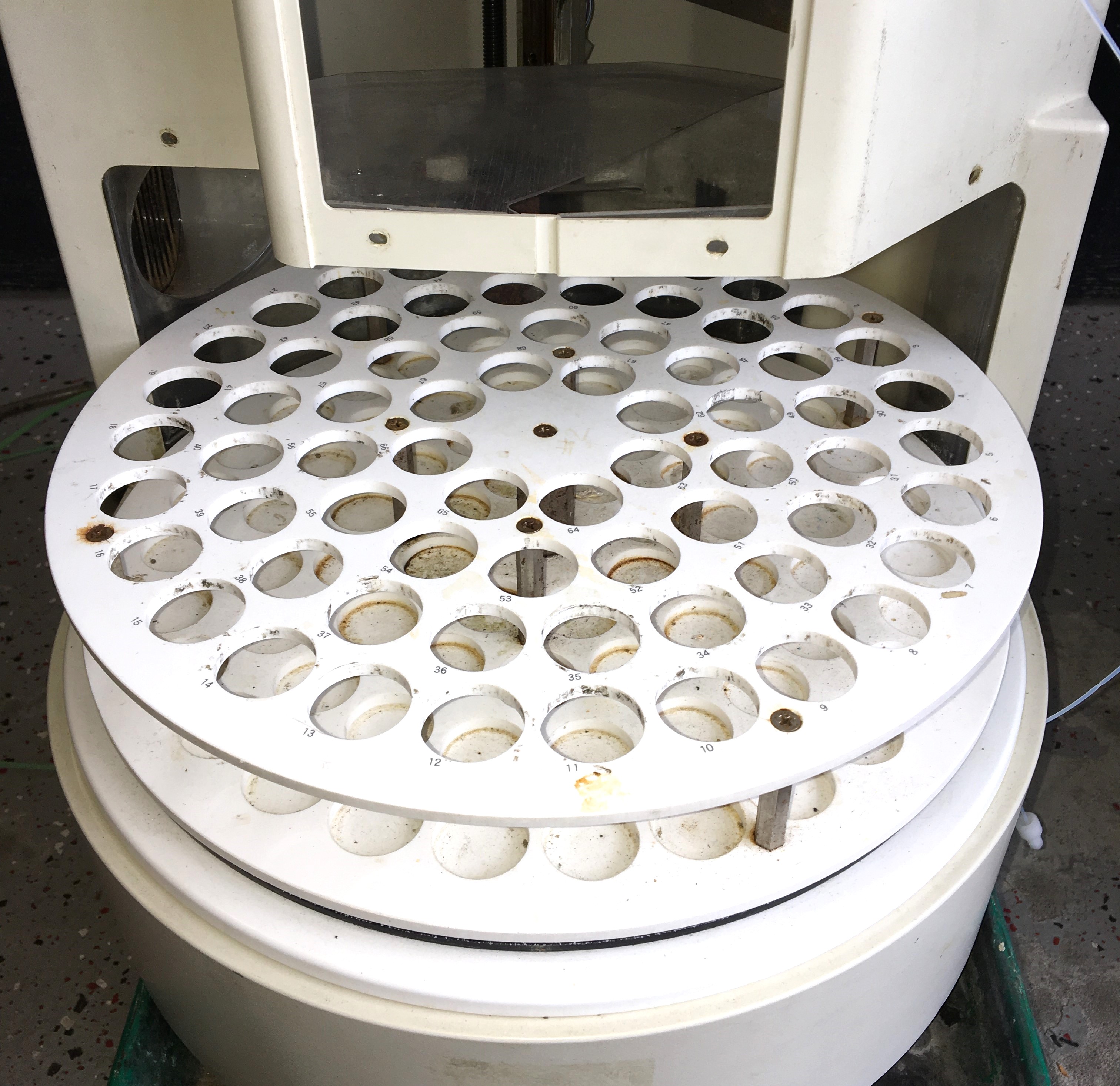

All three vial types have a well-sealed septum that can be easily replaced with the screw cap. The autosampler includes the 68-place tray to accommodate 40mL vials (vials are not included, but may be available separately - please inquire directly).

The sampling needle is optimized for sample extraction from highly sealed vials and for sparging. Changing analysis conditions or adding sample vials during analysis is simple. System operation and carrier gas flow can be automatically stopped on completion of measurements.

Creating multiple calibration curves and selecting the optimal curve for samples with significantly differing concentrations allows these samples to be analyzed in a single run

Rinsing both external and internal surfaces of the sampling needle prevents carryover between samples.

Measurement range (mg/L): TC:0 to 25000; IC:0 to 30000

Detection limit:  4µg/L

Sample injection volume: 10 to 2000µL variable

Gas consumption: approx. 1440 L/month

NOTE: This system includes a copy of TOC-V Control software.

** SEE LINKS TO BROCHURE AND MANUAL FOR MORE INFORMATION
