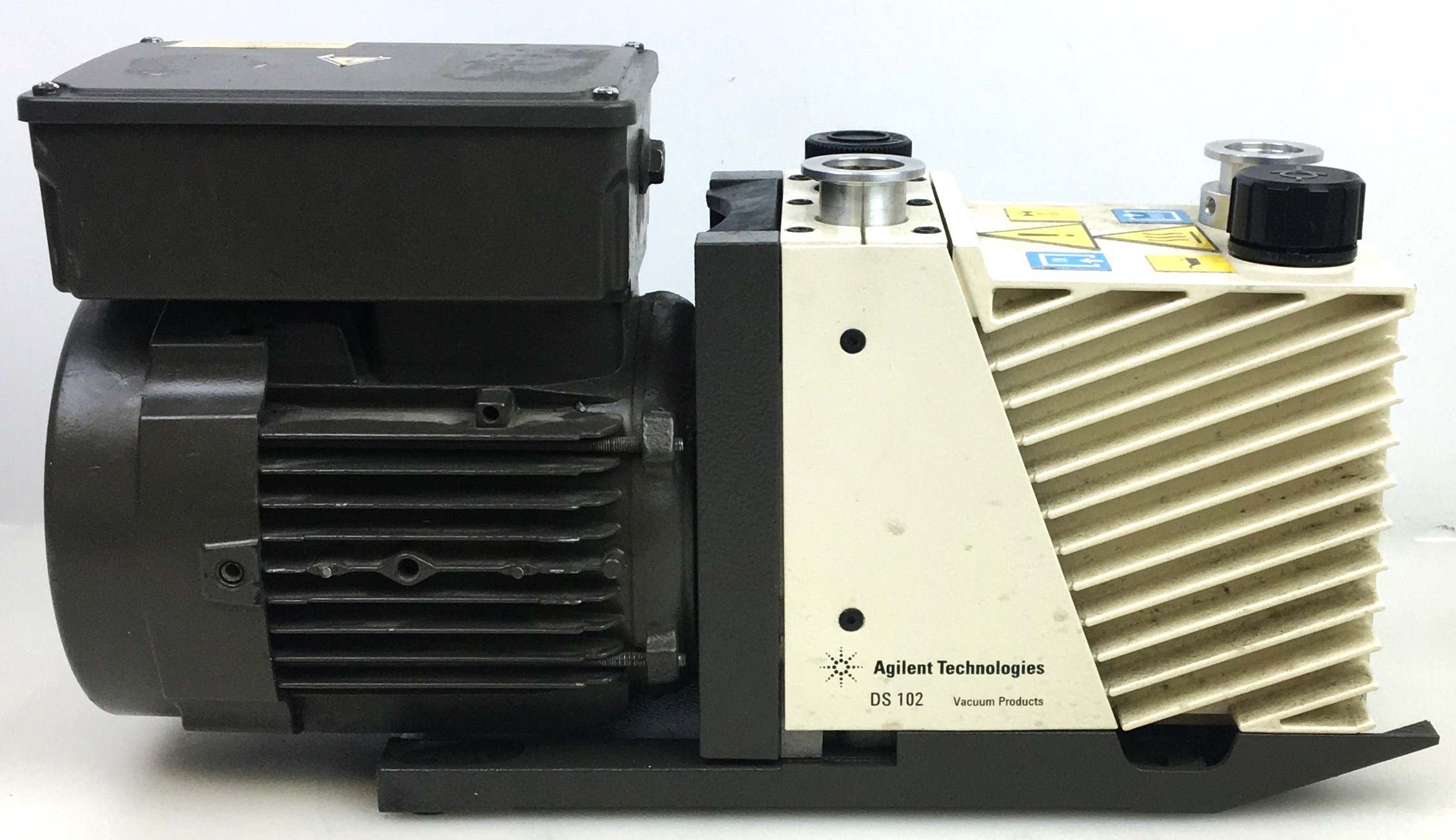

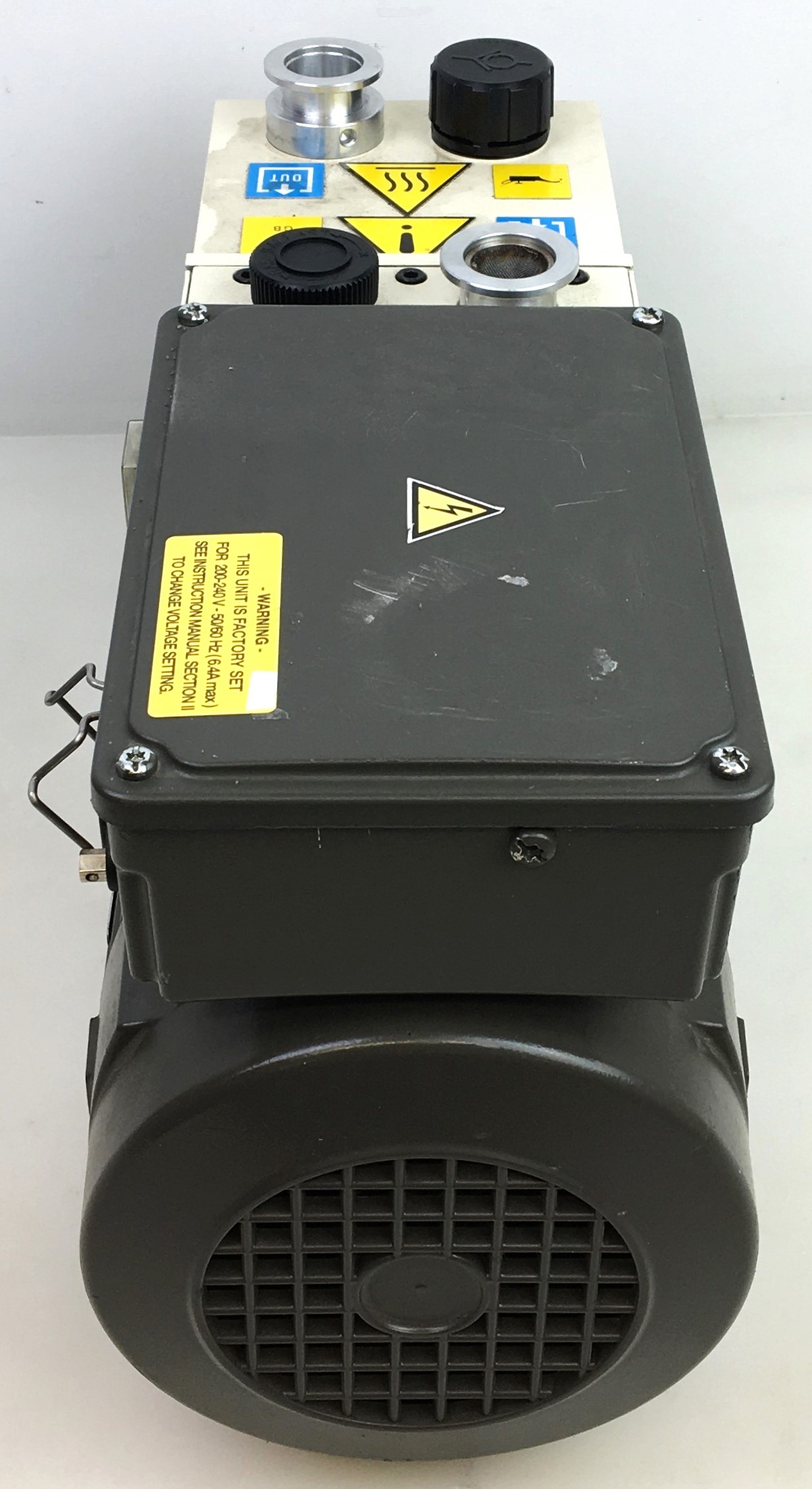

Agilent DS 102 Rotary Vacuum Pump (3.5cfm)
![Used Agilent DS 102 Rotary Vacuum Pump (3.5cfm)](https://i.machineryhost.com/806beafe154032a5b818e97b4420ad98/e75867c4e47e5dd7ed91642981cf3a4a/large-used-agilent-ds-102-rotary-vacuum-pump-3-5cfm.jpg)
Agilent DS 102 Rotary Vacuum Pump (3.5cfm)
Available quantity:2
Description
The DS 102 is a dual-stage oil-sealed rotary vane pump that delivers a pumping speed of 5.0 m3/hr at 50 Hz, or 3.5 CFM at 60 Hz, with a base pressure of < 2 x 10-3 mbar. The DS 102 has a universal-voltage single-phase electric motor with integral power switch.
An inlet isolation valve is integrated into the pump to close off the inlet port whenever power to the pump is interrupted. This antibackstream valve retains vacuum in the roughing, or foreline, and prevents pump oil from contaminating the vacuum chamber. The DS 102 has a manual gas ballast valve, which when opened, allows the pump to achieve its rated water vapor handling specification.
NOTE: Return policy / warranty does not cover misuse and/or exposure to contaminants.
Price is for one pump.
** SEE LINK TO MANUAL FOR MORE INFORMATION
Specifications
Manufacturer | Agilent SpA |
Model | DS 102 |
Year | 2022 |
Condition | Used |
Serial Number | MY2331RA13 and IT1350A315 |
MPN | 949-9315M008 |
Condition Description | IN GOOD WORKING ORDER |
Number of stages | Dual Stage |
Maximum flow rate | 3.5 cfm |
Electrical Requirements | 120/208-240V, 50/60hZ, 0.7kW, 1 phase |
Electrical Certification / Approval | CSA |
Dimensions | 18"L x 7"W x 10"H |
Weight (lbs) | 50 |
Country/region of manufacture | Malaysia |
Custom Label | J1 |
