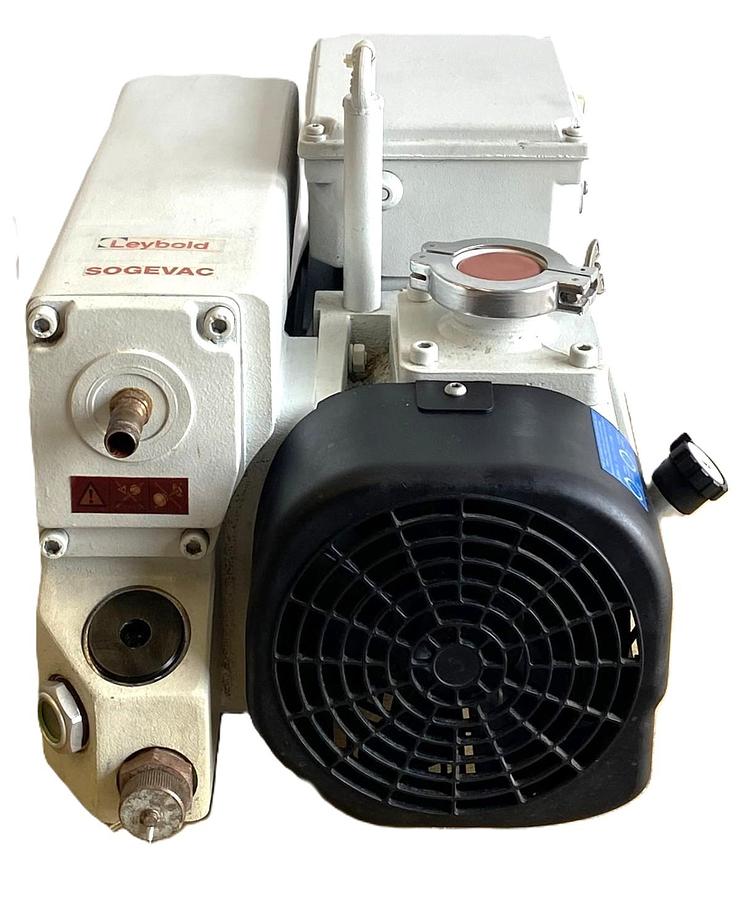

Oerlikon Sogevac SV40 BIFC Rotary Vacuum Pump (22.7 / 27.7 cfm)

The Sogevac SV40 BI pump is a single-stage oil-sealed rotary vane vacuum pump. The rotor, having three slots in which the vanes are sliding, is eccentrically installed in a pump cylinder (stator). The vanes separate the interior space into 3 chambers. The volume of these chambers varies with the rotation of the rotor. The gas sucked into the inlet chamber is compressed and then pushed out at the exhaust valve.

The oil injected in the inlet chamber guarantees the air-tightness, the lubrication and cooling of the pump. It is dragged off by the compressed gases and roughly separated by gravity when entering in the oil sump. A fine separation is then operated in the exhaust filter. An internal transfer pushes the collected oil back into the vacuum generator, the transfer is operated by a float valve to avoid atmospheric air coming from the oil casing to the inlet of the pump when no oil is present in the recovery system. The oil circulation functions by differential pressures.

The anti-suckback valve at the inlet flange avoids oil coming back into the inlet line when the pump is stopped. This is valid for working pressures below 100 mbar and under the condition that the valve is kept clean and in good condition. The anti-suckback valve is not a safety valve. If oil back flowing is to be avoided by all means, it is necessary to mount a separate safety valve on the pump inlet.

Ultimate pressure: < 1.1 Torr

Inlet Connection: KF-25

Outlet Connection: NPT 1.25" inside thread

NOTE: Return policy / warranty does not cover misuse and/or exposure to contaminants.

** SEE LINKS TO BROCHURE AND MANUAL FOR MORE INFORMATION
