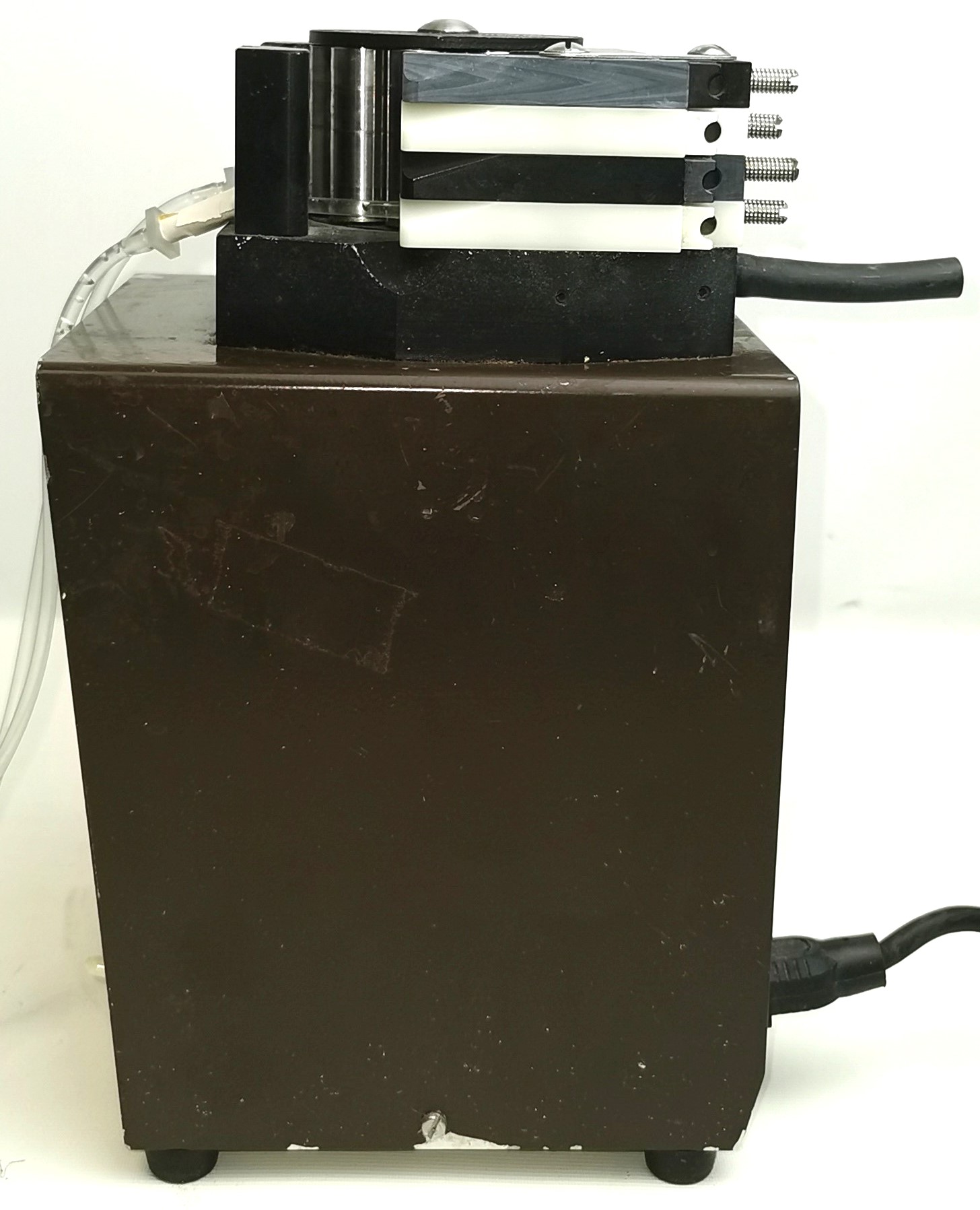

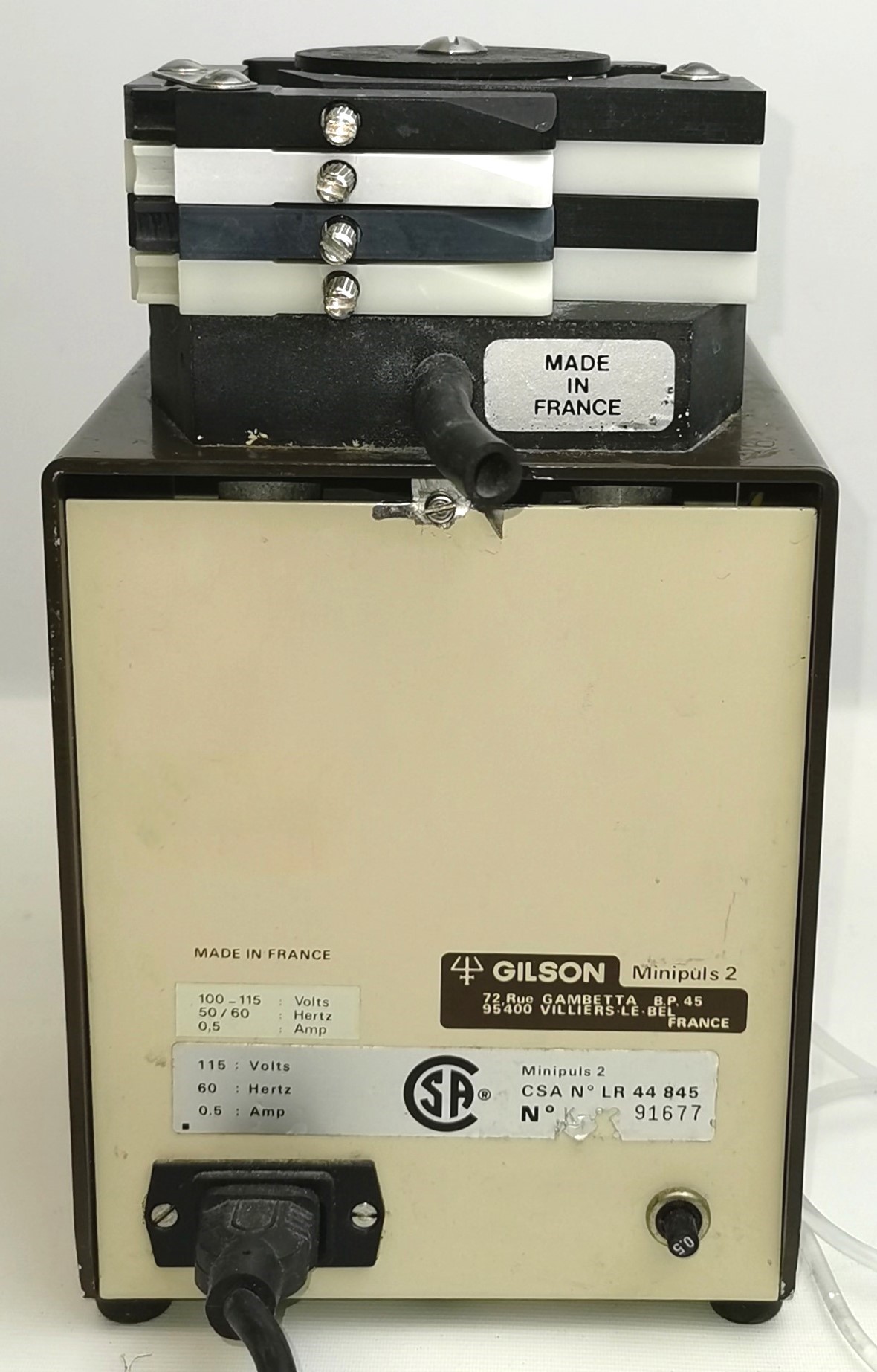

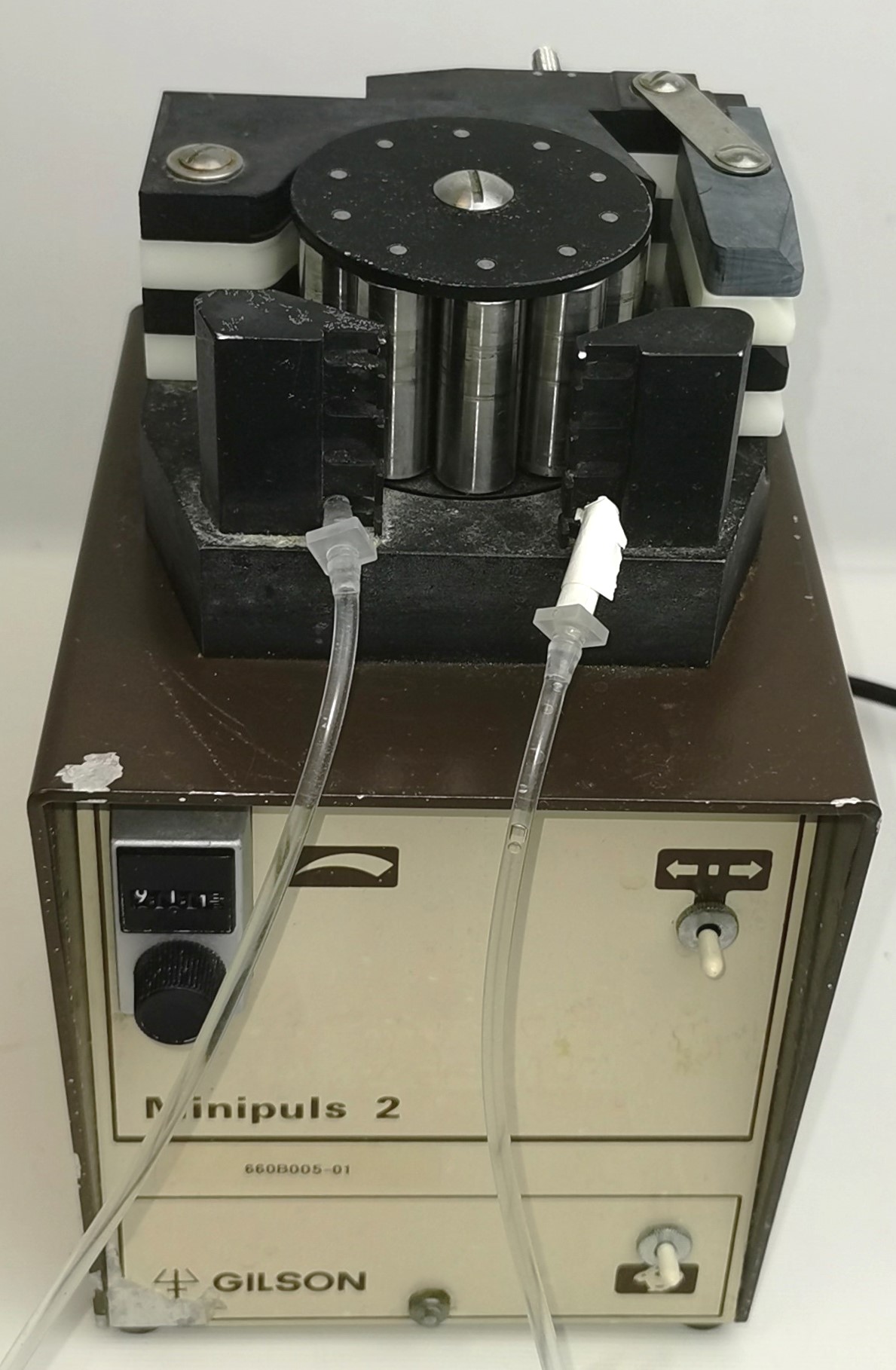

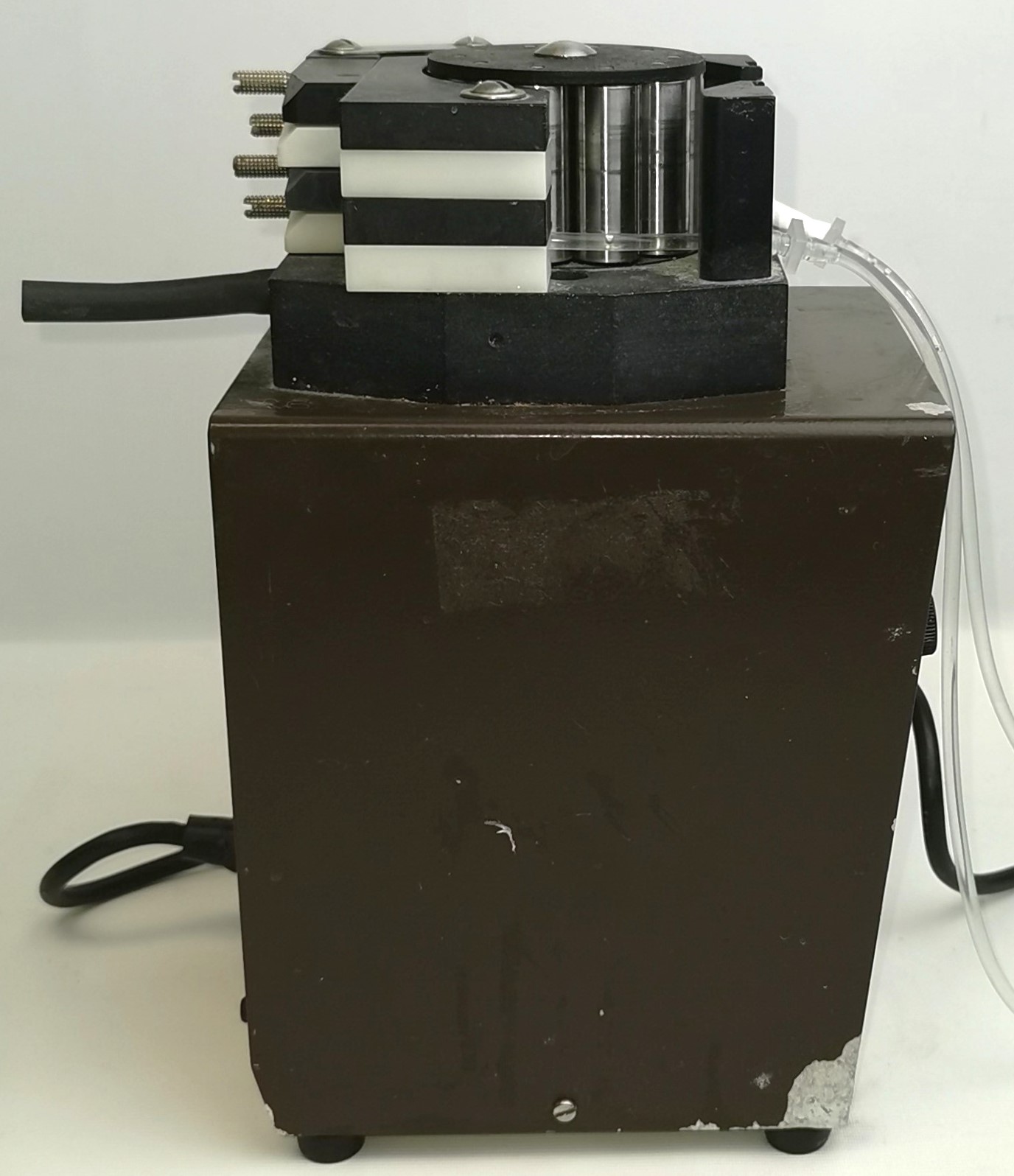

Gilson Minipuls 2 Peristaltic Pump

The Gilson Minipuls 2 peristaltic pump is specifically designed to meet process laboratory liquid handling needs. It combines microprocessor speed control with a high-torque stepper motor. Pump head is capable of continuous adjustment from 1-25 RPM. Minipuls 2 pumps are designed to transfer liquids by peristaltic motion. They have been particularly designed for the following applications:

- transferring solutions, emulsions, suspensions and gases up to 200°C.

- supplying chromatographic columns and all other hydraulic apparatus to a maximum pressure of 5 bars.

- automation of biological analysis by proportional mixing of a sample and several reagents.

- continuous sampling of elements involved in a production process (eg fermenters, reactors, etc.)

- formation of concentration gradients pH gradients, etc.

Specifications:

Pressure: 5 bars

Flow Rate: 0.5 to 1300 mL/hr, depending on tubing (not included)

Flow Range: Standard: .02 to 22 mL/min continuously adjustable

                      High Flow: 1 to 100 mL/min continuously adjustable

Standard and High Flow Speed: 1 to 25 RPM continuously adjustable, override to 36 RPM

Standard and High Flow Speed Stability: 1.5% of full range

Back Pressure Resistance: Standard: to 5 kg /cm ² (71 psi)

                                            High Flow: to 3 kg/cm ² (42 psi)

Number of Rollers per Head: Standard: 10

                                               High Flow: 5

Power Demand: All channels: 60 watts

Operating Temperature: All Channels: 1 to 40°C

** SEE LINK TO SIMILAR MODEL FOR MORE INFORMATION
