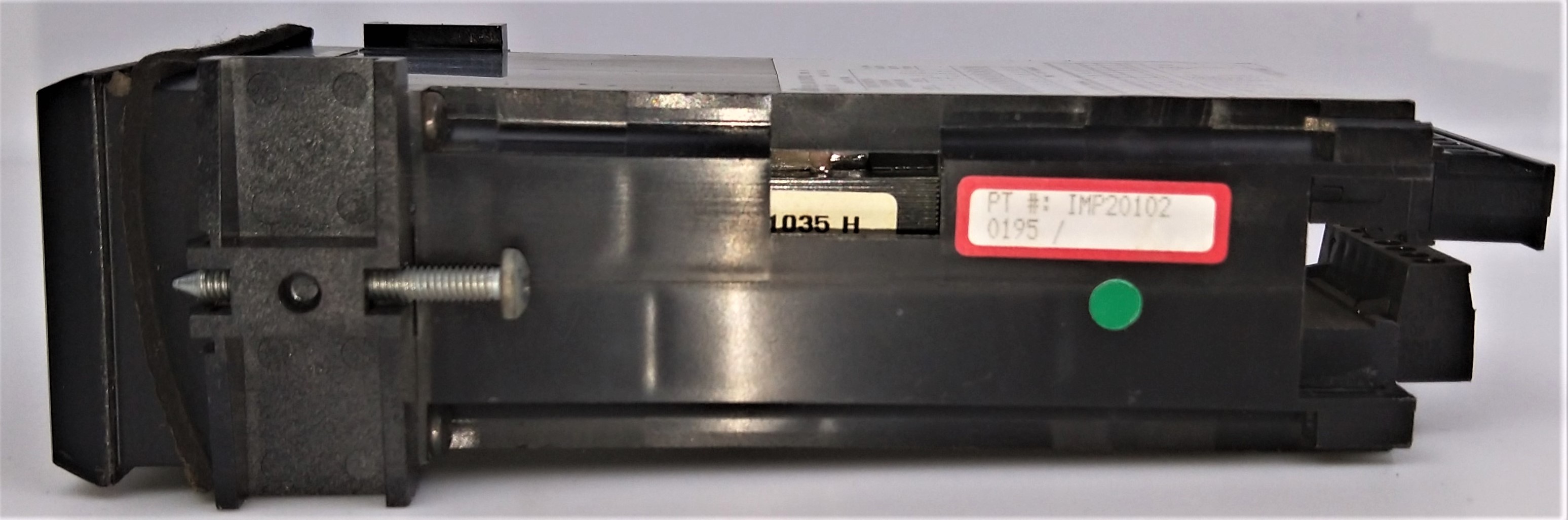

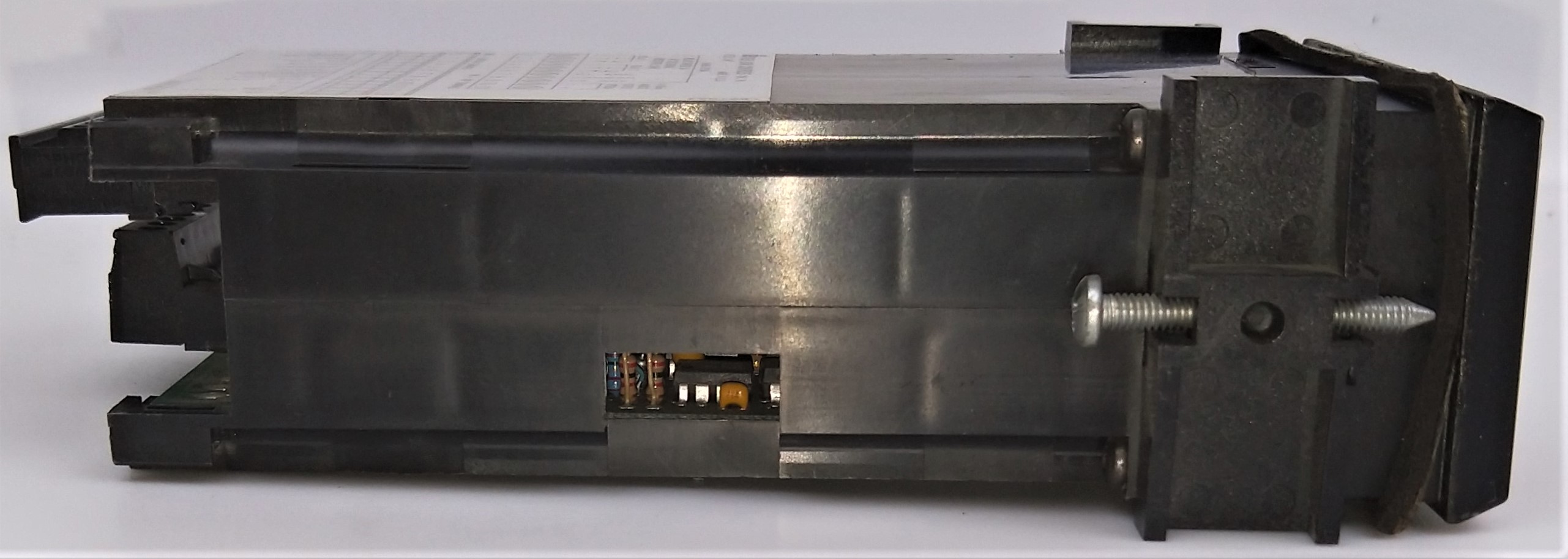

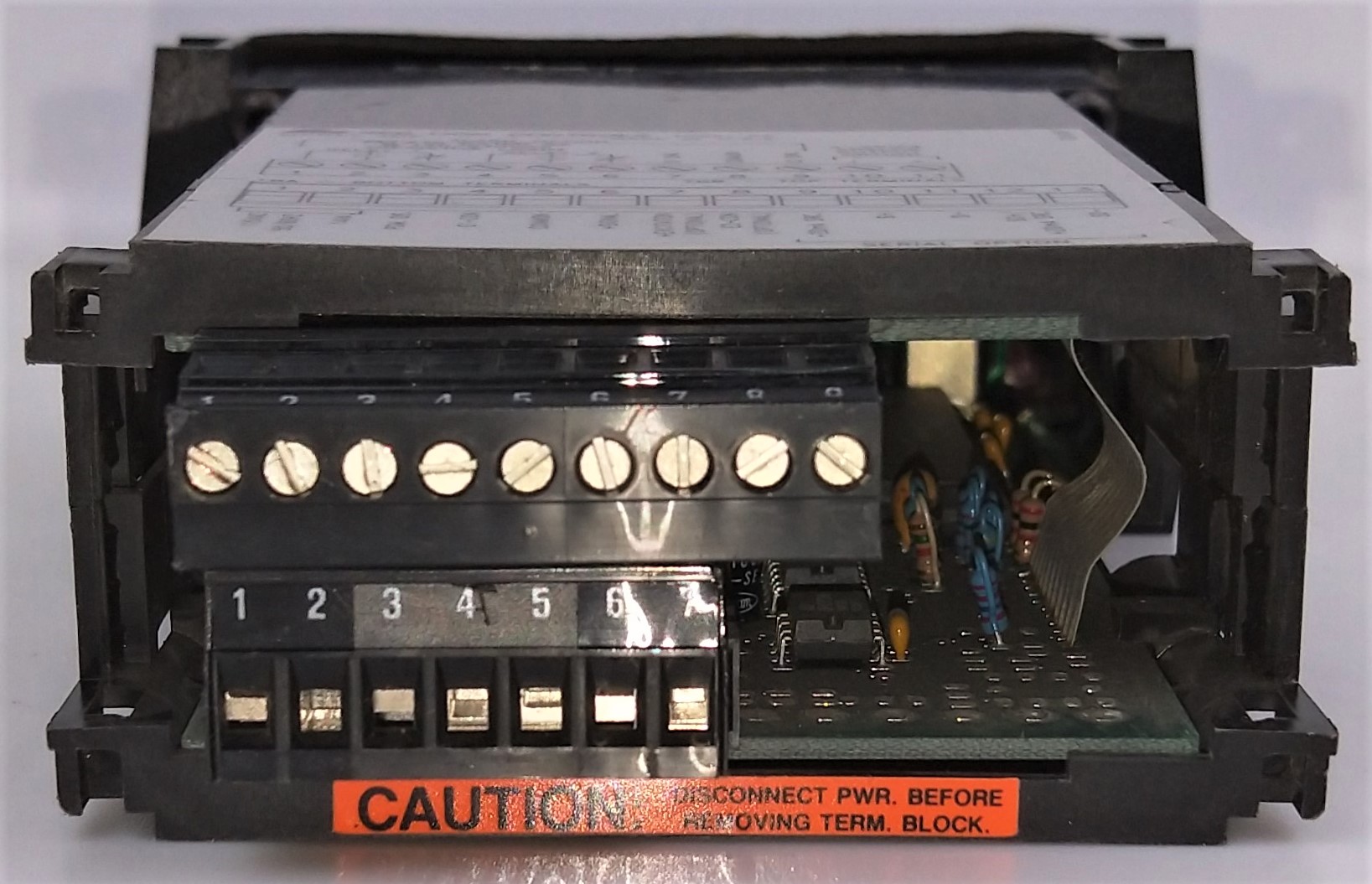

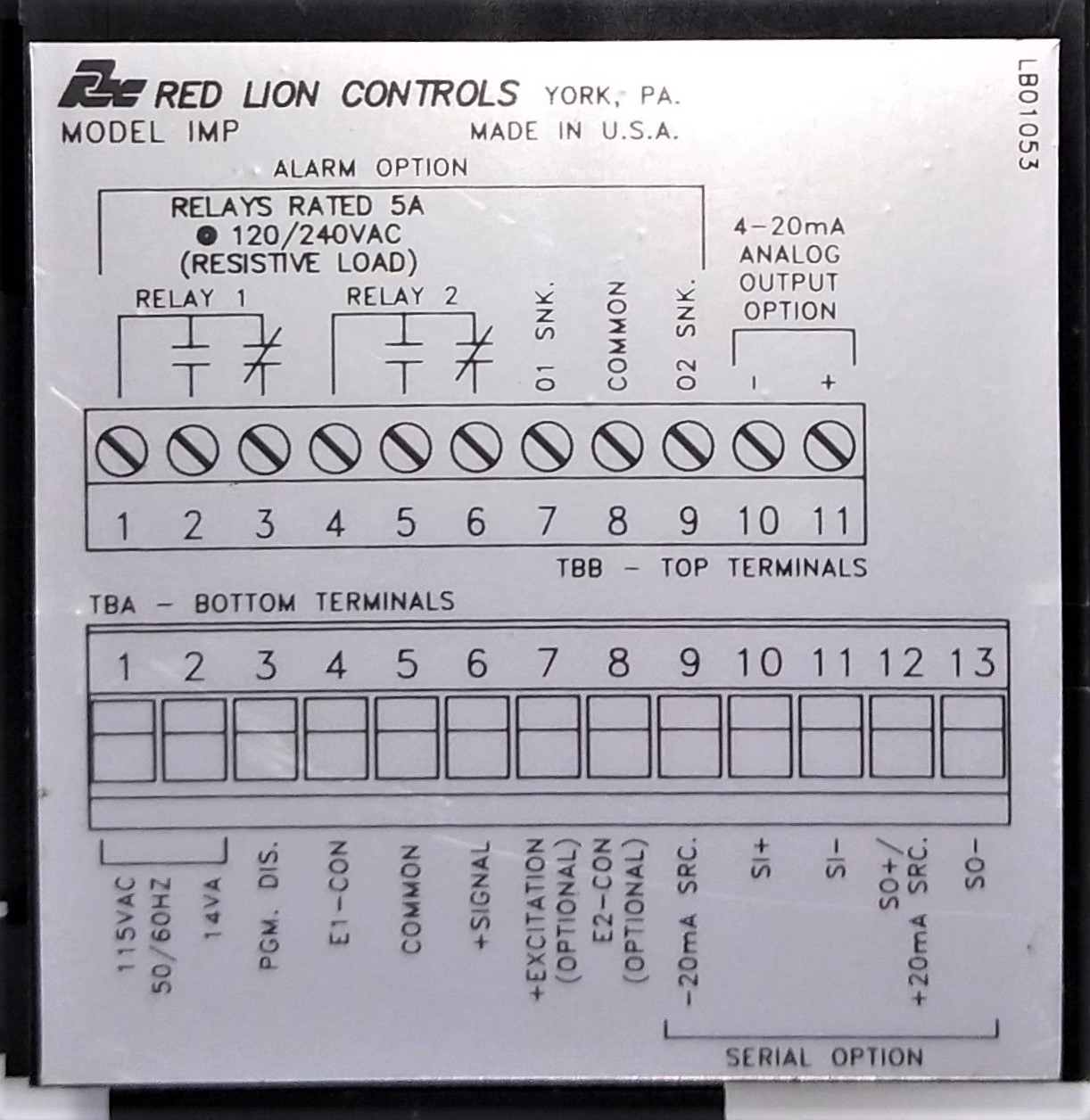

Red Lion Apollo Intelligent IMP Totalizing Display Process Meter

The Apollo Intelligent Process Meter accepts standard process signals and precisely scales them into engineering units. One model covers any current range within 0 to 50 mA. A full 6-digit display accommodates nearly any engineering units and holds large totalization values. State-of-the-art digital circuitry virtually eliminates errors due to drift. A full complement of option packages are available to fulfill many process applications.

The indicator features a choice of two different scaling procedures which greatly simplifies initial set-up. English Style display prompts and front panel buttons aid the operator through set-up and operation. A front panel lock-out menu protects set-up data and operation modes from unauthorized personnel. Programmable digital filtering enhances the stability of the reading. Programmable remote input “E1-CON” pin can be utilized to control a variety of functions, such as totalizing, alarm control, display hold or tare operations. All set-up data is stored in E2 PROM, which will hold data for a minimum of 10 years without power.

** SEE LINKS TO DATASHEET AND MANUAL FOR MORE INFORMATION
